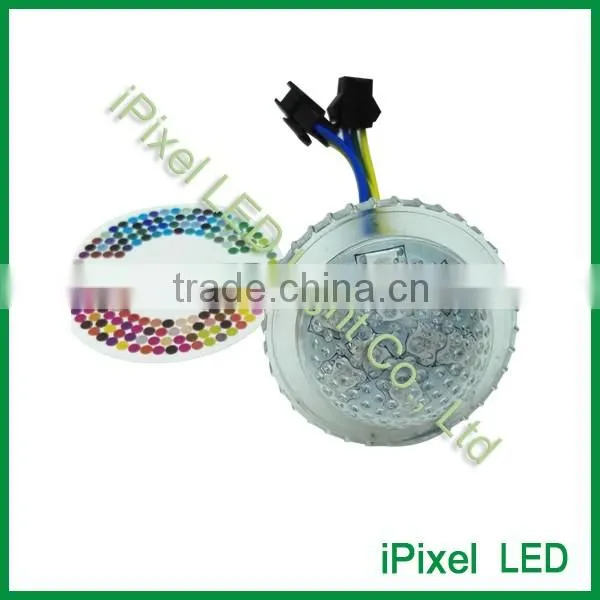

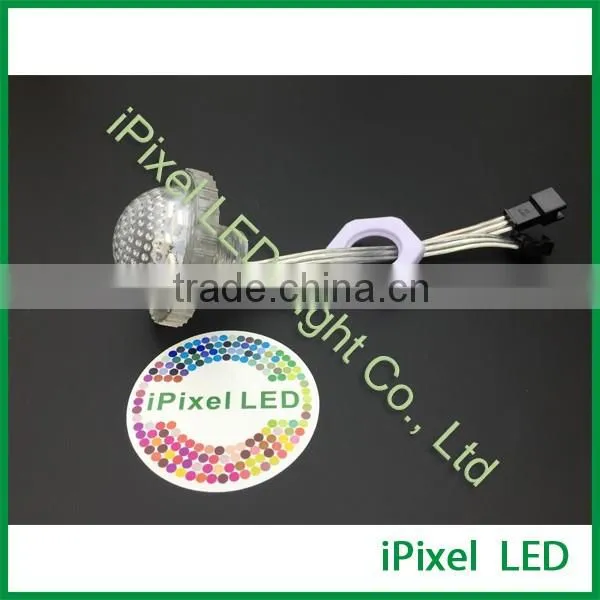

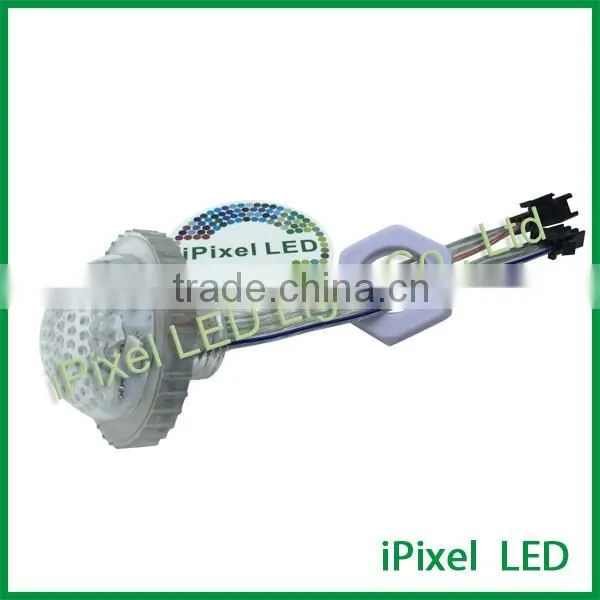

Help CenterDc24v Round 35/38mm Led Digital Pixel With 19mm Hole
Related Products
-
Point Pixel Dip8mm Exposed Bullet Lamp Ws2811US$ 0.1 - 0.39MOQ: 1 Piece -
26mm Ucs1903 3leds DC12v Point Pixel LEDUS$ 0.5 - 0.7MOQ: 1 Piece
-
26mm Ucs1903 3leds DC12v Transparencyshell Point Pixel LEDUS$ 0.5 - 0.7MOQ: 1 Piece
-
v5 Ws2811 16mm LED Clear Point Pixel LEDUS$ 0.36 - 0.5MOQ: 1 Piece
-
Ws2801 50mm 6leds 12v Ipixel Point LedUS$ 1 - 1.5MOQ: 1 Piece
New Arrival CE ROHS certificate IP67 dream colour Decorative led pixel module
--Clear PVC body waterproof IP67
--Each pixel attached a pair JST SM Connector IP20
--Cable length can be customizable
--Control by SD controller or DMX device
New type 38mm led pixel developed based on our 35mm;
Some customer post feedback that they have to drill a 35mm hole on the;
Panel for installtion, the big hole spent lots of time and waste material;
So we changed the base (holder) to 19mm size;
But the ic chip, leds are the same as old one which you can combine it;
Or you can replace the old one by new version
Part Number |
P386V24 |
| Light source | Epistar 5050 SMD LEDs |
| Operating voltage | DC24V |
| Power (W/PCS) | 1.44W |
| LED Quantity | 6PCS |
| IC module | SM16703 |
| MCD per piece | R4200/G9600/B4000 |

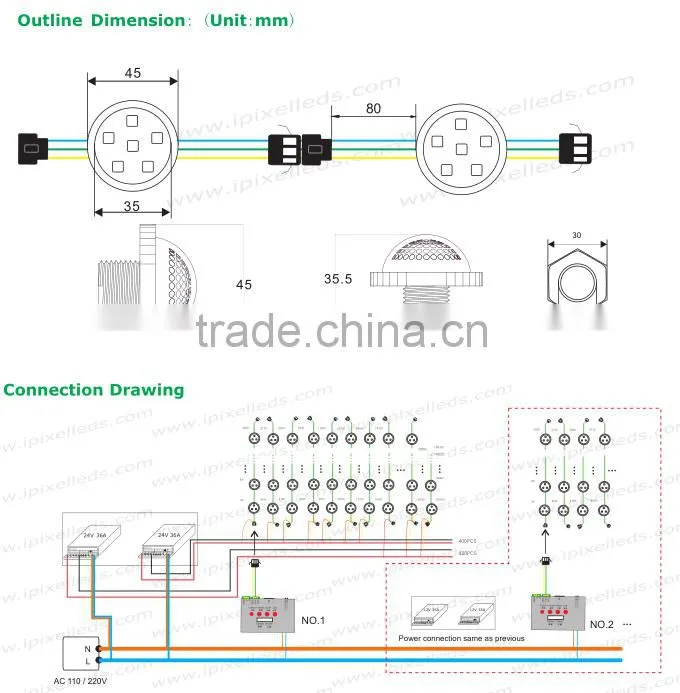

| Size(mm) | H35.5*W45mm |
| Waterproof | P67/IP20 |

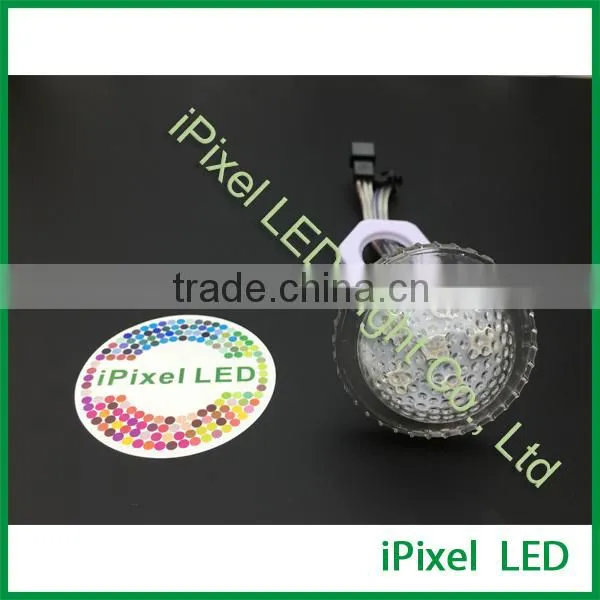

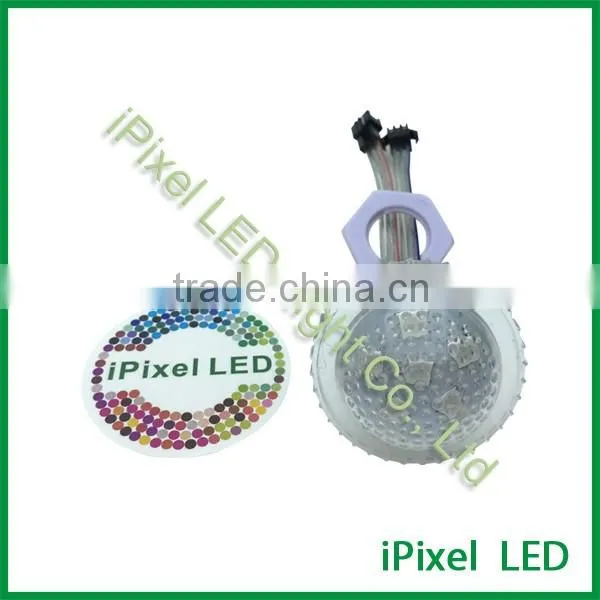

38mm pixel led,
with the optical design
if you feel the 6led/s is not brightness, the 38mm 9 leds is a good choice

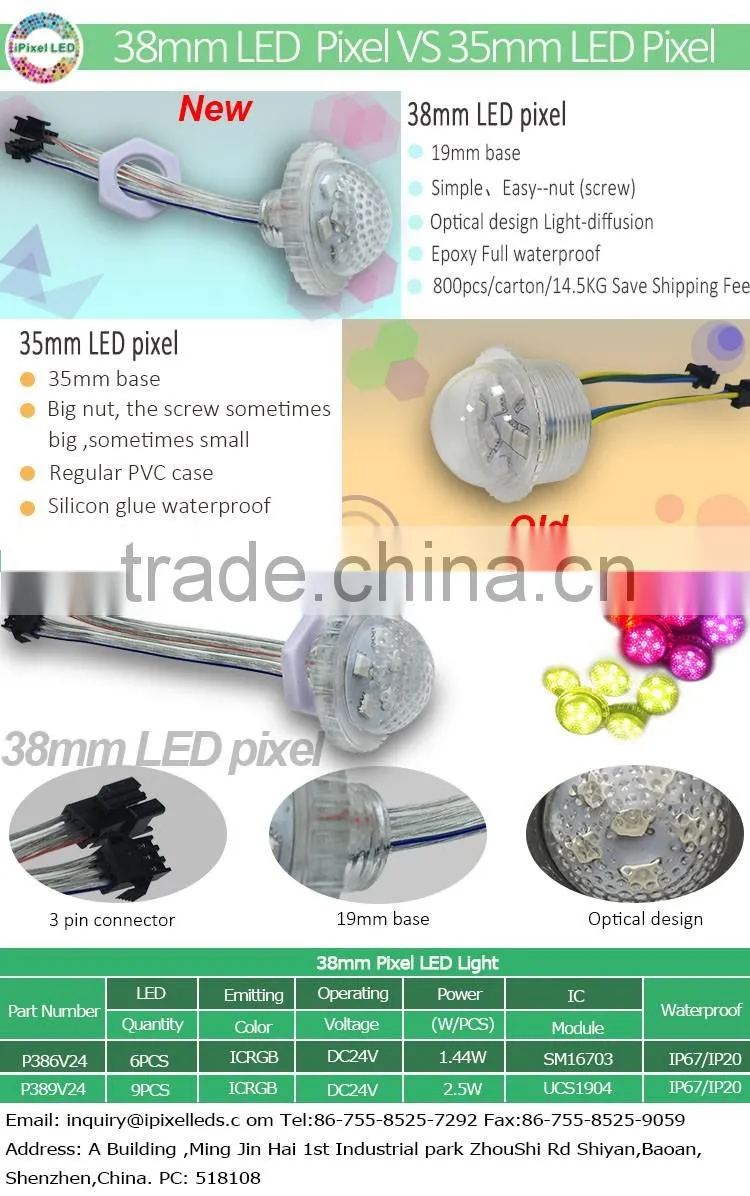

The difference between 35mm and 38mm led pixel:
1. the 35mm pixel with 35mm base size, you can drill the 35-40mm hole for installation,
the 38mm pixel is 19mm base size, can drill the hole with 19-30mm when installation.

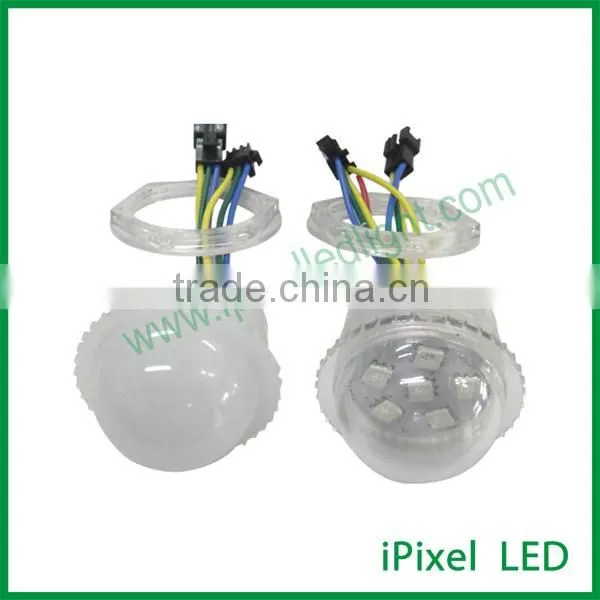

2. the 35mm pixel have frost and clear cover two selections,
the 38mm pixel is clear cover, but have many dots in it
