amusement rides led pixel light dc24v 60MM RGB Flatcap
- 20000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- led pixel light dmx512 rgb ip66 outdoor waterproof
- DC12V/15V 3LEDs RGB LED Module Pixel Light Outdoor Advertising Display Digital Lamp
- 6xrgb+12xw LED RGB Module Pixel Light TV Outdoor Advertising Display Digital Point Light
- China funfair amusement ride light e14 turbo led
- Aglare classic E14 SMD5050 replacement rgb pixel led amusement lamp
- Color changing DC24V 5050SMD programmable rgb led pixel led farground lights
Product Details
LED Light Source: | Epistar 5050 | Input Voltage(V): | DC24V | Lamp Power: | 3.84 |
Lamp Luminous Flux(lm): | 100 | Lamp Luminous Efficiency(lm/w): | 100 | Color Temperature(CCT): | Other, addressable |
Working Temperature(℃): | -30, 50 | Working Lifetime(Hour): | 50000 | Lamp Body Material: | PVC |
IP Rating: | IP66 | Certification: | CE | Emitting Color: | Changeable |
Place of Origin: | Guangdong, China | Brand Name: | iPixel LED | Model Number: | P6016V24 |
Product Description
amusement rides led pixel light dc24v 60MM RGB Flatcap
1. Individually control: 16PCS LED & 1IC (UCS2903) each led pixel light
2. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design
3. Combination: PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables...
4. Waterproof: Yes IP66, with silicon glue waterproof protection.
5. Installation: Easy to install, you'd better drill the hole about 19 - 40mm.
6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
7. Power supply: You must use a 24V DC power supply to power this pixel, do not use higher than 25V
or you can destroy the entire pixel.
8. Connetors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC24V+, GND-. each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
9. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.
10. Brand: iPixel LED
Product Name | 60mm 16LEDs/pcs led pixels |
Product No. | P6016V24 |
LED Chip | Epistar SMD 5050 RGB LED chip |
IC Chip | UCS1903 |
Input Voltage | DC24V |
Watts | 3.84W/PCS |
Cover Color | transparent cover |
Connectors | 3PIN JST, also can be waterproof connectors |
Beam angle | 140 |
Certification | CE, RoHS |
LED Qty | 16LEDs/pcs |
Cable Length | 10cm usually, also can be customized |
60mm led pixels, with 16LEDs/pcs——3PIN JST connectors. yes it's a more bigger size than 45mm version led pixels. and it with 16LEDs/pixels, will more brightness than other smaller version.
this pixel is non-waterproof 3pin JST connectors, RED wire is DC24V+, BLACK wire is GND-, GREEN/BLUE wire is DAT.
you can see the front part is 60mm diameter, and the back part will smaller, you can drill the hole with 19mm-40mm when install. and maybe you also noticed there have a plastic screw and a flex plastic ring,
they are for more tighter and fixed well.
Yea, this pixel also can be waterproof connectors version. you can use it outside directly.

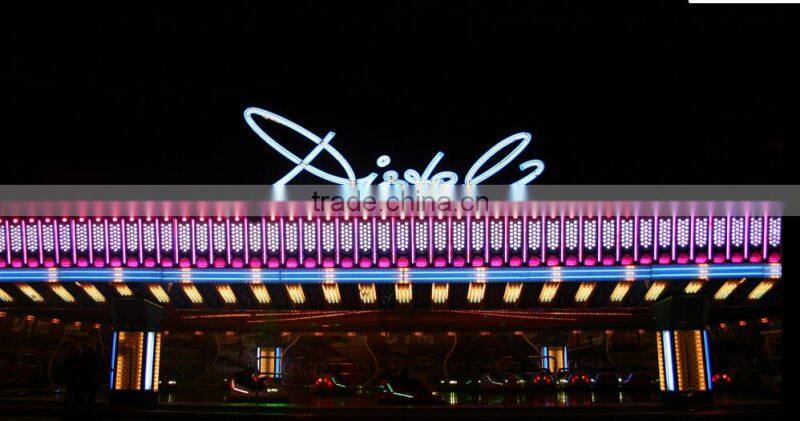

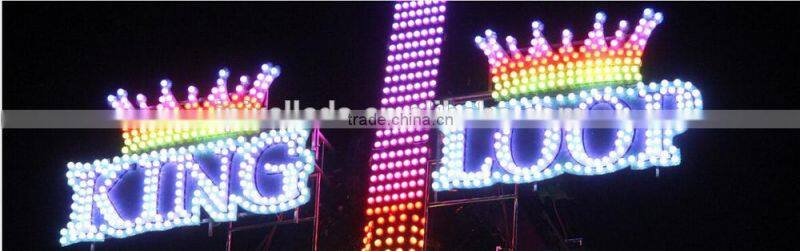

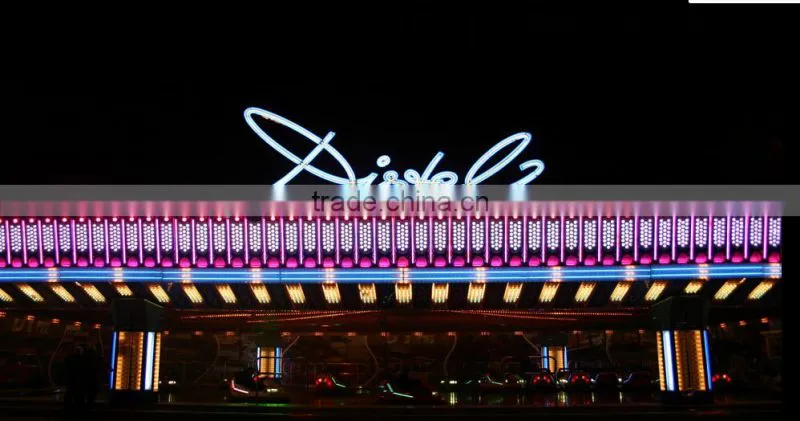

Application:
We also have other similar types:
1. 45mm led pixels, 6LEDs/pcs and 9LEDs/pcs, dc24v, transparent cover
2. 35mm led pixels, 6LEDs/pcs and 9LEDs/pcs, transparent/frost cover
3. 26mm led pixels, 3LEDs/pcs, dc12v, frost / transparent cover
