Specifications
Mini Metal/Jade Sign Making Machine(CNC Router) CX-30301.Cast iron structure
2.DSP
3.Strong cutting capacity
Mini Metal/Jade Sign Making Machine(CNC Router) CX-3030
Features:
1.The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.
2.Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc
3.Imported WEIHONG system .
4.Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed. Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.
5.Adopt high-speed water cooling motor with invariably power, big torque,strong cutting, high-frequency and long-life.
6.Available for continuous work for a long time.
Technical Parameters:
| Model | CX-3030 |
| X,Y Working Area | 300x300mm |
| Table Size | 340x340mm |
| Z Working Area | 180mm |
| Z Feeding Height | 200mm |
| X,Y,Z Traveling Accuracy | 0.01mm |
| X,Y,Z Repositioning Accuracy | 0.008mm |
| Spindle Speed | 24000r/m |
| Drive system | stepper/servo |
| Control system | DSP |
| Transmission type | 3 axis ball screw |
| Command language | code*/U00*/mmg*/nc |
| Maximum Travel Speed | 12m/min |
| Maximum Working Speed | 8m/min |
| Working Voltage | AC380V/220V |

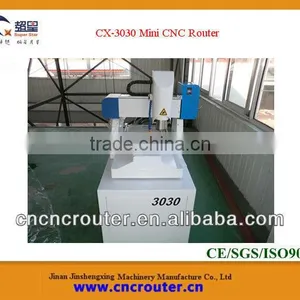

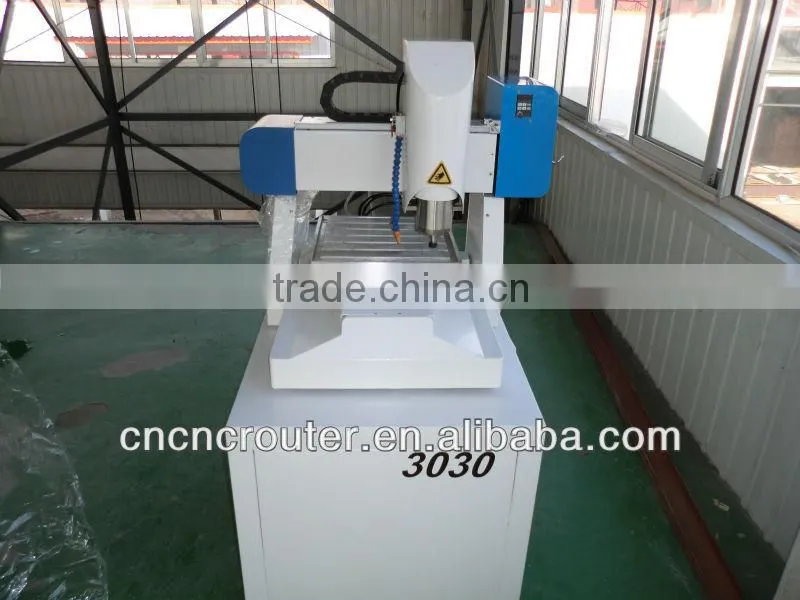

Machine:
Samples:
Delivery time: within 15 days after receiving deposit
Payment terms:T/T 30% deposit in advance , and 70% when you receive the copy of B/L after shipment
Package: Strong smoke freed wooden box
