Specifications
stair railing cnc machine:1. CE, ISO certificate

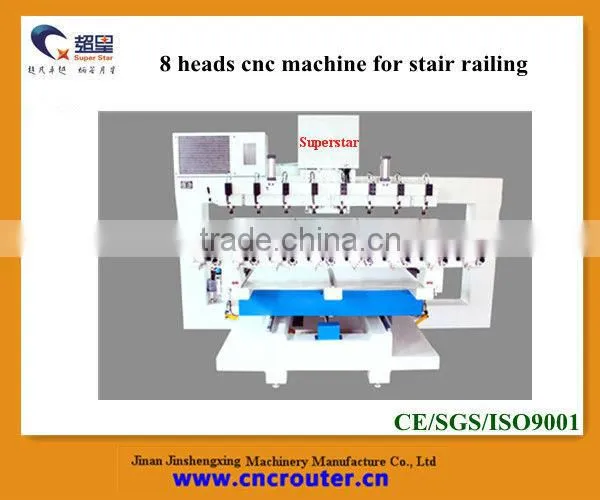

2. China unique 8 heads cnc machine for stair railing
3. patent protection

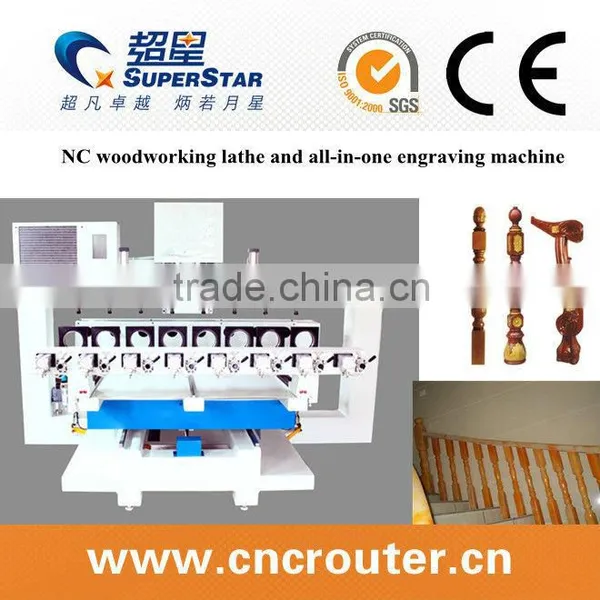

NC woodworking lathe and all-in-one engraving machine
This stair railing cnc machine has the following features:
- Produce 3D and complex crafts; 360-degree spinning engraving figures, Buddha statue, sculpture, fancy goods, European-style furniture, etc. Be able to be applied to solid wood, rigid plastics, non-ferrous metals copper, round sculpture of aluminum, etc.
- Adopt four-axis control system, complete servo drive and stick control. The operation is convenient and easy to learn.
- Adopt mesa drive. Run more steadily and process more accurately.
- The machine body of lathe is constituted by strong steel pipe with heavier load. Frame steel pipe is 10 millimeters in depth.
Application:
Mainly used to produce 3D and complex crafts; 360-degree spinning engraving figures, Buddha statue, sculpture, fancy goods, European-style furniture, etc. Be able to be applied to solid wood, rigid plastics, non-ferrous metals copper, round sculpture of aluminum, etc.
Technicial Specification:
Machine model |
CX-08 |
Size of work piece |
1200*250MM |
Maximum load of stage |
1200kg |
Operational mode |
servo drive |
Size of lathe |
2000 mm×3100mm×2200mm |
Output power of spindle motor |
2.2kw(8)Each |
Rotate speed of spindle motor |
8000-24000r/min |
Repositioning Accuracy |
0.05mm |
Maximal moving speed |
20m/min |
Running speed |
15m/min |
Working voltage |
AC380V±15% 50HZ |
Total weight |
about 2500kg |
Warranty: one year
Certificate: CE, ISO9001:2008
Produce time: 15 working days after getting the deposit
Payment: T/T—50% t/t in advance, 50% t/t after seeing the copy of B/L
Packaging: strong wooden case to avoid damage
MOQ: 1 set
We will be happy to service your inquiry with either our standard items or custom-made orders.
Please do not hesitate to contact us with your detailed inquiry.
We will put forth every effort to provide you with the most profession service and products that will meet the most demanding requirements.
If you have interest in the machine and want the working video, please feel free to email us.

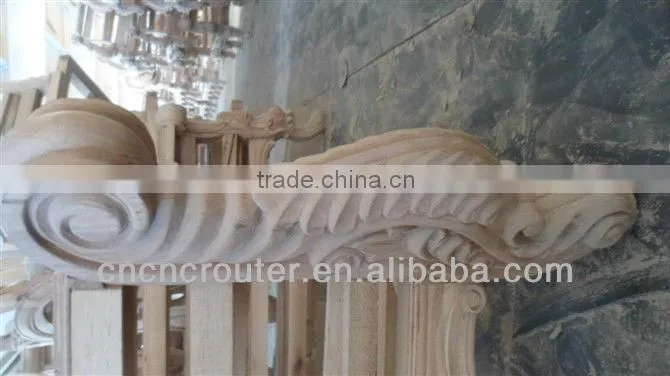

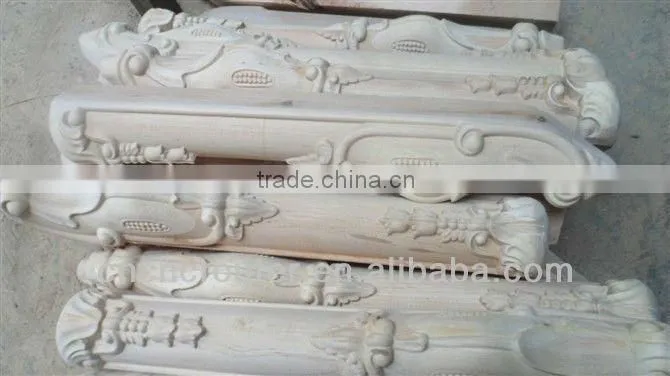

Samples:
Certificate:

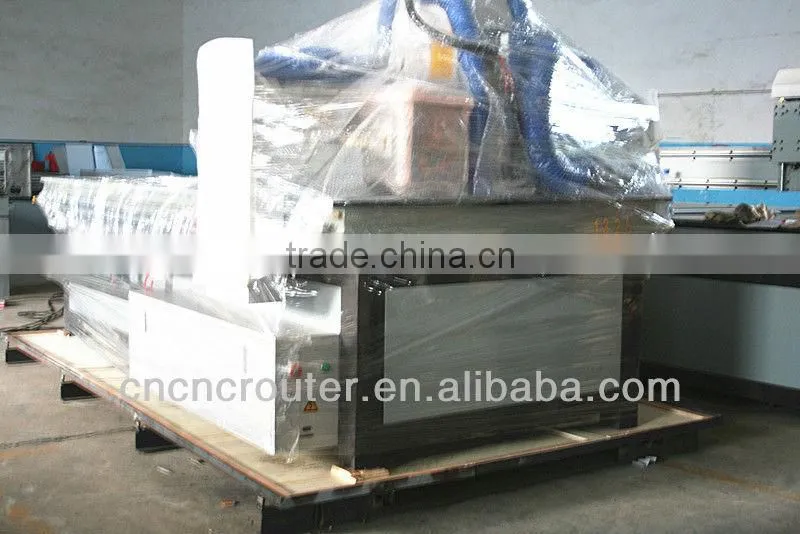

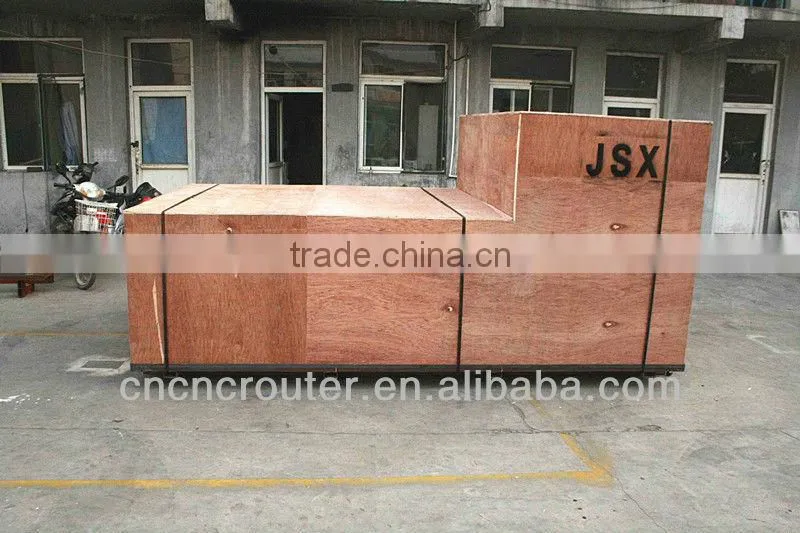

Packaging

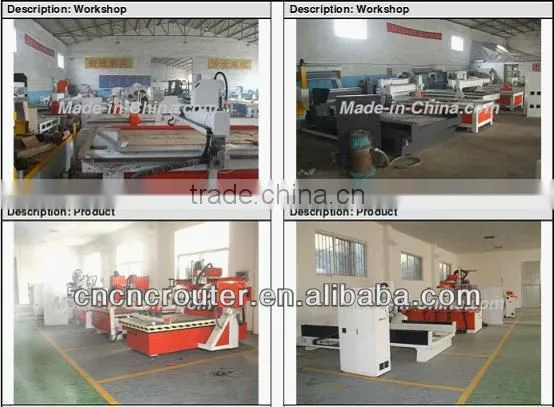

Workshop
