DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip

DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip thumbnail-1
DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip thumbnail-2
DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip thumbnail-3
DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip thumbnail-4
DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip photo-1
DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip photo-2
DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip photo-3
DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip photo-4
US$ 4.5 - 5.8 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050
Type:
Flex LED Strips
Input Voltage(V):
DC12/24V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050
Type Flex LED Strips
Input Voltage(V) DC12/24V
Lamp Power 19.2W/M
Lamp Luminous Flux(lm) 20
Color Temperature(CCT) RGB+3000k, RGB+6000K, RGB+10000K
Working Temperature(℃) -10, 40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
Certification CE
Emitting Color Other, addressable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number S605050RGBW

DC12V DC24V avaliable 5050 RGBW/RGBWW/RGBCW led strip

About Products

1. LED chip——SMD5050 R, G, B, W(WW/CW) 4 in 1 LED chip.

2. Standard Reel Length: 5meter/roll, also can be customized.

3. Cutted: you can cut this stuff pretty easily with wire cutters,

    Solder to the 0.1'' copper pads and you're good to go.

    DC12V: cutted per 3LED, there are cut-lines every 5cm.

    DC24V: cutted per 6LED, there are cut-lines every 10cm.

4. Power: the theory power is 19.2W/M, but the really power just about 12W/M.

5. Power supply:

    DC12V led strip: you must use a 12V DC power supply to power this strip, do not use higher than 13V,

    DC24V led strip: please use 24V DC power supply, or you can destroy the entire strip.

6. Sticky: non-waterproof: with 3M adhesive on back side for sticky;

                  waterproof: screw+silicon clip, or 3M adhesive back side.

8. Type:  RGBW, RGBCW, RGBWW——60LEDs/m, White PCB

               Waterproof——DC12V; Waterproof——DC24V

               Non-waterproof ——DC12V; Non-waterproof——DC24V

9. Color temperature: RGBWW: RGB+3000K;

                                      RGBW: RGB+6000K;

                                    RGBCW: RGB+10000K

10. Brand: iPxel LED



Specification
Product Name RGBW/RGBWW/RGBCW led strip
Model Number S605050RGBW
LED Chip 5050 R, G, B W, 4 in 1 LED chip
LED Qty 60LEDs/m
PCB Color White PCB
PCB Width 12mm
Voltage DC12V,DC24V
Watts 19.2W/M
IP Rate IP20, IP65(Silicon-tube waterproof)
Cutted 12V, 3LEDs/group; 24V, 6LEDs/group
Standard Reel Length 5meter/roll, also can be customized
Operating Temperature -20 ~ +40°C
Storage Temperature -40 ~ +80°C
Type RGBW, RGBWW, RGBCW



Detail Pictures

SMD5050 RGB+Warm white DC24V led strip

DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip

RGB+ Pure white DC24V led strip

DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip

Application photoes

DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip

DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip

DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip

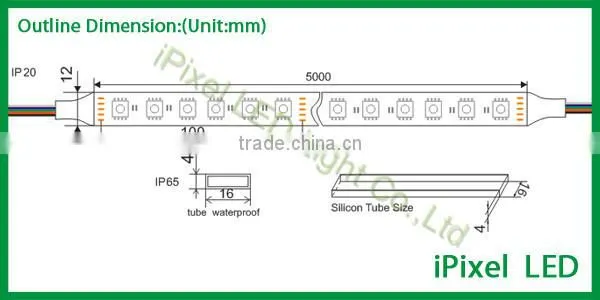

Outline Dimension

DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip



Related Products

R,G,B + Warm white/ Pure white addressable led strip

DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip


Connection way

RGBW led controller

DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip



12V/24V 350W led power supply

DC12V DC24V Available 5050 RGBW/RGBWW/RGBCW LED Strip

Packing:

Usually 5meter/roll, 1roll/bag

waterproof: 60rolls/carton, 17.5KG/Carton

non-waterproof: 90rolls/carton, 12.4KG/Carton(Volume Weight)

Carton Size: 46cmx27cmx46cm



Trade Terms:

1. Payment Terms:

T/T, Western Union, Ali Excrow(Credit Card, Debit Card, Bank Transfer)

2. Lead Time:

Usually we had materials in stock, regular order delivery time 1--7days after the order(PI) paid,

Customized products 8--15days(Custom PCB).

3.Warranty:

2 years warranty since the data of purchase our LED products.

4. Delivery Ways:

DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc.
