Magic Digital Dream Color Flexible Strip Led Lighting Apa102 60led Smd5050

Magic Digital Dream Color Flexible Strip Led Lighting Apa102 60led Smd5050 thumbnail-1
Magic Digital Dream Color Flexible Strip Led Lighting Apa102 60led Smd5050 photo-1
US$ 1 - 9.9 MOQ: 1 Roll
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050 RGB LED Chip
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050 RGB LED Chip
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 14.4W/M
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) full color
Working Temperature(℃) -10, 40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number S60102

magic digital dream color flexible strip led lighting

apa102 60led smd5050





Feature:

1. Addressable full color led strips ——APA102C IC built-in.

2. Individually control —— 1 IC & I LED chip.

3. Standard Reel Length: 5meter/roll, also can be customized.

4. Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.

                    you can cut this stuff pretty easily with wire cutters, there are cut-lines

                    every 0.65''/1.7cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.

5. Power supply: You must use a 5V DC power supply to power this striup,

                              do not use higher than 6V or you can destroy the entire strip.

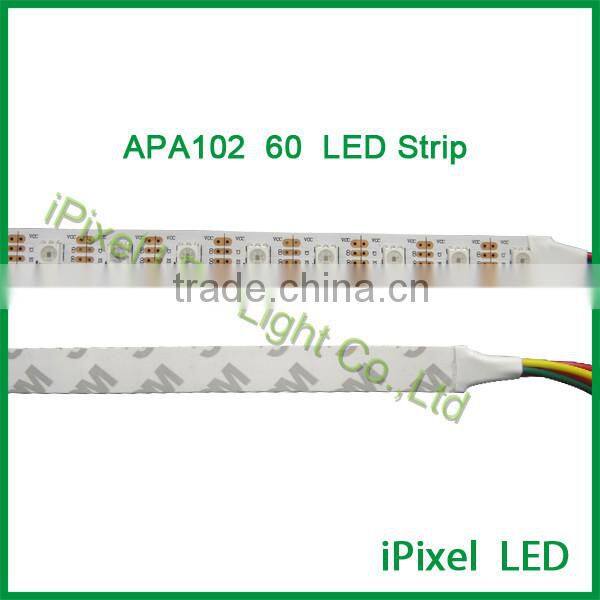

6. Sticky: non-waterproof: with 3M adhesive on back side for sticky;

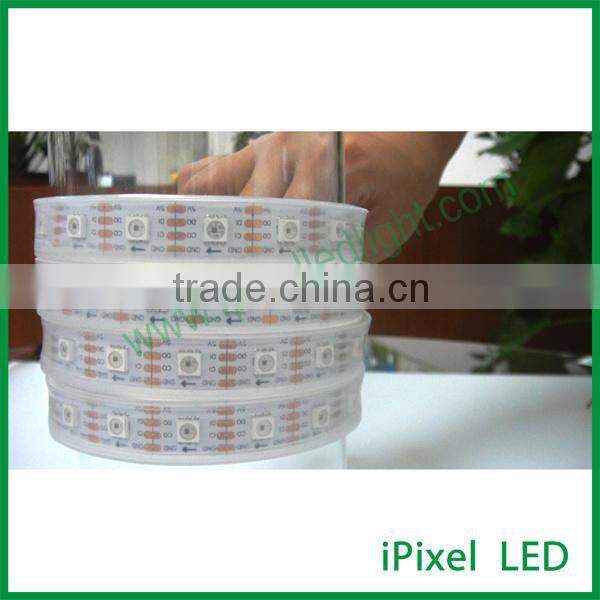

                  waterproof: screw+silicon clip, or 3M adhesive back side.

7. Connectors: 4PIN JST female and male connectors, DAT, CLK, DC5V+, GND-.

these LEDs have 2 wires (input and output) for sending data - one clock pin and one data pin. That means you need two pins, not one, to control DotStars. Because the clock and data is seperated, you can use any processor speed or type to control these strips, and you don't have to worry about being careful with the timing.

8. Type:

This is the 60 LED-per-meter version, We have 30 LED/m, 60 LED/m and 144 LED/m.

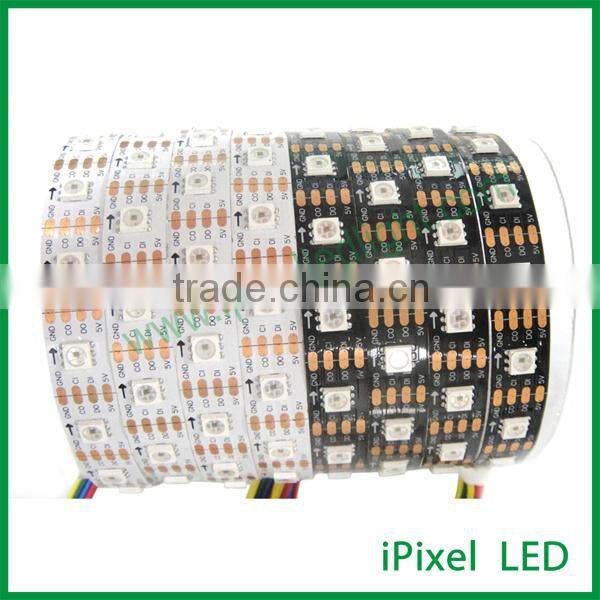

          Waterproof——white PCB; Non-waterproof ——white PCB;
          Waterproof——black PCB; Non-waterproof——black PCB

9. LED Brightness: Red ~600mcd, Green ~500mcd, Blue ~150mcd

10. Brand: iPxel LED

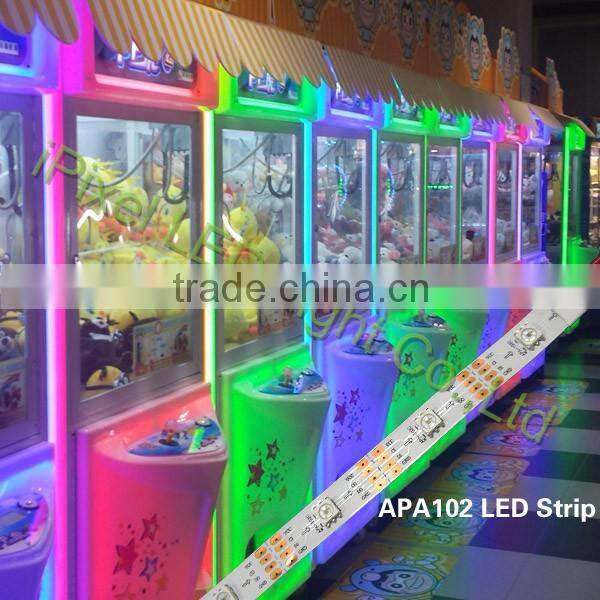

Application:

LED Chip SMD5050 RGB LED chip
IC Chip  APA102C IC built-in
LED Quantity 60LEDs/m
Input Voltage DC5V
Watts 14.4W/M
IP Rate IP20(non-waterproof), IP65(Silicon-tube waterproof)
PCB Color White PCB, Black PCB
View Angle 120°
Standard Reel Length 5meter/roll, also can be customized
PCB Width 12mm
Operating Temperature -20 ~ +40°C
Storage Temperature -40 ~ +80°C
Color  Addressable full color





 Pictures:

magic digital dream color flexible strip led lighting apa102 60led smd5050

magic digital dream color flexible strip led lighting apa102 60led smd5050

magic digital dream color flexible strip led lighting apa102 60led smd5050

magic digital dream color flexible strip led lighting apa102 60led smd5050

magic digital dream color flexible strip led lighting apa102 60led smd5050







The compared of APA102 30leds/m, 60leds/m, 144leds/m:

TYPE 30LEDs/m 60LEDs/m 144LEDs/m
IC APA102C APA102C APA102C
PCB Width 10mm 12mm 12mm
Standard Length 5meter/roll 5meter/roll 1meter/roll
PCB color white/black white/back white/black
Voltage DC5V DC5V DC5V
Watts 7.2W/M 14.4W/M 34.56W/M
Cutted per 1 LED per 1 LED per 1 LED



magic digital dream color flexible strip led lighting apa102 60led smd5050





Connection way:

SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...

(offline / PC online)

LED power suppply: Meanwell power supply, T- series, A- series power supply...

(waterproof / non-waterproof)

magic digital dream color flexible strip led lighting apa102 60led smd5050

magic digital dream color flexible strip led lighting apa102 60led smd5050

Trade Terms:

1. Payment Terms:

T/T, Western Union, Ali Excrow(Credit Card, Debit Card, Bank Transfer)

2. Lead Time:

Usually we had materials in stock, regular order delivery time 1--7days after the order(PI) paid,

Customized products 8--15days(Custom PCB).

3.Warranty:

2 years warranty since the data of purchase our LED products.

4. Delivery Ways:

DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc.
