CNC Metal Plate Punching Drilling Machine (ENHANCED)

Name: CNC Metal Plate Punching Drilling Machine (ENHANCED)
Brand: Solterra
SKU: 129206641
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Solterra

Model Number:

CPP-100

Jinan Liaoyuan Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Solterra

Model Number CPP-100

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.India Office
2.ISO9001:2000
3.Factory established in 1991.
4.One Year Product Warranty

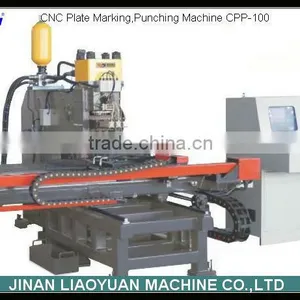

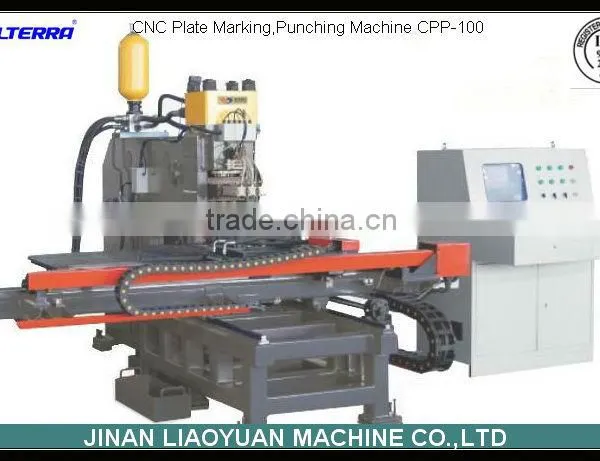

CNC Punching Machine for Plate and Steel Structures CPP100

Detailed Product Description

1.Certificates: CE, ISO9001 2.After-sale Services: available to service machinery overseas

3.CNC Punching Machine for Plates

Product Details

Name	CNC Punching Machine for Plates
Model	CPP-100
Brand	SOLTERRA
Warranty	The Warranty time is One year, Engineers available to the services
Certificates	ISO9001:2008,SGS
Delivery time	With 34 working days
Package details	High quality wooden case

Equipment Featurs

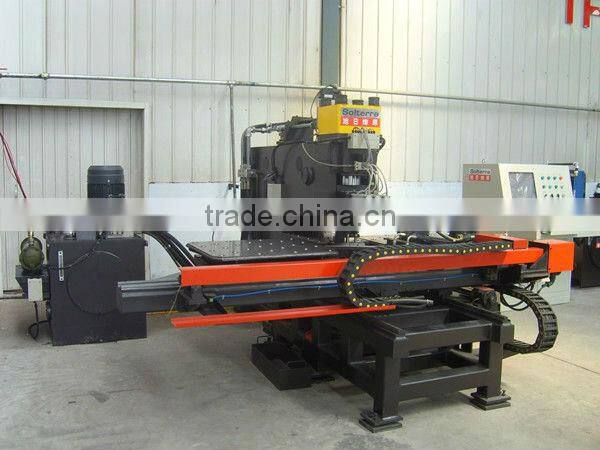

1.C shape framework features , great rigidity and provides spacious working area.

2.There are three working stations.Stations can change automatically.The clamp system is suitable for workpiece with different thicknesses.There

is stop locater at zero position.Workpiece is supported by woking table with rolling balls.

3.X and Y axis are divided by servo motor and ball screw,the punching position is controlled by bi-axis CNC controlling system.

4.The processing data,which can be used repeatedly,can be input into the controlling system and the processing can be done automatically.

Equipment Advantages

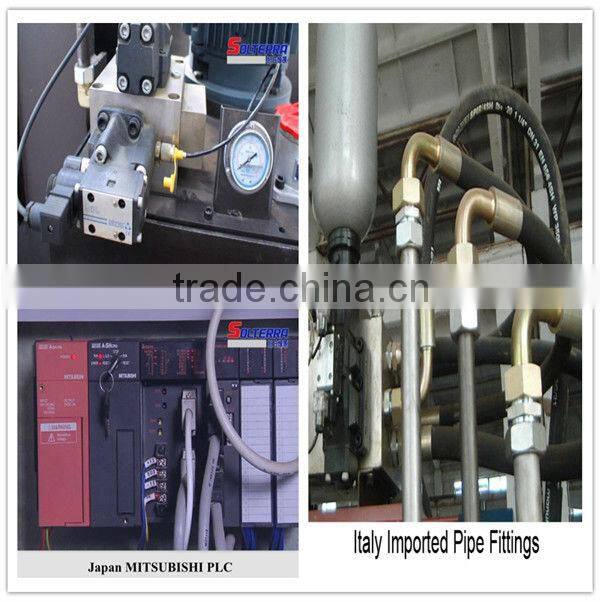

Integrated machine with mechanical,electrical and hydraulic system.PLC control and servo motor drive.
Modular assembling for main functional part,easy maintenance,and with self-diagnostic function.
Punching and marking operations are on one plate with less labor force and high stable working accuracy.
For programming,either input punching diameter ,position and quantity of workpiece or directly share the data souce with design department on the local network.

Main Technical Specifications

No.	Item		Specifications		Unit	Note
1	Punching force		1000		kN
2	Marking force		800		kN
3	Thickness range of punching		6-20/25		mm
4	Max.diameter of workpiece		1500×775		mm
5	Max.diameter of punching hole		26		mm	b=40N/mm2≤16
6	Min.margen of punching hole		25		mm	Apertore≤25.5mm
7	No. of stations		3		number
8	Diamensions of character		14×10×19		Mm
9	No. of characters		10		number	Two lines
10	Speed of axis XY		12		m/min
11	Process precision		Accord with GB/T2694-2003		Criterion
12	Hydraulic system pressure	(low pressure)	5.5	Mpa
		(high pressure)	25	Mpa
13	Air supply pressure		0.5~0.8		Mpa
14	Total power		≈20		kW
15	Overall dimensions		3020×2522×1880		mm
16	Weight of machine		6(t)
