Specifications
py-routing Machine for aluminum & PVC windows hole,groove and slots milling2.ISO9001-2008
3.since 1991
Automatic Lock Hole Processing Machine

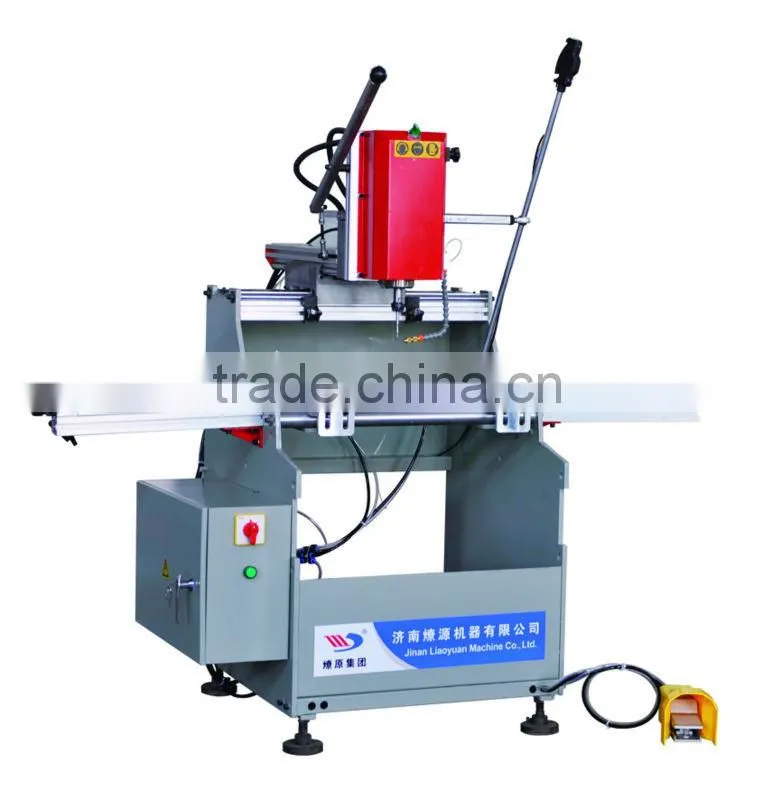

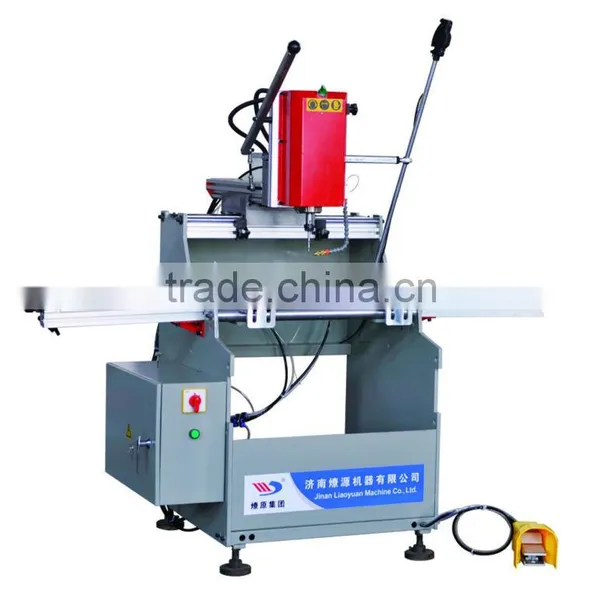

1.LXFA-370X125 Automatic Lock Hole Processing Machine
2.ISO9001-2008
3.20 years industry experience.
Equipment Features:
1. It is used for processing all types of holes, grooves and water-slots in aluminum and PVX profiles.
2. It has the features of compact structure, nice design, smart volume and the air pressure contols the starting up of the motor.
3. Easy replacement of the copy-routing platem, large useful scope, high efficency and convenient operation achieve the continuous processing and safety operation.
Main Specification and Technical Parameters:
| Mode | LXFA-370*125 |
| Voltage | 380V/220V 50Hz |
| Input Power | 2.2 kw |
| Air Pressure | 0.5~0.8MPa |
| Air Consumption | 10L/min |
| Copy-routing Range | 370*125mm |
| Milling Cutter Diameter | Φ5mm Φ8mm |
| profile Section | w230*h150~210mm |
| Spindle Rational Speed | 0-12000r/min |
| Processing Roughness | Ra12.5μm |
| Overall Dimension(L*W*H) | 2180*1000*1700mm |
| Weight | about 230kg |
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE(12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.
Technical service:
The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
