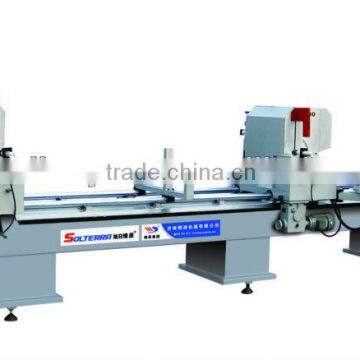

Double head Cutting Saw for aluminum & pvc profiles LJZ2-450x3700

Specifications

1. Double-head Precise Cutting Saw for aluminum and PVC Window//PVC Profile Cutting Saw
2. ISO9001-2008,CE
3.SINCE 1991



Double head Cutting Saw for aluminum & pvc profiles/PVC windows making machine LJZ2-450x3700



1.Double-head Cutting Saw for aluminum & pvc profiles
2.Imported carbide saw blade for accurate processing and high efficiency.



Features:



1.   The linear guiding pair ensures steady processing accuracy

2.   Saw blade rotates smoothly due to high accuracy main spindle

3.   Uniform speed feeding and smooth motion are due to hydraulic damping cylinder

4.   It has feature of easy operation, reliable performance, advanced technique and convenient maintenance, etc

5.   Right cutting head moving is driven by motor

6.  Imported carbide saw blade is of accurate processing and high efficiency

7.   The Improved Safety cover is more reliable and safety for operation.

8.  The digital measurement display is optional



Technical parameter:



Power supply                                                            380V 50Hz

Air pressure                                                               0.5-0.8Mpa

Cutting motor power                                                  2x1.5Kw

 Rotary Speed                                                            2800r/min

 Air consumption                                                        60L/m

Blade specification                                                     Φ450XΦ30X4.4 Z=120

Cutting length                                            max 3700mm min 580mm (45°) Max 3700mm min 400mm(90°, 135°)

Cutting width                                                              max 120mm

Cutting height                                                              max 200mm

Cutting angle                                                                90°, 45°,135°(optional)

Cutting angle allowance                                                ±5′

Cutting speed                                                               0-0.3m/min

Cutting profile surface planeness                                  <=0.1mm

Cutting profile surface roughness                                 Ra 12.5μm

Overall dimension                                                       4500X1170X1400mm

Weight                                                                       1500kg







Quality Guarantee:



 The Seller shall provide all spare parts needed, be responsible for spare parts replacement  and TWELVE(12) months guarantee.







After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.





Technical service:



The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
