Specifications
1.Glazing Bead Saw for pvc windows & doors for mullion cutting2.plastic glazing bead cutting saw
3.CE, ISO-9001-2008

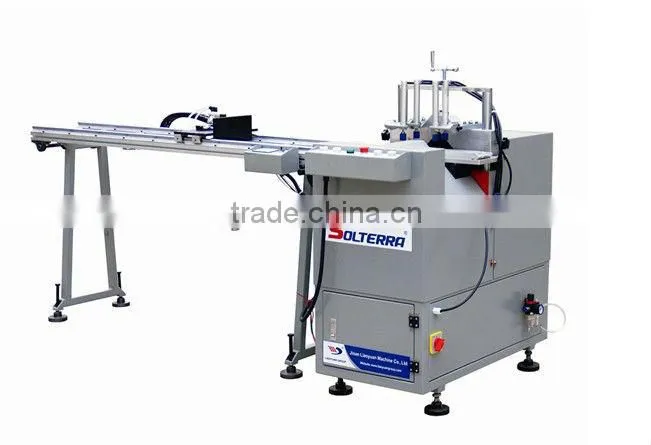

Glazing Bead Saw for pvc windows & doors SGB-1800
1.Glazing Bead Saw for pvc windows & doors
2.Used for mullion cutting.
3.CE, ISO-9001-2008
4.20 years industry experience.
Features and functions:
1. For 45°glass batten cutting
2. One time two pieces of glass batten cutting
3. Adjustable mould less the error of angle cutting
4. The digital measurement display stopper is optional(the picture with the digital stopper)
Technical parameter:
Air Pressure |
0.5~0.8MPa
|
Air consumption |
20L/min |
Input voltage |
380V 50Hz |
Input power |
1.1KW |
Spindle Rotary Speed |
2800r/min
|
Cutting height |
33mm
|
Cutting width |
100mm |
Cutting length |
350-1800mm
|
Dimension |
1350x 500 x 1350mm |
Weight |
250kg
|
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE(12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.
Technical service:
The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
