Specifications
1.PVC windows fabrication machine/Automatic Water Slot Milling Machine(4-spindle)2.CE, ISO9001
3.since 1991

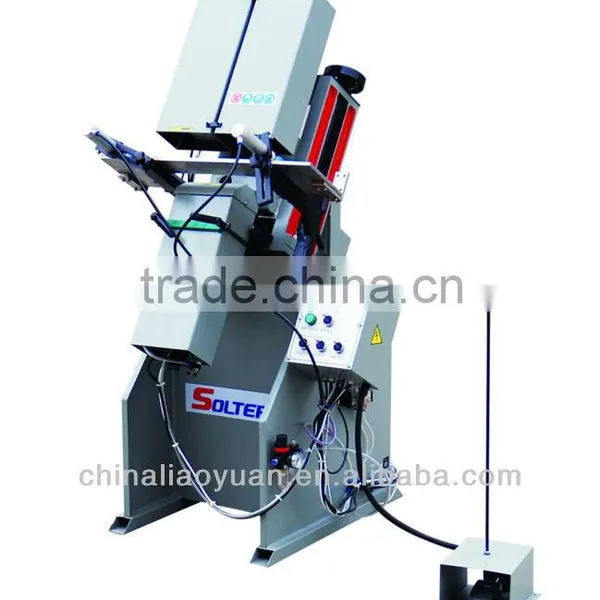

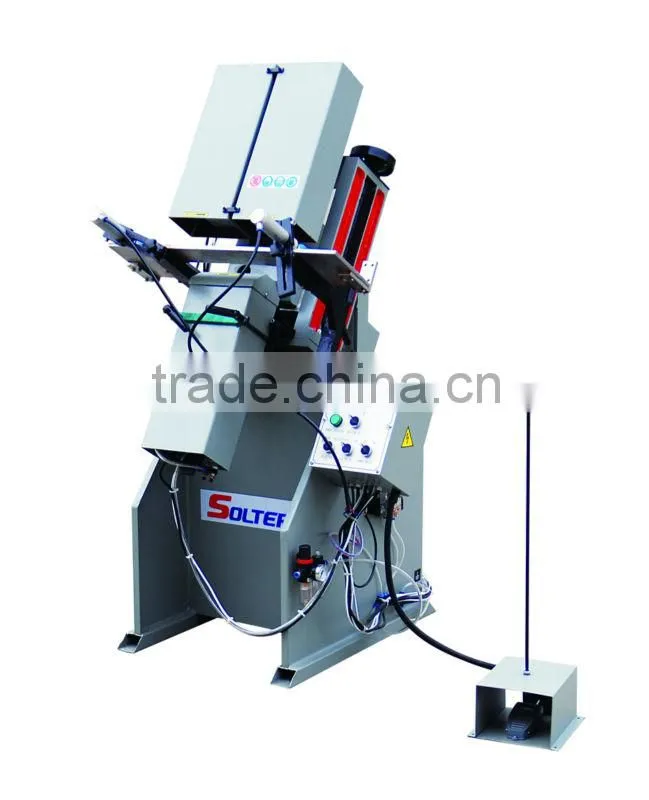

Water Slot Milling Machine/PVC windows making machine(4-spindle)SCX02-4
1.Automatic Water Slot Milling Machine(4-spindle)
2.Automatic and high precision
3. CE, ISO9001-2008
4. 20 years experience.
Equipment Features:
1. Milling all kinds of water slots and air pressure balance grooves.
2. The upper two milling heads can work together with the lower one or the horizontal one to meet various processing requirement.
3. The length of milling water slot within 60mm is adjustable and its usage range is wide.
4. Improved the milling feeding system and changed the milling cutter horizontal feeding way to machine head horizontal feeding, effectively avoiding the Comma Phenomenon.
5. Milling head’s angle and the position if its operating table, which is adjustable, can meet different profiles and positions processing requirements.
6. Apply to high-grade and mass windows production.
Main specification and Technical parameter:
Water Slot Milling Machine/PVC windows fabrication machine(4-spindle)SCX02-4 | |
Input voltage |
220V/50Hz |
Input power |
1.52kw |
Air pressure |
0.5-0.8Mpa |
Air consumption |
30L/min |
Main-shaft revolution |
25000r/min |
Cutter diameter |
Φ5Φ4mm |
Slot depth |
30mm |
Slot length |
30-60mm |
Overall dimension |
1925x750x1600mm |
Weight: |
320kg |
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE(12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.
Technical service:
The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
Contact person:
James wang(Mr.)
Tel: +86 531 5556 2077 / 5558 5377
Fax: +86 531 5558 5077 / 8566 9978
Cell: +86-15253125732
...
