Automatic CNC Angle Punching Shearing Machine for Angle Steel
- 25 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | CNC | Power Source: | Hydraulic |
Place of Origin: | Shandong, China | Brand Name: | SOLTERRA | Model Number: | APLH-2020 |
Power(W): | 43.5Kw | Weight: | 16000Kg | Dimension(L*W*H): | 32x7x2.2m |
Certification: | ISO,CE,SGS | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
c punching machine2.Factory built in 1991
3.ISO9001:2008
4.CNC punching shearing machine for angle steel
Automatic CNC Punching Shearing Machine for Angle Steel APLH-2020
This Machine is popular for processing angle steels and tower industry
Detailed Product Information:
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company dedicate to offer Iron tower and steel struction equipment.
Brief Product Introduction
Name | Automatic CNC Punching Shearing Machine for Angle Sheets |
Model | APLH-2020 |
Brand | SOLTERRA |
Warranty | The Warranty Time is One year, Engineers available to the Service |
Certificates | ISO9001,SGS |
Delivery time | Within 6 weeks after confirming the order |
Payment terms | L/C,T/T |
Product details:
As a factory,we will give you the highest quality and the competitive price.
We are looking for the agent of our machines all over the world.
Item:APLH-2020
This machine is popular for tower industry.
Range of Angle size:63x63x4~200x200x20(Q235-A or 16Mn)
Equipment Features
- The machine is professional automatic equipment for marking, punching and shearing in iron tower manufacturing industry.
- CNC automatic production line offers highpunching speed and high stability.
- The angle bar can be processed into finished angle in one time as passing through the machine.
- The machining process is numerically controlled and the operation is very convenient.It can achieve automation,high precision,multi-species and mass production.
- Friendly computer interface is easy to operate.It can accept certain processing program which is made by lofting softrware.And it also supports manual programming.
Advantages
- The machine is composed of transverse conveyor,rotating loading system,infeed conveyor,CNC infeed carriage,marking unit,shearing unit,unloading conveyor as well as hydraulic,electrical and pneumatic system,etc.
- Veasatile triple tooling on each side which can install three kinds of punches with different diameters.Versatile triple tooling can move together controlled by CNC which is to change the punching stadia.
- Double-blade shearing ensures perfect cutting section.The clearance can be conveniently adjusted.
- Marking unit adopts a closed frame with good rigidity.Four sets of character boxes are fixed on the marking unit which can be selected by program.Marking stadia can be at will.
- The workpiece is infeeded by the CNC carriage with high positioning precision.The infeed carriage is driven by servo motor.The photoelectric encoder feds back the information.Closed loop control.The clamp arm moves up and down with high rigidity.It is driven by ball screw and guided by linear guideway.
- The support device of the ounching unit is driven up and down by hydraulic cylinder.
- The rotating loading system is driven by the reducer with high working stability.
- The hydraulic system mainly serves for punching,shearing,marking,marking device movement,pressing and supporting workpiece,and tansposition of character boxes.The hydraulic pipeline is ferrule connect
Main Technical Specifications
Model | APLH-2020 |
Function | Punching,marking,shearing |
angle size(mm) | 63×63×4~200×200×20(Q235-Aor16mn) |
Nominal marking force(kN) | 550/1040 |
Nominal punching force(kN) | 1090 |
Nominal shearing force(kN) | 1810 |
Max.punching capability(mm) | 26×20 |
piece(m) | 14 |
Adjustment of stadia(mm) | 20~170 |
No. of punches on each side(number) | 3 |
No.of character groups(group) | 4 |
No. of characters per group(number) | 10/18 |
Diamentions of character(mm) | 14×10×19 |
Shearing mode | Double-blade shearing |
No. of CNC axis(number0 | 3 |
Max. feeding speed(m/min) | 40 |
Total power(kW) | 43.5 |
Overall dimentions(m) | 32×7×2.2 |
Weight of machine(t) | Approx16 |

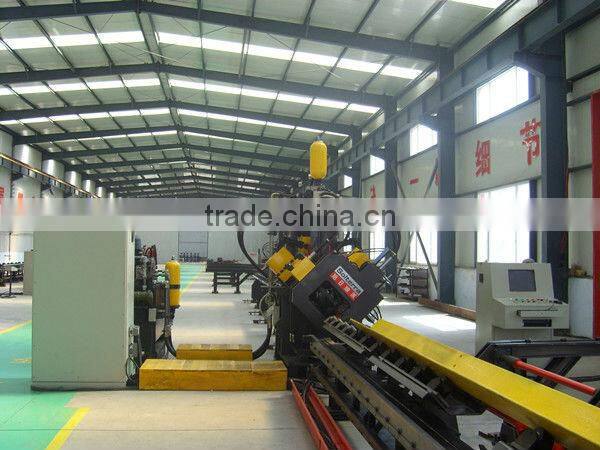

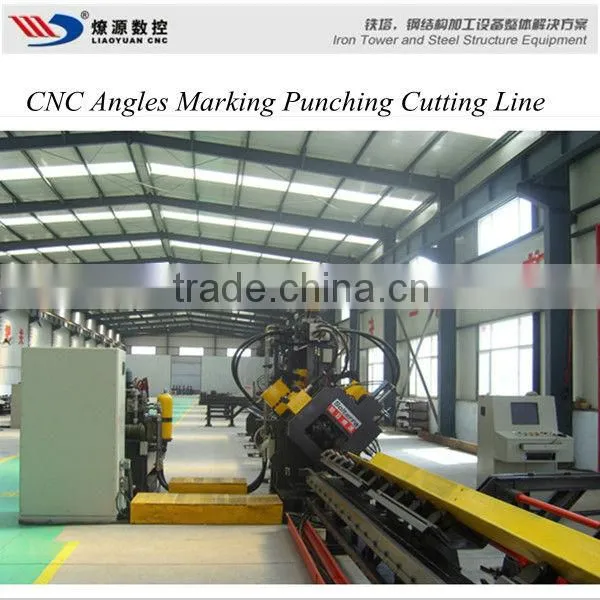

Machine Images

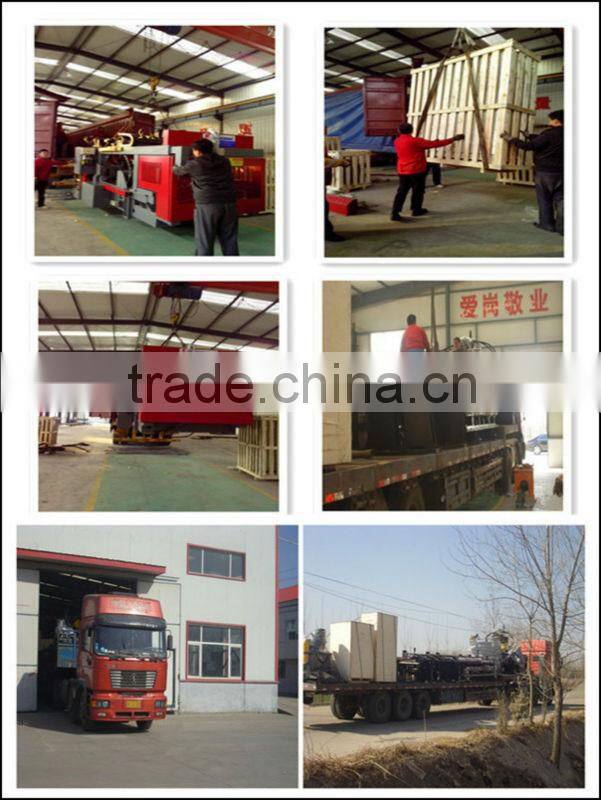

Package and shipping
Processing Object
Company Profile
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Machinery Exhibition
Fully ISO Quality Management System Approved, For more informaiton about
the certificate,please feel free to contact me!!!
After-sale service
Contact information
Contact Us
- Jinan Liaoyuan Machine Co., Ltd.
- Contact nameTom Ma
- Phone0086-531-55562077
- AddressNo. 1996, Huanggang Road, Tianqiao Dist.
