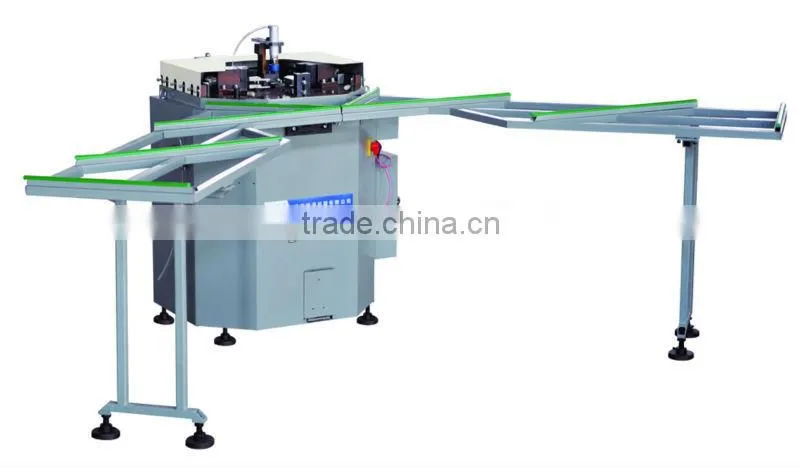

corner combining machine for aluminum door & windows LZJA-120

Specifications

 CNC corner combining machine LZJA-120

1. CNC corner combining machine
2. CE, ISO9001-2008;
3. 20 years industry experience.

Equipment  Features:

1. The frame is specially jointed by steel with quality and durable.

2. Adopt new mechanical linkage device, realized complete synchronous corner combining.

3. Synchro feeding structure makes the adjustment very easy

4. Screw thread regulates the distance between up and down crimping blade ensures regulates blades easily

5. It is collocate single cutter of many points crimping cutter ensure reliably crimping for all kinds of profiles.

 Main Specification and Technical Parameters:

Power supply                                                         380V 50Hz

Main motor input power                                          1.1kw

Rated oil pump pressure                                          16Mpa

Motor rotational speed                                             1400r/min

Profile processing height                                            Max 120 mm

Profile processing width                                             90mm

Total combining pressure                                           0.5-0.8Mpa

Air consumption                                                        2 L/min

General pressure of corner combining                         48kn

The adjustable range of the main location block           70 mm

Overall dimension                                                      1000x1200x1200 mm

Weight                                                                       350kg

Quality Guarantee:

 The Seller shall provide all spare parts needed, be responsible for spare parts replacement  and TWELVE(12) months guarantee.

After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.

Technical service:

The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
