Home > Products > Digital LED bar > full color ucs1903 dc12v 48LEDs&16ICs led light rigid bar with a Optical lens
full color ucs1903 dc12v 48LEDs&16ICs led light rigid bar with a Optical lens
- 10000 Meter / Meters per Month
- Shenzhen Yantian
- T/T L/C D/P D/A Credit Card PayPal
Product Details
LED Light Source: | Epistar | Warranty(Year): | 2 | Input Voltage(V): | DC12V |
Lamp Power(W): | 10 | Lamp Luminous Flux(lm): | R24000/G42000/B1200 (MCD) | Lamp Luminous Efficiency(lm/w): | 100 |
Color Temperature(CCT): | Other | Working Temperature(℃): | -40, 50 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum | IP Rating: | IP67 | Certification: | CE |
Place of Origin: | Guangdong, China | Brand Name: | iPixel LED | Model Number: | B4816V12-1903 |
Product Description

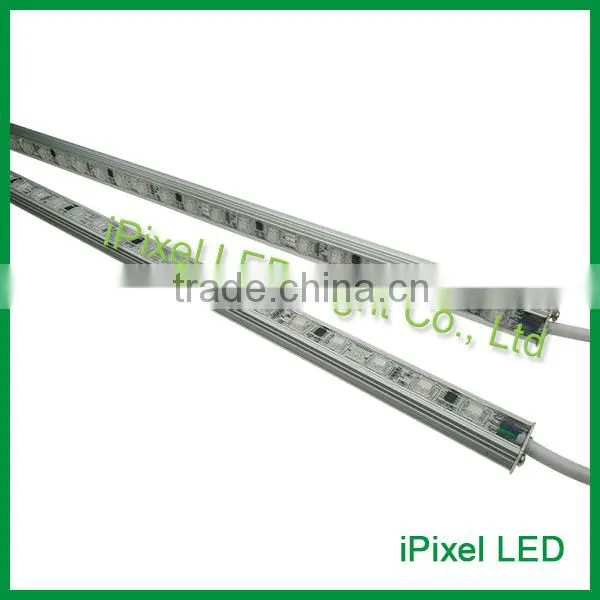

full color ucs1903 dc12v 48LEDs&16ICs led light rigid bar with a Optical len
1-This bar included 48pcs LED 5050 RGB with lens
2-Cuttable each section of 10cm (3LED)
3-Each LED covered by a optical lens, beam angle 160 Degree, An-ti UV.
4-PU glue injection IP67 waterproof
5-Good waterproof connector
6-The Aluminum size is 1150mm, PCB size is 990mm, there is a gap on each side of the bar.
Product Name | UCS1903 48 pixels led bar light |
Model Number | B4816V12-1903 |
Voltage | DC12V input |
Power | 10W/M |
LED Qty | 48 leds/m |
IC Chip | UCS1903 |
Size/mm | (L)1150mm*(W)18mm*(H)14mm |
PCB Width | 18mm |
PCB Color | White |
Connector | 3Pin waterproof connectors |
IP Rate | PU glue injection |
Warranty | 2 years |
You can see each LED chip with a optical lens covered, it can protect the LED chip, incase the water inside,
and the beam angle is 160 Degree, also with An-ti UV effect
the male and female connector on both end with a very good quality, no matter can avoid the waterproof
in it, also can use in very terrible temperature, like -40C....
From this picture, you will know each this bar with IC chip for control, per 3LEDs & 1 IC,
that means per 3LEDs each group, you can cut the rigid bar per 3LEDs(6.25cm).
This rigid bar also with very good waterproof effect, no matter the lens proect LED chip,
each bar mounted in a aluminum profile, and with PU silicon glue covered the whole bar.
even the both end, in weld pad, also have full silicon protect.
