4pcs 5050 smd rgb ws2801 led pixel module

4pcs 5050 smd rgb ws2801 led pixel module

DESCRIPTION:

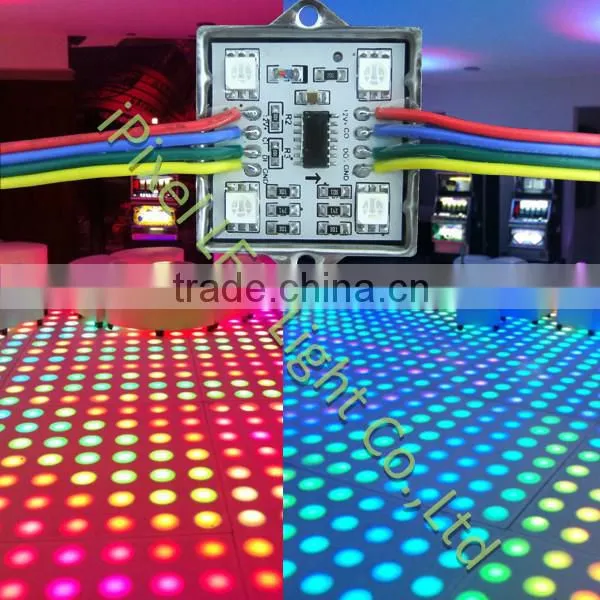

1. Each dot is digitally controlled, per PCS led module with 1IC and 4LEDs.

2.  All of the LEDs are controlled at once so you cannot have one pixel with the three LEDs different colors.

3. The pixels use 4 x 5050 RGB LEDs, with a 120 degree beam width.

4. RGB Pixels are digitally-controllable lights, you can make any color, and animate.

5. The pixels are connected by a 4-conductor cable. +12VDC, ground, data and clock.

6. You can easily cut the strand or attach more onto the end.

7. The total max brightness of all LEDs is about 8000mcd.

8. The LEDs are constant-current driven so you'll have even colors through-out the strand as long as you have a stable 12V supply.

9.  Each strand has 20 pixels in series usually! Each strand has two JST SM 3-pin connectors so you can connect multiple strands in a row,

as many as you wish, just watch for how much current they want.

10. Brand: iPixel LED.

FEATURE:

PICTURES:

We also have other types module: like single color, RGB, WS2801 3LEDs/pcs led modules

CONNECTION WAY:

SPI signal: LED Modules + LED power supply + LED controller

DMX control: LED Modules + LED pwer supply + DMX Controller + DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...

(offline / PC online)

LED power suppply: Meanwell power supply, T- series, A- series power supply...

(waterproof / non-waterproof)
