Home > Transportation > Forklifts & Parts > Forklift > Two Stage Full Free Mast Diesel Forklift Truck in Block Making Machine
Two Stage Full Free Mast Diesel Forklift Truck in Block Making Machine
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Vmax
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QT6-15 Concrete Block Making Machine of Used Forklift for Sale at Block Making Prodcution LineUS$ 10,000 - 20,000MOQ: 1 Set -
3 Ton Wheel Loader W136 With Cummins Engine, HYM Concrete Block Making MachineUS$ 18,000 - 26,000MOQ: 1 Set
-
Wheel Loader 3t , Used Wheel Loader at Block Makin Machine for Brick MachineUS$ 18,000 - 26,000MOQ: 1 Set
-
All Kinds of Cement Silo for Block Making Machine 20T/30T/50T/60T/80T/100T/120TUS$ 6,500 - 8,000MOQ: 1 Set
-
Large Capacity Cement Screw Conveyor Use for Block Making MachineUS$ 1,500 - 3,000MOQ: 10 Sets
Condition
New
Place of Origin
Fujian, China
Brand Name
Vmax
Model Number
HYM30
Type
Powered Pallet Truck
Power Souce
Diesel Engine
Rated Loading Capacity
3000kg
Max. Lifting Height
6000mm
Min. Lifting Height
3000mm
Fork Length
1070mm
Fork Width
122mm
Overall Dimensions
2505*1160*2070
Certification
ISO
After-sales Service Provided
Overseas service center available
*forklift truck Load capacity 3000kg
*3M lift height,1.07m fork,solid tyres.
*12months warranty
*used for block machine
1.THE Specification:
| SPECIFICATION 2-3.5 Ton Diesel Forklift Trucks | ||||||
| Model | CPC20/CPCD20 | CPC25/CPCD25 | CPC30/CPCD30 | CPC35/CPCD35 | ||
| Power type | Diesel | |||||
| Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | |
| Load center | mm | 500 | ||||
| Lift height | mm | 3000 | ||||
| Free lift height | mm | 285 | 290 | 200 | ||
| Fork size | mm | 920×122×40 | 1070×125×45 | 1070×125×45 | 1070×150×50 | |
| Mast tilt angle | deg | 6/12 | ||||
| Front overhang | mm | 472 | 482 | |||
Exterior Size | Length to face of fork | mm | 2515 | 2575 | 2695 | 2715 |
| Overall width | mm | 1150 | 1225 | |||
| Mast lowerd height | mm | 1995 | 2070 | |||
| Mast extended height | mm | 4030 | 4250 | |||
| Overhead guard height | mm | 2070 | 2090 | |||
| Turning radius | mm | 2170 | 2230 | 2420 | ||
| Min.right angle aisle width | mm | 1930 | 2010 | 2120 | ||
Speeds | Drive speeds | km/h | 17/19.5 | 18/19.5 | 19/20 | |
| Lifting speeds | mm/s | 500/530 | 470/520 | |||
| Lowering speeds | mm/s | ≤600 | ||||
| Max.grade ability | % | 19 | 18 | 15 | ||
| Total weight | kg | 3400 | 3780 | 4350 | 4910 | |
| Tires | Frot | 7.00-12-12PR | 28×9-15PR | |||
| Rear | 6.00-9-10PR | 6.00-9-10PR | ||||
| Wheeslbase | mm | 1600 | 1700 | |||
| Tread | Frot | mm | 970 | 1000 | ||
| Rear | mm | 970 | ||||
| Hold unde mast | mm | 110 | 135 | |||
Engine | Model | Xinchai C490BPG/Isuzu c240 | A495BPG/4JG2 | |||
| Rated output | kw/rpm | 37/2650 | 42/2650 | |||
| Rated torque | N.m/rpm | 148/2000 | 174/1850 | |||
| No.of cylinder | 4 | 4 | ||||
| Displacement | L | 2.54 | 2.98 | |||
| Fuel tank capacity | L | 52 | ||||
2. The Introduction:
Three alternatives of engine: Imported Isuzu C240, Yanmar 4TNE92/94/98 engine, and domestic Xinchai 490/495. Economical but powerful enough. 2.Transmission: with TCM technology. 3.Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low tensional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving. 4.The optional imported engines meet EU stage-III mission control regulation and obtain EPA accreditation.

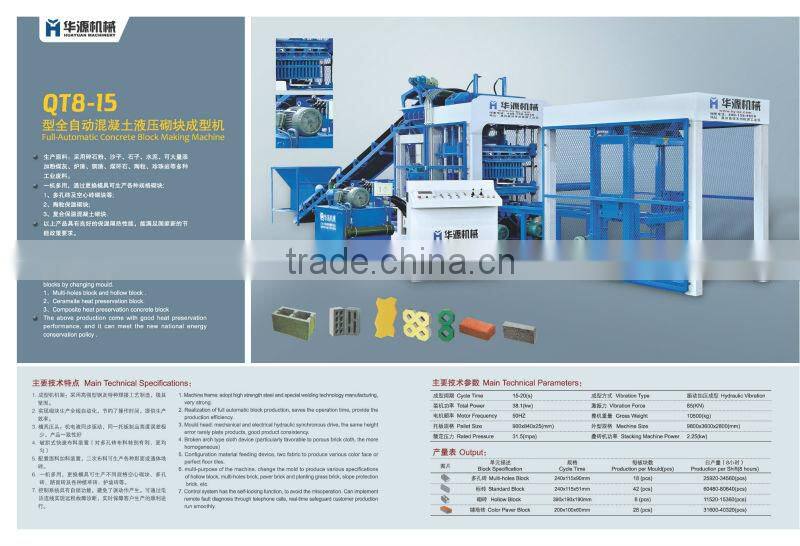

3. Recommend block making machines:

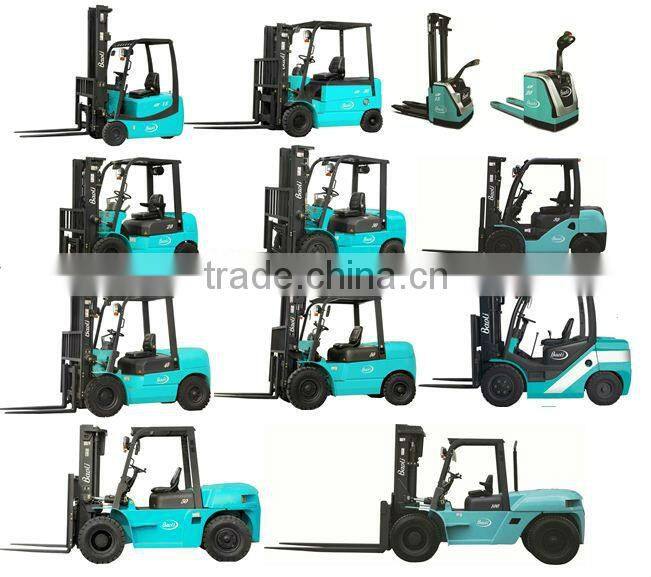

4.Our Customers From the World
5.Pls don`t hesitate to contract me by following
