1) wheel loader
2) 3.2Ton loader,10Ton operating weight
3) Selfmade cabin,arm,frame
4) block making machine
5)block making

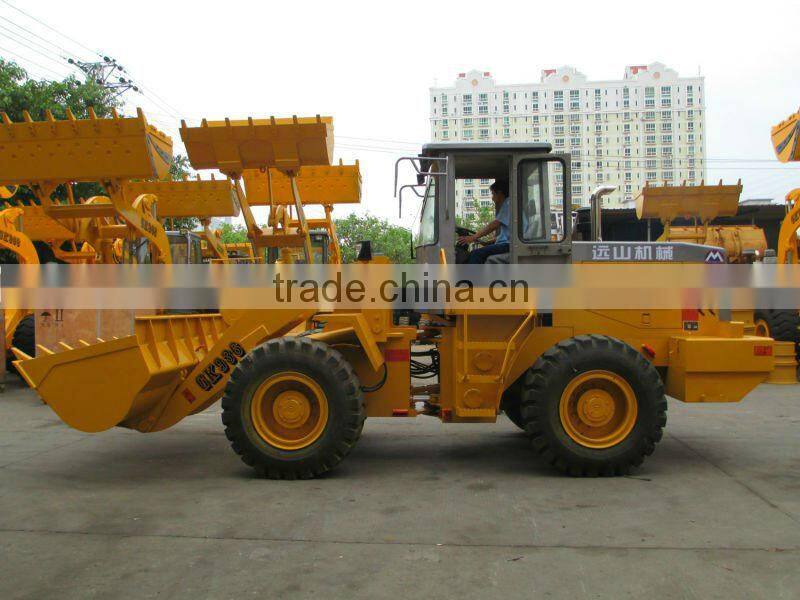

Wheel loader 3T:
Instrument function:
1, 200kg to 10T high quality loader scale use mini printer, can prevent the dirty from the working place, can print the date, time and the weight.
2, 200kg to 10T high quality loader scale can show the tare, zero and so on.
3, 200kg to 10T high quality loader scale can storage the weight data and lots of information.
4,Large screen display, easy to operation.
5, 200kg to 10T high quality loader scale suit for all kinds of wheel loaders.
6, 200kg to 10T high quality loader scale can storage the data automatically, can’t miss the data.
Wheel loader 3T parameters
Accuracy |
0.1-1% |
Working voltage |
12+-30%VDC |
Working current |
200mA-300mA |
Working temperature |
High temperature proof, can proof 1000°C |
Connection of sensors |
Used four cables, automatic compensation |
Display |
Large LCD display |
Time |
Can show the current time and date. |
Keyboard |
Used touch buttons, keys fluorescent settings, suit for night operations |
Division |
1Kg,10Kg,20Kg,50 Kg,100 Kg, |
Min. Capacity |
200 Kg |

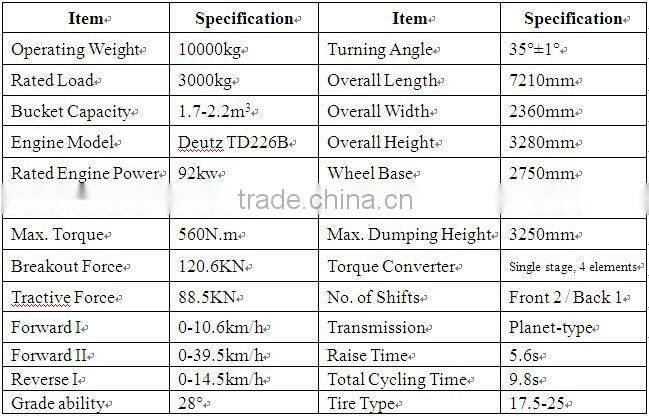

Features and specifications of wheel loader 3t :
Rated load 3.0tons, standard bucket capacity 1.7M3, Equipped with Deutz TD226B-6G engine or Cummins engine, super-long dumping distance and reach, Optimized pilot controller and various working device with automatic leveling ensures meeting different customers
Main Features:

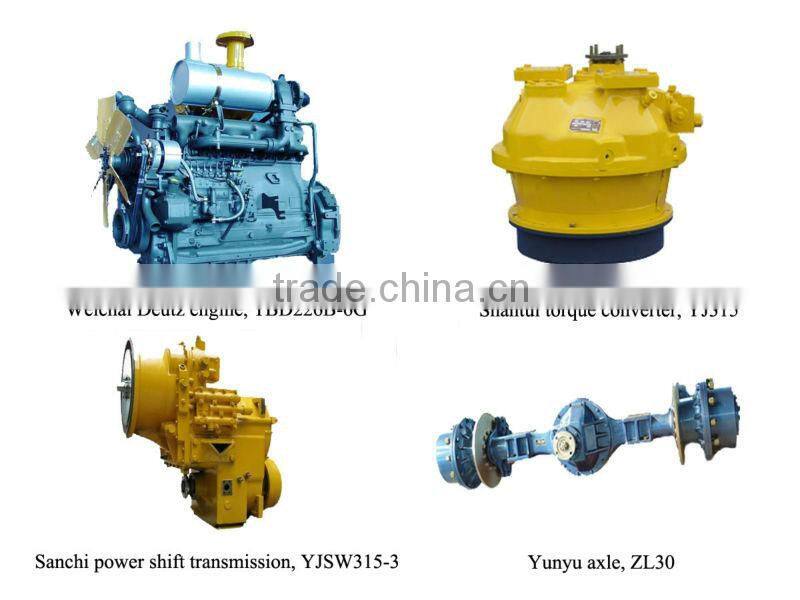

1. Equipped with Deutz TD226B-6G diesel engine, which is of high power reserve, excellent performance and reliability;
2. Has single-turbine, four-element hydraulic converter and planetary type power shift transmission (forward 2 reverse 1). The whole machine matches rationally and is powerful and efficient;
3. Fully hydraulic steering system with load sensing ,decrease the loss of power and enhance the work efficiency; and the articulated frame steering with the hinge joint set close to the centre, the short turning radius, and the tire tracks overlapping each other, all the designs reduce the rolling resistance and prolong the useful life of the tires.
4. Z-bar loader linkage is capable of powerful digging force and high dump height;
5. All-wheel, dual-line, disc-caliper-type brakes, rear mounted air-reservoirs, ensure safety and reliability;
6. Quenched integral cutting edge bucket, more strength, better wearing resistance and longer life.
Recommend block making machines:
