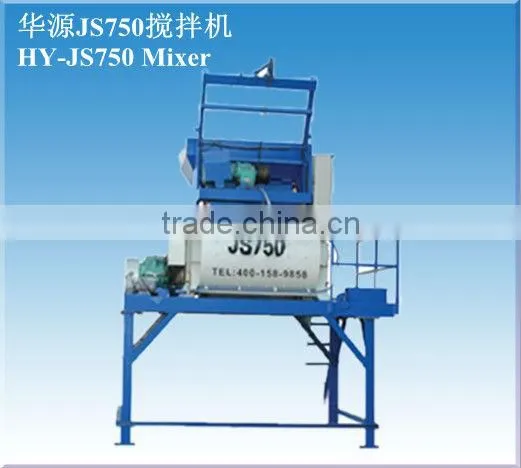

Huayuan JS750 Cement Mixer Machine for ConstructionUS$ 10,000 - 14,000MOQ: 1 Set
-
JS750 Industrial Cement Mixer for Block Making MachineUS$ 10,000 - 14,000MOQ: 1 Set
-
JS Series Portable Concrete Mixer for Sale JS750US$ 10,000 - 14,000MOQ: 1 Set
-
Huayuan Small JS500 Concrete Mixer Machine PricesUS$ 6,200 - 7,000MOQ: 1 Set
Specifications
Stone cement miexer machine1.New stone cement mxier
2.Self loading cement stone mixer
3.mini stone cement mixer machine
Stone cement miexer machine
1.New stone cement mxier
2.Self loading cement stone mixer
3.mini stone cement mixer machine
Huayuan stone cement mixer machine prices
1.Technology Parameters of concrete mixer JS500
| Type | JS500 |
| charging capacity(L) | 800 |
| dicharging capaicity | 500 |
| Productivity(m3/h) | ≥25 |
| Maximum diameter of / Cobble | 80 |
| Bone material (mm) /Crushed stones | 60 |
| Mixing fan / Turning speed(r/min) | 35 |
| / Quantity | 2*7 |
| Mixing engine / Type | Y180M-4 |
| / Power(kw) | 18.5 |
| Mixing engine /Type | YEZ132S-4-B5 |
| / Power(kw) | 5.5 |
| Pump / Type | 50DWB20-8A |
| / Power(kw) | 0.75 |
| Hosting speed of material holder | 18 |
| Outside size(mm) / Transport state | 3050*2300*2680mm |
| / Working state | 4461*3050*5225mm |
| Weight (kg) | 4000 |
2.JS 500 stone cement mixer introduction
1.The cement mixer is such a machine that turns cement, thick and thin aggregate, such as broken stone, pebble, sand, and water into cement mixture.
2.The JS500 cement mixer is a type of double shafts forced concrete mixer which has two mixing shafts inside the mixing drum.
3.When the JS500 cement mixer is working, both the two shafts are running. The theoretical productivity of the JS series concrete mixer varies from 25M3/h to 120M3/h.
4.The JS500 cement mixer can make hard drying, plastic, fluidity, light aggregate concrete and all kinds of mortar.
3.Type & usage of JS500 stone cement mixer
This machine is a concrete mixer,suitable for medium and small factories and industrial or civil engineering like brick making ,highway ,water conservancy,wharf etc.It could mix hard concrete,plastic concrete,floating concrete,light bone material and cobble.It could work independently or equeipped with PL1200 material combing machine to organize a simple mixing station .It's also the main machine of HZS50 mixing station..
4.More information for JS 500 stone cement mixer :
1).The concrete mixer is the advanced, ideal type at home and abroad. Good mixing quality, high automation and efficiency, low energy consumption and noise as well as easy operation are the advantages of it.
2).Besides, it also has the strengths of high speed of discharging, long service life of liner and blades and easy maintenance.
3)Applies for the mix of plastic concrete, dry concrete, light weight aggregate concrete and different mortars.
4).Mtorized discharge port is applied in the machine, which makes it could be matched with dump car.
5).So it is the ideal machine for construction site and prefabrication
