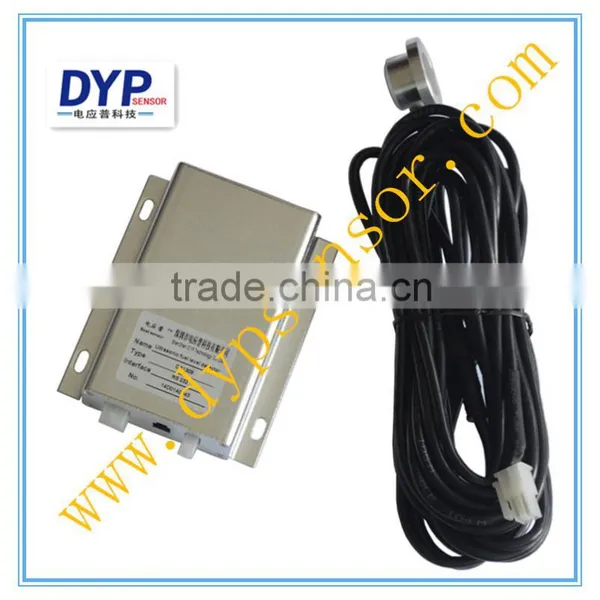

It is outer adheres on the bottom of the fuel tank and no need directly to contact with the fuel level that could be real-time detection the height of fuel level. It could be widely used in various types of vehicles for fuel measuring and monitoring, also could be combined with GPS/GPRS communication technology, through the computer software management platform to achieve scientific management vehicles, prevent fuel theft behavior and save the vehicle operating cost.
Features:
1) Measuring precision; 2) Good stability; 3) Easy installation; 4) Simple application;
5) Strong antistatic ability (EMC); 6) With standardization data interface; 7) Alarm output;
Technical parameters:
Operating Voltage | DC9V-36V | |
The power supply ripple | Less than 100mV | |
Operating current | Less than 55mA | |
Measuring distance | 3cm to 100cm; pressure-bearing range: -0.1MPa~32MPa | |
Resolution | 0.1mm | |
Measurement accuracy | 0.5% | |
Temperature compensation range | -40 °C- +80 °C | |
Output mode: | ||
Analog output | Voltage output (default) | 1-5V (corresponding 0-100cm) |
Current output (optional) | 4-20mA (corresponding 0-100cm) | |
Digital output | RS232(default) | See the “communication protocol” |
RS485(optional) | ||
Anti-theft alarm output | need external connection a alarming horn to achieve alarm | |
Install method | bottom of fuel tank/can, water tank | |
Operating temperature | -40 °C - +80 °C | |
Storage temperature | -50 °C - +100 °C | |
Size | 102*48*25mm (with mounting holes) | |
