Specifications
It is a new-type intelligent products and designed is based on the non-contact ultrasonic detection technology.Description:

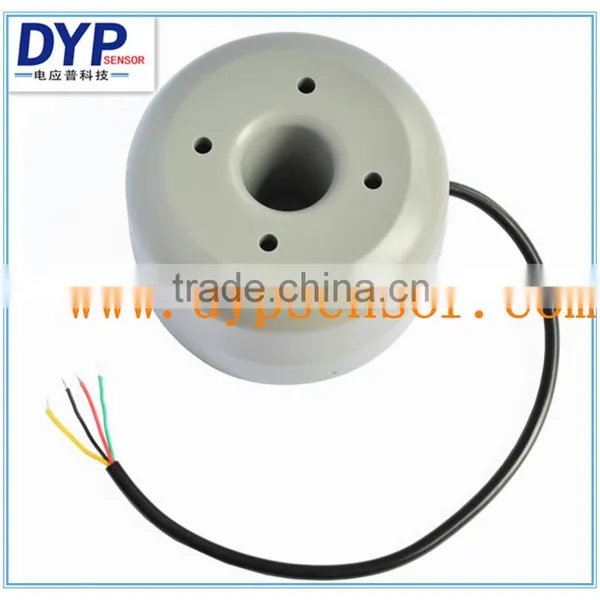

This ultrasonic liquid controller is a new-type intelligent products and designed is based on the non-contact ultrasonic detection technology. It could measure the height of liquid level accurately so that accurately control the volume of liquid in container. It is widely used in various situations where needed non-contact precision measuring the height of liquid level.
Features:
1) Using non-contact inductive, with features of strong anti-interference and reliability, safe and convenient and low-power;
2) Using lead-free interconnect materials which is green environmental protection, lossless and long service life;
3) With the function of intelligent induction, output and control and could easily cope in a variety of applications;
4)Using the common serial interface and RS485 interface to transmit data, which is easy to connect with other devices;
5) Wide range of application. It is widely used in measuring the height of liquid level in various containers and to determine the liquid capacity;
Technical parameters:
1) Operating voltage: DC 3.3V – 12V;
2) The ripple of power supply: less than 50mV;
3) Operating current: less than 6mA;
4) Resolution: 1mm;
5) Measurement accuracy: 5mm;
6) Blind zone: 25cm;
7) Detection range: 25 – 400cm;
8) Temperature compensation range: -20°C - +60°C;
9) Detection angle: less than 20 degree;
10) Response time: less than 50ms;
