Serial 2in8out Video Distribution Amplifier

Beijing Briar Technology Co., Ltd.
Serial 2in8out Video Distribution Amplifier thumbnail-1
Serial 2in8out Video Distribution Amplifier photo-1
US$ 15 - 20 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SDG
Model Number:
SD-2V8S
Type:
Professional Amplifier
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SDG
Model Number SD-2V8S
Type Professional Amplifier
Channels Other
Place of Origin Beijing, China

Serial 2in8out Video Distribution Amplifier

Product Description



DESCRIPTION

2 IN 8 OUT ultrathin video distributor ultrathin, high isolation, low power, stable and reliable, input 4 channels video signal, distribute 8 channels output.
The device distribute 2 channels video signal into 8 channels output equably, which have signal amplification function.
1, According to actual situation, the problem that traditional video distributor transmit short distance to
Q9 socket, is difficult to install and take down is solved.
2, Be different from video distributors in the market, the volume of the device is small, and convenient to transport.
3, Main components are paster ones, and use Ta capacity, which can promise stable signal indication;
4, Module group, through overlay, we can realize 2 IN 8 OUT(1 module), 4IN 16OUT(2 module), 6IN 24OUT(3 module), 8IN 32OUT (4 module) etc,...
5, The device has low power consumption, and outlay high-tension supply power transformer, which make weak current and strong current be devided, so that make sure safe use.
TECHNICAL PARAMETERS

                                                                                                                                                                                                                     Technology indication

Power supply

DC5V

Video input

1Vp-p(75Ω load, unbalanced BNC interface

Video output

1Vp-p(75Ω load, unbalanced BNC interface

Frequency response

10 Hz-7.5MHZ 0.5dB

SNR(Signal to Noise Ratio)

>60dB

Video bandwidth

12MHz(-3dB)

Working Temperature

-10℃~55℃

Working Humidity

≤90%RH(Non-condensing)

contour dimension

110mm(L)*88mm(W)*35 mm(H)

Weight

About  220g

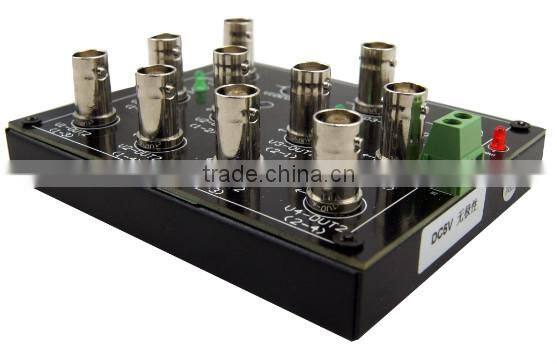

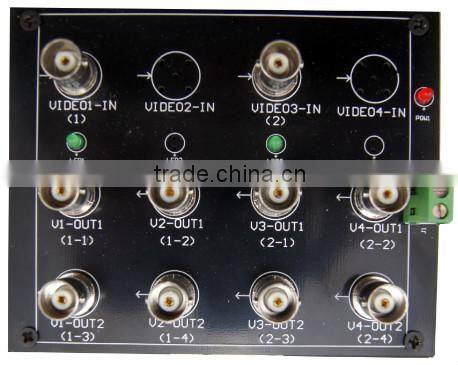

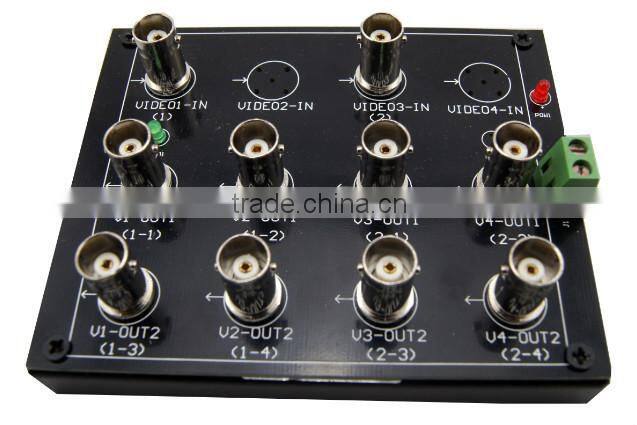

PICTURE SHOW







Serial 2in8out Video Distribution Amplifier





Serial 2in8out Video Distribution Amplifier







                 Serial 2in8out Video Distribution Amplifier



Packaging & Shipping

 Packing Details: Box or As your requirement

 Delivery Details: Within2~3 days after payment

Serial 2in8out Video Distribution Amplifier
