1, Product Introduction
Based on IEEE 1901 technology, the latest support in coaxial cables and telephone lines and other HD video and high-speed data transmission on the medium. The characteristics of long transmission distance, high speed of communication, multimedia business support, support network advantages.

2, Light Products

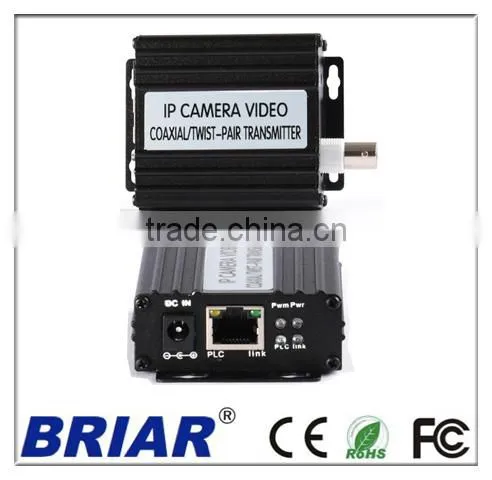

Equipped with 4 LED indicators:
Coaxial: physical link connection indicator light: when the Coaxial cable, twisted pair physical lines connecting the light is normally on, if the indicator light flashing or would you please check the transmission lines.
LAN: Ethernet interface connection/activity indicator: when the Ethernet connection has been established, the light is normally on; When the Ethernet connection has a data activities, the light is flashing. As shown in figure 2-2

3, The Main Features:

Main characteristics are as follows:
1. Support multiple node in the network. Can simultaneously access on a cable for up to 20 (equipment) access network cameras terminal equipment;
2. The transmission distance is long. For ordinary SVY75-5 cables, the maximum transmission distance can reach 2 km, and maintain the TCP/IP throughput is not less than 30 MBPS;
3. The high speed of communication. Based on SVY75-5 circuit, the measured throughput data of TCP/IP:
1) cable length is less than 400 m - 92 MBPS;
2) the cable length is less than 1000 m - 74 MBPS;
3) cable length is less than 2000 m - 30 MBPS;
4. Easy to use and support plug and play, without changing any configuration network cameras and other network terminal equipment;
5. Can make full use of the original coaxial cable, power lines or telephone wiring, communications media, such as the need to laying Ethernet, greatly simplifies the network deployment, reduces the network installation cost;

4, Product Performance Parameters

5, Schematic Diagram

1)

2)

3)

6, Note:
Please read equipment instructions carefully before using this equipment
In strict accordance with the procedures installation and debugging,
Pay attention to equipment waterproof, moistureproof, handle with care;
Please use the stable voltage DC12V power supply;
Please install the appropriate height, so as not to damage or get an electric shock;
Before turning on the power supply, according to the panel, as shown in the chart, please connect cable;
Check whether the cable connection, in case of poor contact;
Equipment failure, do not open, please contact my company's after-sales service
