Home > Products > Ultrasonic Distance Sensor > Waterproof ultrasonic sensor distance measuring moduleDistance meter moduleSensorsUltrasonic distance measuring sensor module
Waterproof ultrasonic sensor distance measuring moduleDistance meter moduleSensorsUltrasonic distance measuring sensor module
US$ 11.28 - 15.94
/ Piece
100 Pieces(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
Ultrasonic sensor for distance measurementDistance meter moduleSensors Waterproof ultrasonic sensor distance measuring module
-
Waterproof ultrasonic distance sensorDetectorUltrasonic distance sensorDistance meter moduleWaterproof ultrasonic sensor module
-
Waterproof ultrasonic range measurement sensor moduleUltrasonic distance sensorUltrasonic detectorWaterproof ultrasonic sensors
-
Waterproof ultrasonic sensor moduleNon-contact ultrasonic range measurement sensor moduleWaterproof ultrasonic sensor distance
-
Ultrasonic range measurement sensor moduleLeddisplay boardUltrasonic sensor for distance measurUltrasonic distance sensor module
-
Long range ultrasonic sensor module (8cm-8m)Height sensor for measurementUltrasonic detectorUltrasonic distance measuring module
Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | DYP-ME007Y | Usage | Position Sensor | |
| Theory | Ultrasonic Sensor | Output | Digital Sensor |

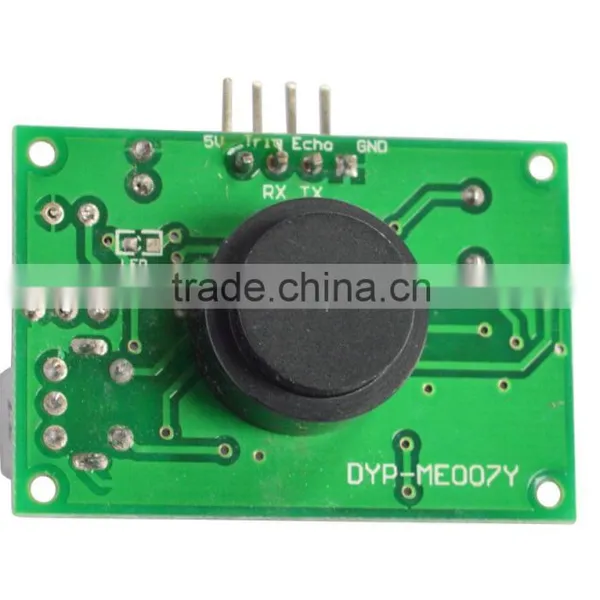

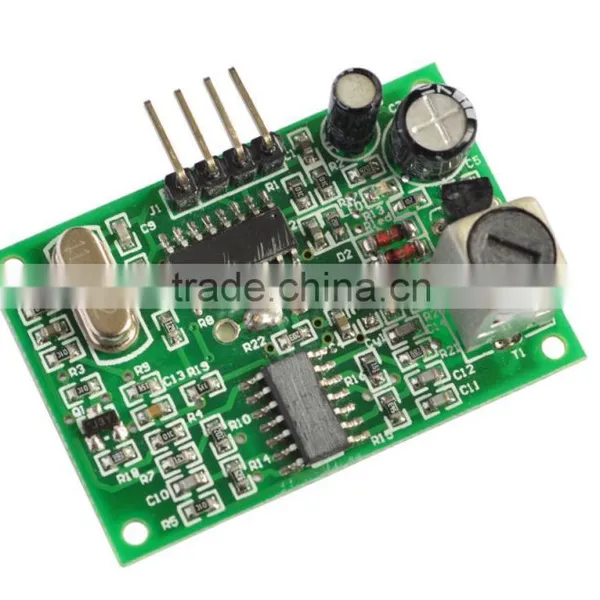

Product Description
This ultrasonic sensor provides a easy method for distance measurement,with a 30cm to 4.5m detecting range,it is widely used in fields like industrial,auto,teaching and robots,etc.
Descriptions:
1 This ultrasonic sensor is a non-contact distance measurement module;
2 Electronic brick compatibe interface and breadboard friendly;
3 Waterproof, four-pin on board(GND,OUT,IN and VCC);
4 Designed for easy modular project usage with industrial performance;
Specifications:
1 Detecting Range: 30cm - 4.5m;
2 Supply Voltage: 5V DC;
3 Working Current: less than 15mA;
4 Resolution: about 1 cm;
5 Ultrasonic Frequency: 40kHZ;
6 Output mode: PWM(default), UART serial output (optional), Switching output (optional);
7 Dimension: 41mm X 28mm X 1mm ;
