Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | DYP-ME007Y-X | Usage | Position Sensor | |
| Theory | Ultrasonic Sensor | Output | Digital Sensor |
Product Description

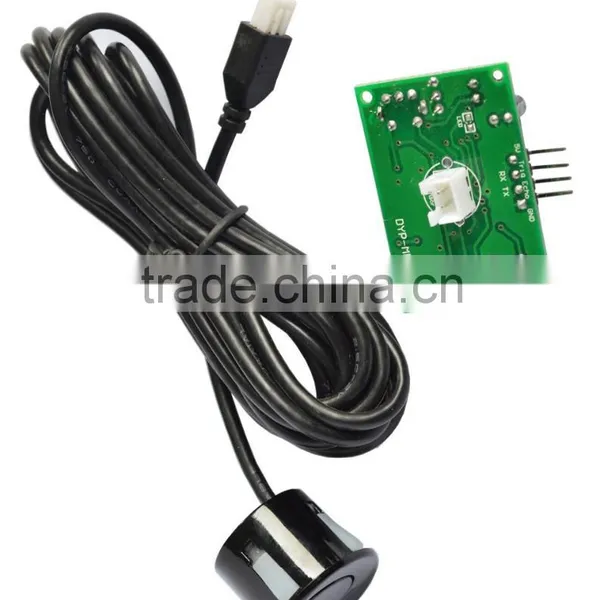

This ultrasonic sensor provides non-contact distance measuring of 30cm to 4.5 meters range. This ultrasonic sensor module is applied for distance measuring like: programmable car obstacle avoidance, robot obstacle avoidance, teaching apparatus, security and industrial control and more.
Features:
1 Low voltage, low power consumption;
2 High accuracy, wide measurement range;
3 Waterproof design, compact size, easy to use;
4 Applications: Robot obstacle avoidance, security, industrial control, etc.;
Specifications:
1 Operating Voltage: DC 5V;
2 Operating Current: less than 15mA;
3 Frequency: 40kHz;
4 Measuring Range: 30cm-4.5 meters;
5 Output Mode: PWM(default),UART serial output(optional),Swithcing output(optional);
6 Response Time: 100mS;
7 Accuracy: about 1cm;
8 Operating Temperature: -10-60°C;
9 Storage Temperature: -20-80°C;
10 Board Size (L x W): Approx. 1.6 x 1.1 inch;
11 Cable Length: Approx. 95 inch;
