Home > Products > Ultrasonic Distance Sensor > Ultrasonic Distance Measuring Sensor ModuleUltrasonic Sensor Distance MeterUltrasonic Distance SensorUltrasonic Sensor Module
Ultrasonic Distance Measuring Sensor ModuleUltrasonic Sensor Distance MeterUltrasonic Distance SensorUltrasonic Sensor Module
US$ 42.74 - 58.87
/ Piece
100 Pieces(Min. Order)
- Shenzhen
- Money Gram Credit Card
You May Like
-
Long Range Ultrasonic SensorUltrasonic Sensor for Distance MeasurementUltrasonic Distance SensorUltrasonic Sensor Module
-
Ultrasonic SensorUltrasonic Distance SensorUltrasonic Sensor ModuleUltrasonic Sensor DistanceWaterproof Ultrasonic Sensor Module
-
Waterproof Ultrasonic Sensor ModuleUltrasonic Sensor for Distance MeasurementUltrasonic Distance SensorUltrasonic Sensor Module
-
Long Distance Ultrasonic SensorHeight SensorHigh Accuracy Ultrasonic Sensor ModuleUltrasonic Sensor for Distance Measurement
-
Waterproof Ultrasonic Sensor Distance Measuring ModuleUltrasonic Range Measurement ModuleWaterproof Ultrasonic Sensor Module
-
Long Range Ultrasonic Sensor ModuleHeight Sensor for MeasurementDigital Ultrasonic SensorUltrasonic Range Measurement Module
Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |

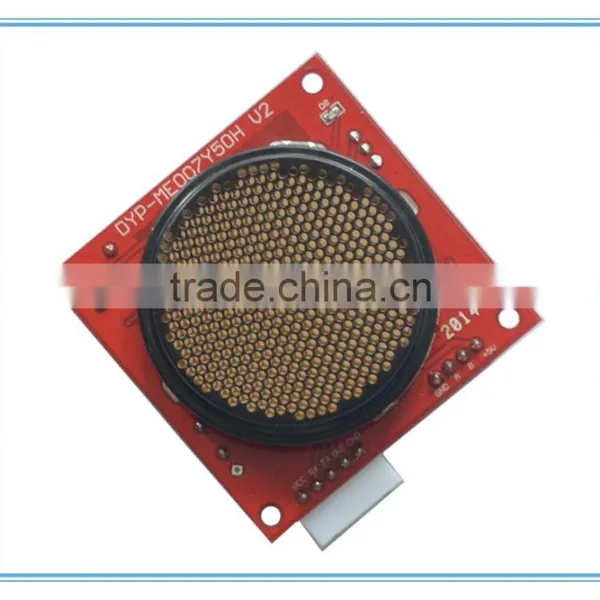

| Model Number | DYP-ME007Y50H V2 | Usage | Position Sensor | |
| Theory | Ultrasonic Sensor | Output | Digital Sensor |
Product Description
This ultrasonic sensor from sensComp's and provides a easy method for distance measurement, with a wide detecting range. Ultrasonic transducers are widely used in fields like industrial, auto, teaching and robots, etc. This ultrasonic sonsor's maximum detecting distance is about 8m. It's really a powerful ultrasonic transducer module.
Description:
1 This ultrasonic sensor is a non-contact distance measurement module;
2 Small blind zone;
3 Long detecting distance, high resolution;
4 Low power comsumption;
5 Designed for easy modular project usage with industrial performance;
Specifications:
1 Detecting Range: 8cm-8m;
2 Supply Voltage: 5V DC(default), 6-12V DC (optional);
3 Standby current: <10mA;
4 Transient Current: about 250mA;
5 Resolution: 1mm (for UART serial);
6 Interface Mode: PWM and UART serial (default), RS485 (optiona);
7 Ultrasonic Frequency: 50KHz;
8 Detection Angle: 15 degrees (-6dB);
9 Working Mode: Single echo mode and multi echo mode;
10 Working Temperature: -20°C to 75°C;
