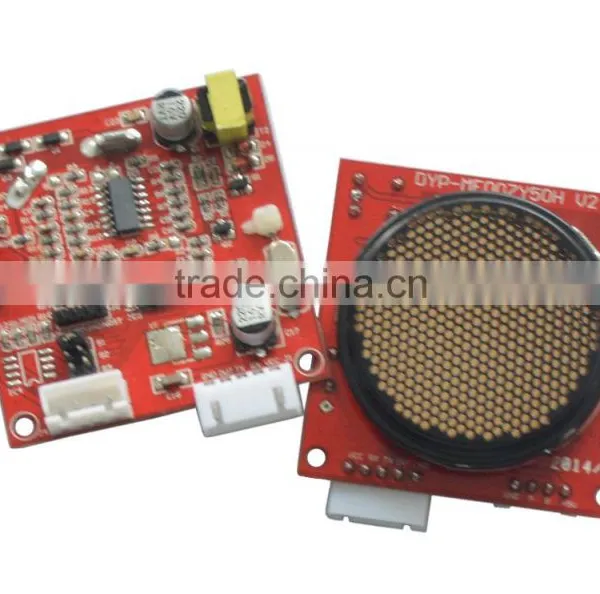

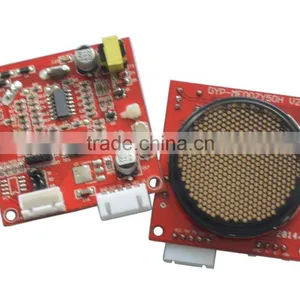

This ultrasonic sensor provides a easy method for distance measurement, with a wide detecting range. Ultrasonic transducers are widely used in fields like industrial, auto, teaching and robots, etc. This ultrasonic sonsor's maximum detecting distance is about 8m. It's really a powerful ultrasonic transducer module.
Description:
1 This ultrasonic sensor is a non-contact distance measurement module;
2 Small blind zone;
3 Long detecting distance, high resolution;
4 Low power comsumption;
5 Designed for easy modular project usage with industrial performance;
Specifications:
1 Detecting Range: 8cm-8m;
2 Supply Voltage: 5V DC (default), 6-12V (optional);
3 Standby current: <15mA;
4 Transient current: about 250mA;
5 Resolution: 1mm;
6 Interface Mode: PWM and UART (default), RS485 (optional);
7 Ultrasonic Frequency: 50KHz;
8 Detection Angle: 15 degrees (-6dB);
9 Working Mode: Single echo mode and multi echo mode;
10 Working Temperature: -20°C to +75°C;
11 PCB Size: Approx. 50 x 50mm;
