Product Details
| Place of Origin | Beijing, China | Brand Name | SDING,OEM,ODM | |
| Model Number | SD-1X4M |
Product Description

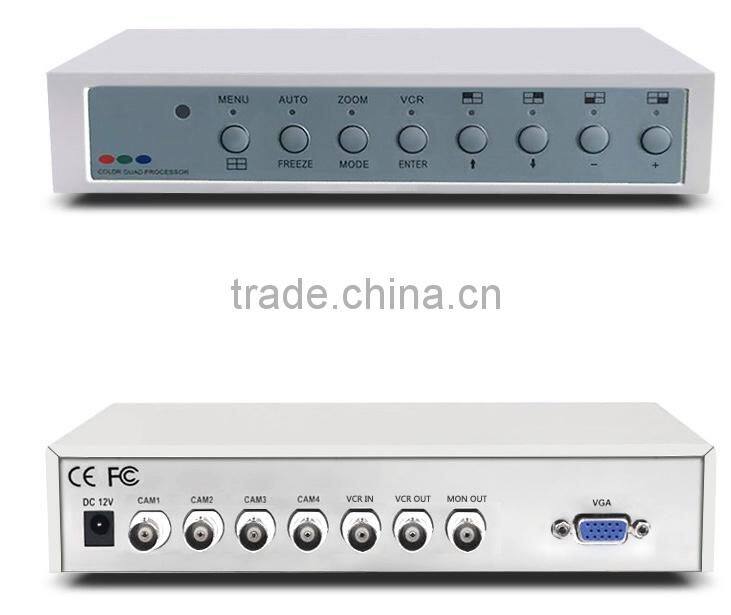

BRIAR 4ch Quad Multiplexer device 4signal input
Function:
1. Connect the camera's video signal path 1-4, adjustable brightness, contrast, color and sharpness
2. High resolution:
NTSC standard: 720 * 480 60HZ PAL format: 720 * 576 50HZ
3. Diversification display mode:
Four pictures, two pictures, single pictures, PIP, auto-switching mode
4. High performance picture freeze functions:
Flashing Screen Capture
5. The high-performance image electronic zoom function:
Choose an enlargement area
6. Diverse character laminated information:
Camera title, real-time and the alarm date / video loss / motion detection information
7. Provide a variety of alarm mode
Alarm input motion detection video loss alarm can record 60 times Report buzzer
8. Purpose - displaying 4 camera images on a single screen
Specification:
Model | SD-1X4M |
Name | 4 channels real time color quad processor |
Video Format | NTSC/PAL |
Screen refresh rate | PAL: 200 frames / second; NTSC system: 240 frames / sec |
Resolution | PAL 720×576,NTSC 720×480 |
Video input | 4 channel video signal input, peak: 1Vp-p, impedance: 75Ω |
Video output |
1 channel Main Monitor output, peak: 1Vp-p, impedance: 75Ω 1 channel voice Monitor output, peak: 1Vp-p, impedance: 75Ω |
Auto Switch time | 0~99s |
Event record | Support 60 Group Event record |
Alarm records | No |
Language | English |
Power | 4.5W(350mA) |
Input voltage | DC 12V |
Temperature range | -10°C~ +60°C |
