Ultrasonic Range Sensor Module for RobotLong Range Ultrasonic for Distance MeasurementUltrasonic Range Measurement Sensor Module

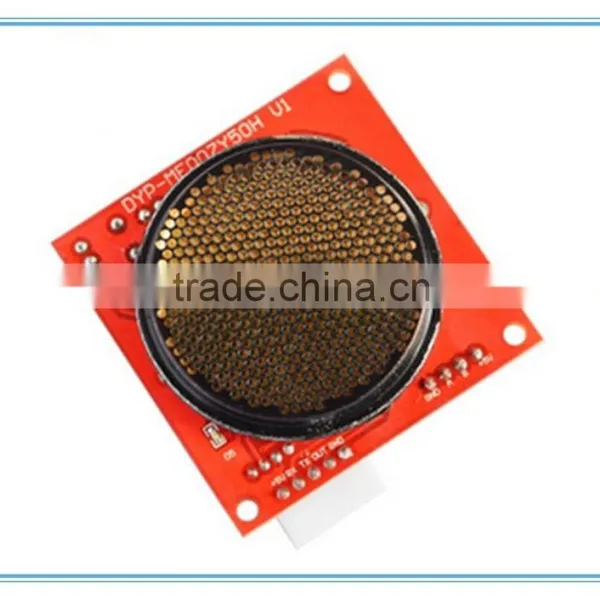

 This ultrasonic sensor from sensComp's and provides a easy method for distance measurement, with a wide detecting range. Ultrasonic transducers are widely used in fields like industrial, auto, teaching and robots, etc. This ultrasonic sonsor's maximum detecting distance is about 8m. It's really a powerful ultrasonic transducer module.

Description:

1 This ultrasonic sensor is a non-contact distance measurement module;

2 Small blind zone;

3 Long detecting distance, high resolution;

4 Low power comsumption;

5 Designed for easy modular project usage with industrial performance;

Specifications:

1 Detecting Range: 8cm-8m;

2 Supply Voltage: 5V DC(default), 6-12V DC (optional);

3 Standby current: <10mA;

4 Transient Current: about 250mA;

5 Resolution: 1mm (for UART serial);

6 Interface Mode: PWM and UART serial (default), RS485 (optiona);

7 Ultrasonic Frequency: 50KHz;

8 Detection Angle: 15 degrees (-6dB);

9 Working Mode: Single echo mode and  multi echo mode;

10 Working Temperature: -20°C to 75°C;

11 PCB Size: Approx. 50 x 50mm / 2 x 2 inch;
