Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |

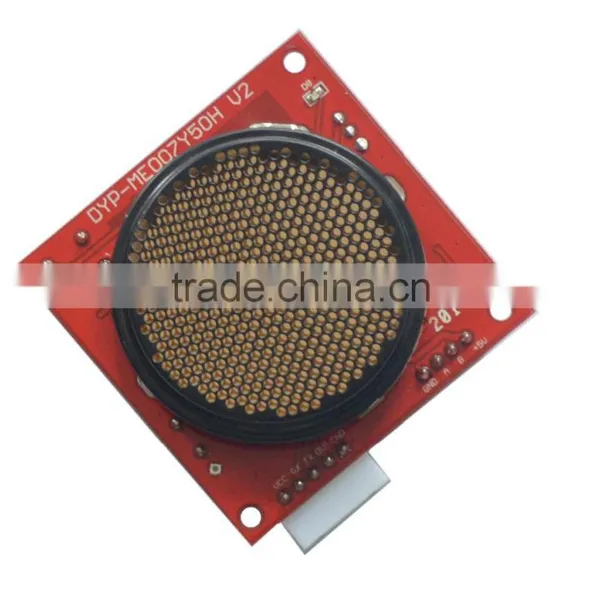

| Model Number | DYP-ME007Y50H V2 | Usage | Position Sensor | |
| Theory | Ultrasonic Sensor | Output | Digital Sensor |
Product Description
Description:
1 This ultrasonic sensor is a non-contact distance measurement module;
2 Small blind zone;
3 Long detecting distance, high resolution;
4 Low power comsumption;
5 Designed for easy modular project usage with industrial performance;
Specifications:
1 Detecting Range: 8cm-8m;
2 Supply Voltage: 5V DC(default), 6-12VDC (optional);
3 Standby current: <10mA;
4 Transient current: about 250mA;
5 Resolution: 1mm;
6 Interface Mode: PWM and UART (default), RS485 (optional);
7 Ultrasonic Frequency: 50KHz;
8 Detection Angle: 15 degrees (-6dB);
9 Working Mode: Single echo mode and multi echo mode;
10 Working Temperature: -20°C to +75°C;
11 PCB Size: Approx. 50 x 50mm / 2 x 2 inch;
