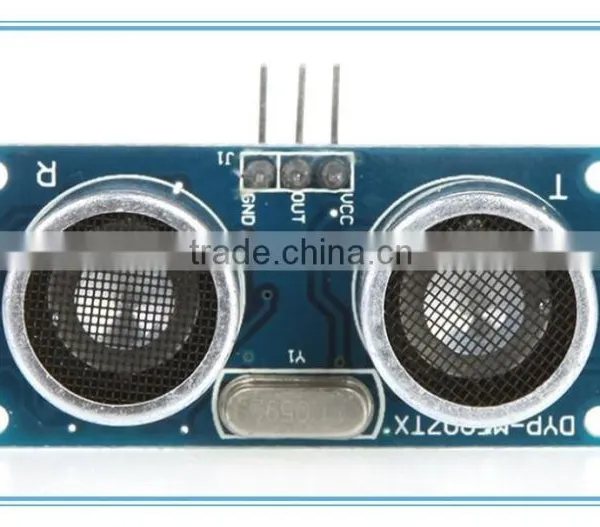

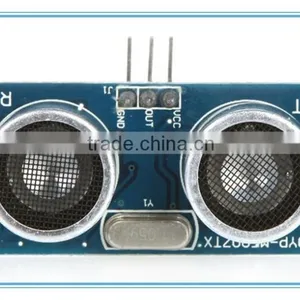

Features:
High performance non-contact distance sensor module.
Small and easy to use.
Low voltage and low power consumption.
Wide measurement range: 0.02 ~ 4.00m.
High accuracy: 1cm.
Show a steady measurement result without direct contact with the measured object.
It can be applied for measuring the distance between objects, programmable car obstacle avoidance, robot obstacle avoidance, security and industrial control, etc.
Specifications:
1) Operating voltage: DV 5V
2) Operating current: less than 15mA
3) Frequency: 40KHz
4) Max distance: 4m
5) Min distance: 2cm
6) Communication format: 9600,n,8,1
7) Response time: 100MS
8) Accuracy: 1cm
9) Angle: less than 30 degree
10) Operation temperature: -10 ~ 60C
11) Storage temperature: -20 ~80C
12) Item size: 4.5 * 2 * 1.5cm;
