Features:
1 Small and light appearance, it is easy to use;
2 It can be used with ultrasonic module, display the distance accurately;
3 It can set the output of switching value, with 3P, 4P, 5P three kinds of pins;
4 Suitable for industry, education, security and other fields;
Specifications:
1 Working voltage: DC 6-12V;
2 Working current: <45mA;
3 Maximum distance: 5M;
4 Accuracy: 1cm;

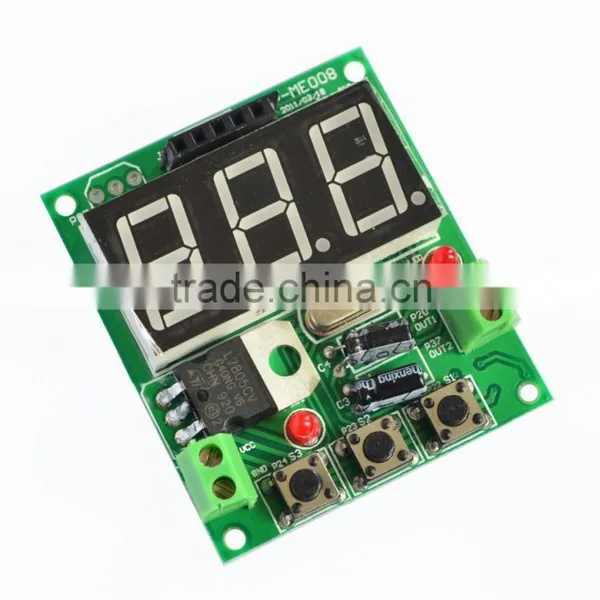

5 PCB size: 5.0 * 4.4 * 1cm;
Switch Output:
1 This module's outputs can be use-defined;
2 Press and hold S1 button for 3 seconds, showing LLL;
3 Press S1, it displays a number (001 e.g.), which is the asuring value. When the measured distance is less than this value,OUT2 will output a high level (4.5V). The min. measurement value is adjustable, press S2 to increase, S3 to decrease;
4 Press S1 again after the min. measuring value is set, it displays HHH, then press the S1 to indicate a number (200 e.g.), which is the max. measurement value. When the measuring distance is larger than this value, OUT1 will output a high level (4.5V). This Max. measuring value is adjustable, press S2 to increase, S3 to decrease;
5 When the max. measuring value is settled, press S1 to save. This device is designed with memory function when power off;
Note:
We are a professional sensor manufacturer and developer,all of product in our wensite are produced by ourselves,ensure quality,welcome to order!
