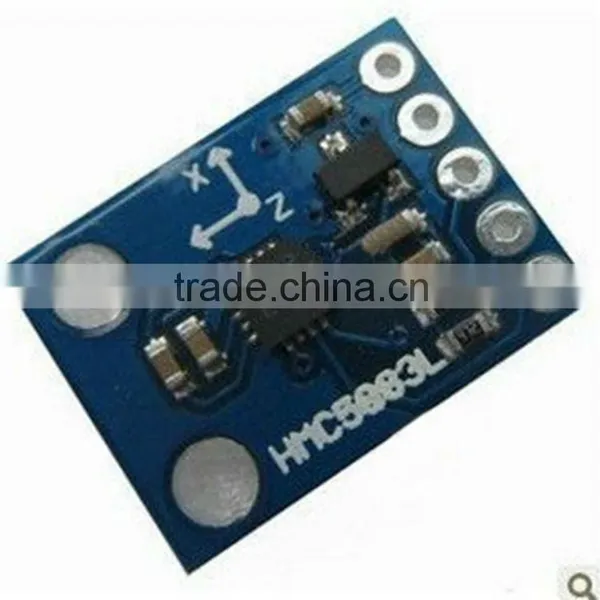

3-Axis Magnetic Electronic Compass Sensor ModuleHMC5883 Electronic Compass Digital Compass Module 3-Axis Magnetoresistive Sensor

Specifications

Description:

1) Color: Blue;

2) Material: Circuit board;

3) Power supply voltage: 3.3V / 5V;

4) Pin pitch: 2.54mm (100mil);

5) It's integrated resistors and capacitors the HMC5883L needed, read data via IIC port from external power, SDA, SCL and ground line;

6) Output interface: 2C digital;

7) Package: LCC;

8) Accuracy: 1~2 degree;

9) Built-in 12bit A/D, OFFSET, SET/RESET circuit;

10) Support automatic calibration procedure;

11) Power consumption sleepy mode: 2.5mA;

12) Measurement mode: 0.1mA;

13) Application: Smart cell phone, sport watch, handheld compass and car electronics;

14) Great for DIY project;
