Chinese Good Quality Automatic Welding Positioner/ Welding Table/ Turning Table
- 100 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- U type double axis positioner
- L type double axis positioner
- P type double axis positioner
- Welding Positioner
- 10 TON 3 axis welding positioner rolling turning flipping automatically welding machine 5/10/20 ton heavy industry machinery
- 5TON 3axis welding positioner rolling turning flipping automatically welding machine 5/10/20 ton heavy industry machinery
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | yaoqiang |
Model Number: | HB | Usage: | welding positioner | Dimensions: | customized |
Certification: | ISO and CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

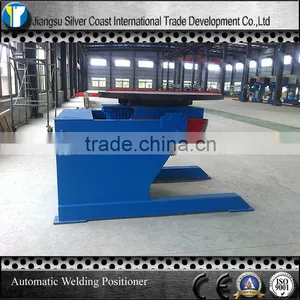

YQ Automatic Welding Positioner1.Structure types:fixed
2.The reverse:self locking function
Main features:
1.Equipment structure type:fixed
2.Equipment performance characteristics: rotary and turn over worktable;wokable
3.The turning speed governing way: ac frequency conversion stepless speed regulation
4.The reverse:self locking function
5.Electrical system: the remote control box control+(long 10m) or the pedal switch (was 5m) line
6.Applicable occasions: axis, the supplied pan-head, pipe, tube pipe flange, the circumferential weld cylinder body
type | rerated loading(kg) | rotation speed(rpm/min) | tilting speed(rpm/min) | tuning angle(.) | worktable dim(mm) | rotation power(kw) | tilting power(kw) | speed regulation method | max offsetting(mm) | max gravity(mm) |
HB-01 | 100 | 0.3-3 | bu manual | 0-90 | 400 | 0.18 | / | AC Frequency conversion stepless speed regulation | 100 | 200 |
HB-03 | 300 | 0.2-2 | by manual | 0-90 | 600 | 0.18 | / | 150 | 200 | |
HB-06 | 600 | 0.09-0.9 | 0.42 | 0-90 | 1000 | 0.75 | 0.75 | 150 | 200 | |
HB-10 | 1000 | 0.09-0.9 | 0.4 | 0-90 | 1200 | 1.1 | 1.1 | 150 | 200 | |
HB-20 | 2000 | 0.05-0.5 | 0.35 | 0-120 | 1250 | 1.1 | 1.5 | 200 | 250 | |
HB-30 | 3000 | 0.05-0.5 | 0.23 | 0-135 | 1400 | 1.1 | 2.2 | 200 | 300 | |
HB-50 | 5000 | 0.05-0.5 | 0.2 | 0-135 | 1500 | 1.5 | 3 | 200 | 300 | |
HB-80 | 8000 | 0.02-0.2 | 0.2 | 0-135 | 1600 | 3 | 3 | 200 | 400 | |
HB-100 | 10000 | 0.02-0.2 | 0.2 | 0-135 | 2000 | 3 | 4 | 200 | 500 | |
HB-200 | 20000 | 0.02-0.2 | 0.15 | -45-90 | 2500 | 5.5 | 11 | 200 | 600 |
equipment quality promise:
1, the Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, the company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability.
3, the company may send engineers to the demand-side participation to help guidance of installation and commissioning of equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, the company can track service and maintenance.
Our services:
1.Oversea engineers:
We provide oriented after-sales service including the oversea engineers tranning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where you are.
2.Learning trip:
We welcome engineers from your side to learn the technical design and normal maintenance here, this will help you easyly to understanding.
3.English Manual:
We have Mannual to show you along with the machine.So you can learn this from the existing document to deeper your knowledge and understanding.
4.Face to face to teacing:
Through internet video face to face for machine teaching,because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5.Through all the ways,we will guarantee the service quality and ensure you will be well helped anything anywhere.
Our company:
Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd (locate in Wuxi)& Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. While Wuxi company, which is located in National technical industry park, i. e.The Wuxi Liando U Valley, besides the Taihu lake with beautiful scenery and renowned humanities, is mainly focus on enterprise blue print, R&D, marketing,trading, management
and finance. The Dongtai plant is devoted to technics, manufacture, process control, test and after-service, which locates at Dongtai Tangyang Xinhong Machinery industry park, in the wet land area off the seashore of Huanghai.
So we are manufacturer and trader. The Wuxi part is for trading and Dongtai part is forproducing.
Here we make a promise to you all: we will offer you the products with the ideal price and good quality.
If you have any problems or you are interested in our products, Please contact me via Email or following ways:
Skype:Sakina135246
QQ:2696243358
Tel:0086-15061825918
