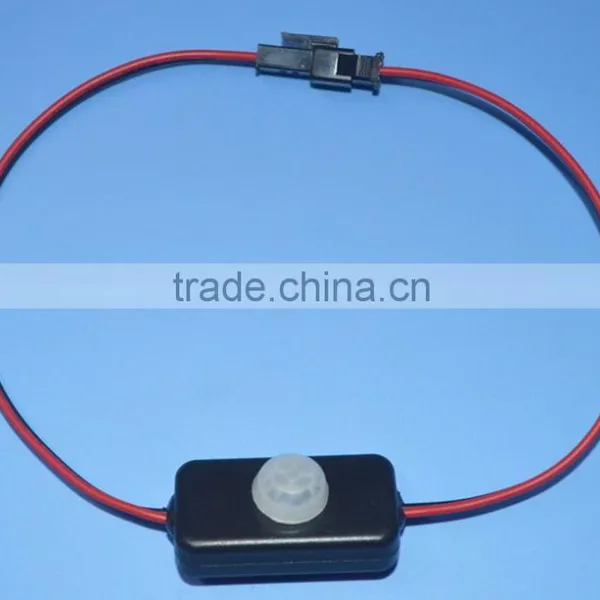

Hi-performance Ceiling or Wall Mounted Human Body Motion IR PIR Sensor Automatic Light SwitchLED Proximity Motion Sensor Switch
US$ 4.68 - 5.15
/ Piece
100 Pieces(Min. Order)
- Shenzhen
- Money Gram Credit Card
You May Like
-
High Sensitivity PIR Switch Infrared Motion Sensor Light SwitchInfrared Motion Competive Price LED Lighting Motion Sensor Switch
-
Occupancy Sensor SwitchDC5-24V Automatic Infrared PIR Motion Sensor Switch for LED LightAutomatic Cabinent PIR Mot Sensor Switch
-
New Light Sensor SwitchDC5-24V 2A Automatic Infrared Human Body PIR Motion Sensor Switch Light Auto on off Intelligent Switch
-
Hot DC5-24V 2A Automatic Infrared PIR Motion Sensor Switch for LED LightOnOff Infrared PIR Occupancy Motion Sensor Light Switch
-
Automatic Small PIR Infrared Motion Sensor Detector Switch for LED StripBlack Auto Passive PIR Motion Sensor Switch for Lighting
-
Black&White DC5-24V Auto Passive PIR Motion Sensor Detector Switch LED StripON/OFF Infrared Human Body Motion Sensor Switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | DYP-03LED-K1 | Usage | Other, motion sensor switch | |
| Theory | Other, infrared sensor | Output | Digital Sensor |
Product Description
Features:
1) With large current drivers, could control the LED with 2A 24W;
2) Small size and easy for installation;
3) With strong anti-interference capacity and high stability;
4) Wiring simple;
5) Small static power consumption (microamps level);
Applications:
1) Human body induction lamps and lanterns;
2) LED light bar sensor;
3) Table light sensor;
4) Automatic sensor of cupboard and bureau;
5) Corridor lights sensor;
Electrical parameters:
Operating voltage | DC5 – 24V |
Quiescent current | Less than 60uA |
Drive current | 2A |
Delay time | Default:8s – 10s ,it also could be customized in zero a few seconds to dozens of minutes; |
Block time | 3s – 5s |
Detection range | Within 3 meters |
Detection angle | Less than 110 degree angle of cone |
Operating temperature | -20 ℃ - +80 ℃ |
Wiring mode | SM connector |
Size | 40 X 20 X 11 (mm) |
Dimension of lens | Diameter: 12mm |
Note: The input voltage must be in line with the operating voltage of LED light, such as the input voltage is 12V and the operating voltage of LED light also should be 12V;
