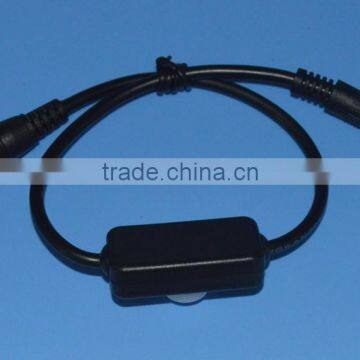

Automatic Small PIR Infrared Motion Sensor Detector Switch for LED StripBlack Auto Passive PIR Motion Sensor Switch for Lighting

Automatic Small PIR Infrared Motion Sensor Detector Switch for LED StripBlack Auto Passive PIR Motion Sensor Switch for Lighting photo-1
Automatic Small PIR Infrared Motion Sensor Detector Switch for LED StripBlack Auto Passive PIR Motion Sensor Switch for Lighting photo-2
US$ 3.29 - 4.15 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-03LED-D1L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name DYP
Model Number DYP-03LED-D1L
Usage Other, sensor switch
Theory Other, infrared sensor
Output Digital Sensor

Features:

1) With large current drivers, could control the LED with 2A 24W;

2) Small size and easy for installation;

3) With strong anti-interference capacity and high stability;

4) Wiring simple;

5) Small static power consumption (microamps level);



Applications:

1) Human body induction lamps and lanterns;

2) LED light bar sensor;

3) Table light sensor;

4) Automatic sensor of cupboard and bureau;

5) Corridor lights sensor;



Electrical parameters:



Operating voltage

DC5 – 24V

Quiescent current

Less than 60uA

Drive current

2A

Delay time

Default:8s – 10s ,it also could be  customized in zero a few seconds to dozens of minutes;

Block time

3s – 5s

Detection range

Within 3 meters

 Detection angle

Less than 110 degree angle of cone

Light-operated

Daylight: off

At night: detects human body it’ll be on, on the contrary will be off;

Operating temperature

-20 ℃ - +80 ℃

Wiring mode

Default as DC5.5 connector

Size

40 X 20 X 11 (mm)

Dimension of lens

Diameter: 12mm

Note: The input voltage must be in line with the operating voltage of LED light, such as the input voltage is 12V and the operating voltage of LED light also should be 12V;
