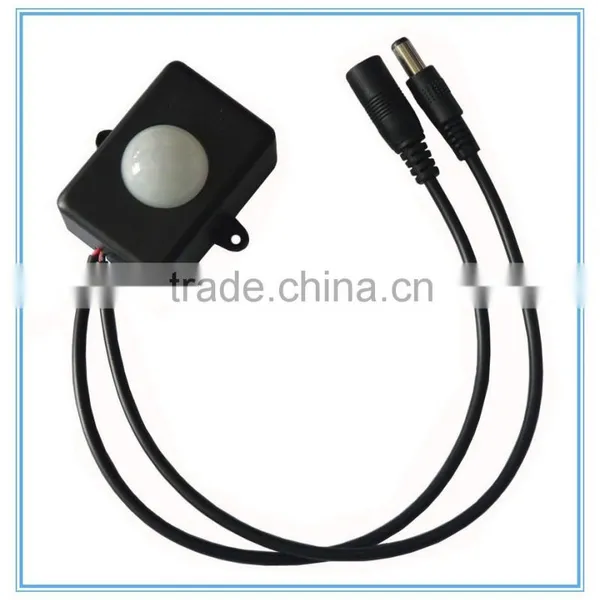

Generic DC12-24V 5A automatic LED PIR motion sensor switch light lightingHigh sensitivity automatic infrared IR sensor switch

FOB Price

USD $3.37 - $4.1 / Piece

5000 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	DYP	Model Number:	DYP-03LED-X1
Usage:	Other, automatic sensor switch	Theory:	Other, Infrared sensor	Output:	Digital Sensor

Product Description

DYP-03LED-X1 is an automatically control products, which is based on the technology of infrared, with features of high sensitivity and strong reliability. The LED light is off when it’s in Day Mode, but when it’s in Night Mode: 1) The brightness of LED will be 30% when it does not detect human body (like a night light); 2) The LED light will be full bright when it detects human body, and the brightness will be slowly changed (the original one will turn off at once).

Electrical parameters:

Operating voltage	DC12 – 24V
Wattage of LED light	5A
Power consumption at night	0.5W
Sensitive time	Default:3s – 5s , adjustable: from 3s to 200s
Detection range	7m-8m,adjustable
Light-operated	adjustable
Detection angle	Less than 110 degree angle of cone
Size	35 X 36 X 23 (mm)
Dimension of lens	Diameter: 23mm

Working pattern:

Light	PIR	LED
Daylight	Detects human body	OFF
At dusk	Detects human body	0 - little by little (2s) – full brightness
At dusk	Do not detect human body	full brightness – little by little (5s) - 0
Night	Detects human body	0 - little by little (2s) – full brightness
Night	Do not detect human body	full brightness – little by little (5s) – 30% brightness

Contact Us

Shenzhen Dianyingpu Technology Co., Ltd.: Contact namepeter lin; Phone86-0755-33230318; Address12F-B Room,XinBaoYi Industry & Trade Mansion ,HouTing Village,ShaJing Town,BaoAn District,ShenZhen City,GuangDong Province,China Shenzhen,Guangdong
