Home > Products > Straightening Machine > H type Steel Flange Straightening Machine

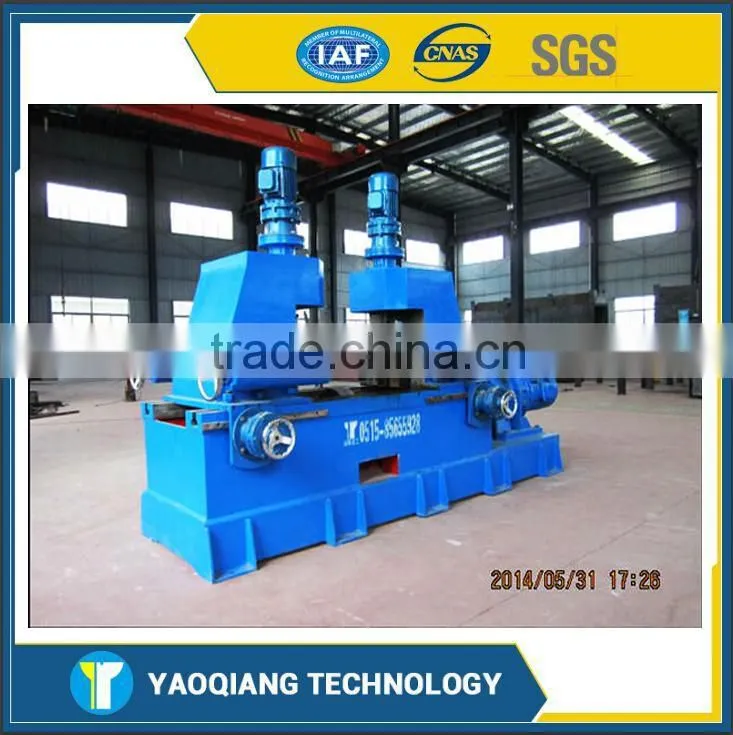

H type Steel Flange Straightening Machine
- 100 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Other, Straightener & Cutter | Use: | H Beam Flange |
Place of Origin: | Jiangsu, China | Brand Name: | YQ(YaoQiang) | Model Number: | HYJ-600/800,YJ-60B/80B |
Voltage: | Customized | Power(W): | 9/14/37/44KW | Dimension(L*W*H): | Customized |
Weight: | 1200kg | Certification: | ISO,SGS,CE | Warranty: | 12Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

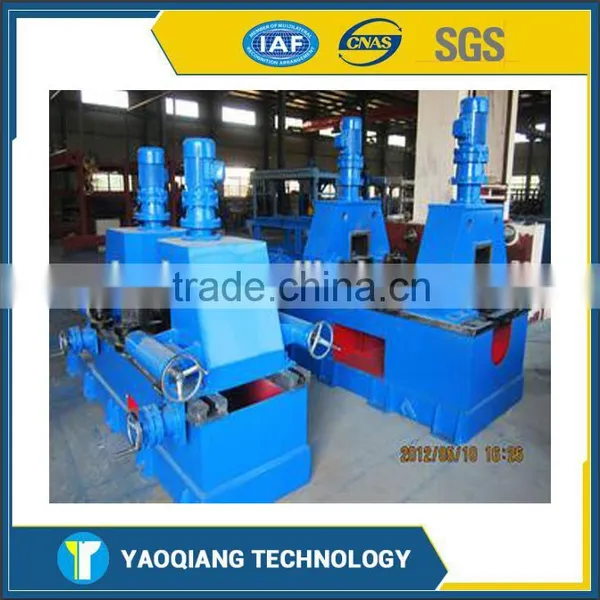

YQ I/H-beam Flange Straightening Machine
Brief description:
H-beam Flange Straightening machine is a kind of H-beam straightening equipment developed by
our company.Its main transmission system is adopted with 22KW motor and driven by cycloidal gear speed reducer,with high transmission efficiency and rapid straightening speed.All the straightening
rollers are all made of quality steel ,and have gone through advanced heat-treatment,insuring long-term stability and usage without defects as crack,etc.Besides,all the parts and components are
reinforced.The machine is equipped with operating box so as to ensure easy operation.
Main Features:
1.Equipment structure types:stationary;
2.The correct form:mechanical or hydraulic;
3.Equipment usage:simple structure,convenient operation,capacity,correct speed,high degree of
automatic;
4.Correction:high quality alloy wheel material after heat treatment,surface hardness and endurable
Wear-resisting performance;
5.Electrical system:the cabinet control.
Model | Mechanical | Hydraulic | ||
HYJ-600 | HYJ-800 | YJ-60B | YJ-80B | |
flange thickness (mm) | ≤20 | ≤40 | ≤60 | ≤80 |
flange material tension | ≤420Mpa | ≤420Mpa | ≤600Mpa | ≤600mpa |
flange width (mm) | 150-600 | 200-800 | 200-800 | 200-1000 |
web height (mm) | ≥160 | ≥350 | ≥350 | ≥500 |
straightening speed m/min | 5.7 | 17 | 6.4 | 6 |
load power (kw) | 9 | 24.2 | 37 | 44 |
packing size(mm) | 3355×890×1573 | 3500×1500×1700 | 3120×4100×2100 | 4700×25001×2400 |
equipment weight (kg) | 7000 | 9000 | 25000 | 28000 |
Packaging & Delivery:
Packaging Details:Standard export package
Delivery Details:Within 30days after received your deposit
