Chinese Hydraulic or Mechanical H Beam Straightening Machine
- 100 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Other, Straightener & Cutter | Use: | H Beam Flange |
Place of Origin: | Jiangsu, China | Brand Name: | YQ(YaoQiang) | Model Number: | HYJ-600/800,YJ-60B/80B |
Voltage: | Customized | Power(W): | 9/14/37/44KW | Dimension(L*W*H): | Customized |
Weight: | 1200kg | Certification: | ISO,SGS,CE | Warranty: | 12Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

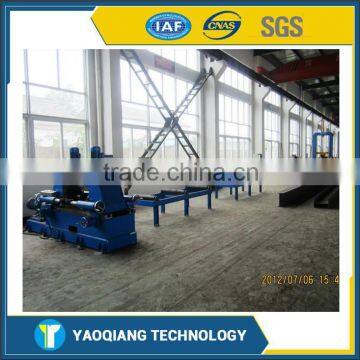

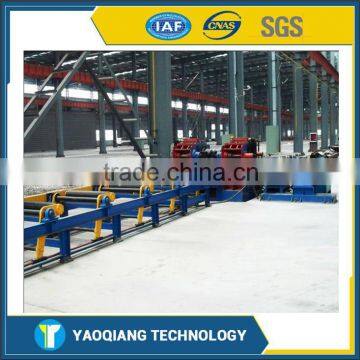

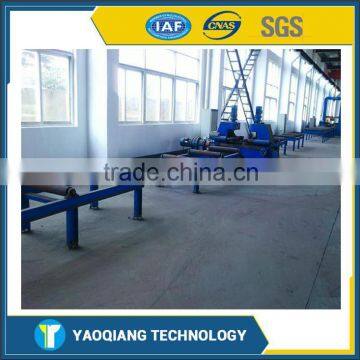

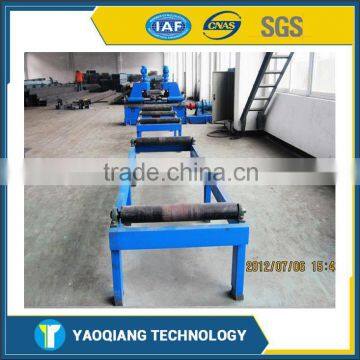

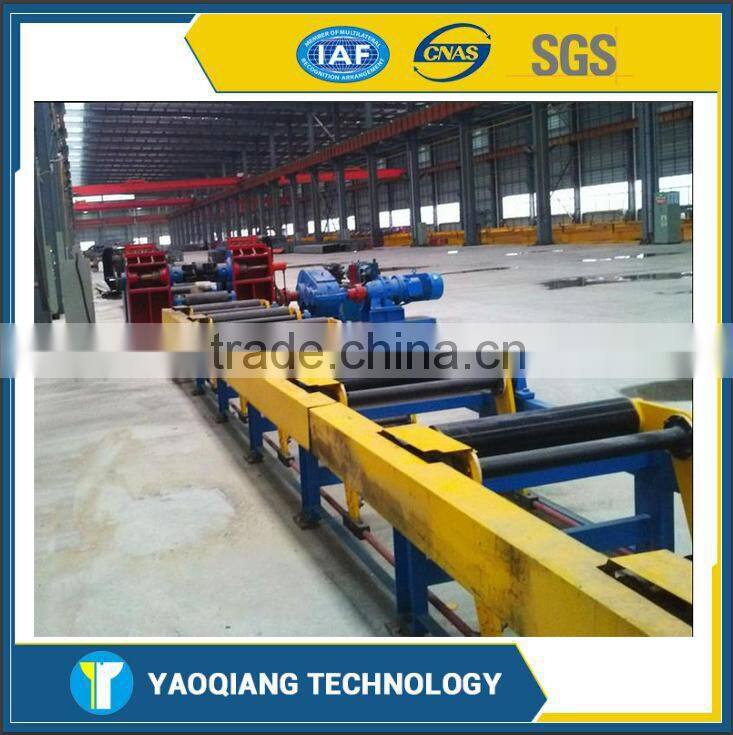

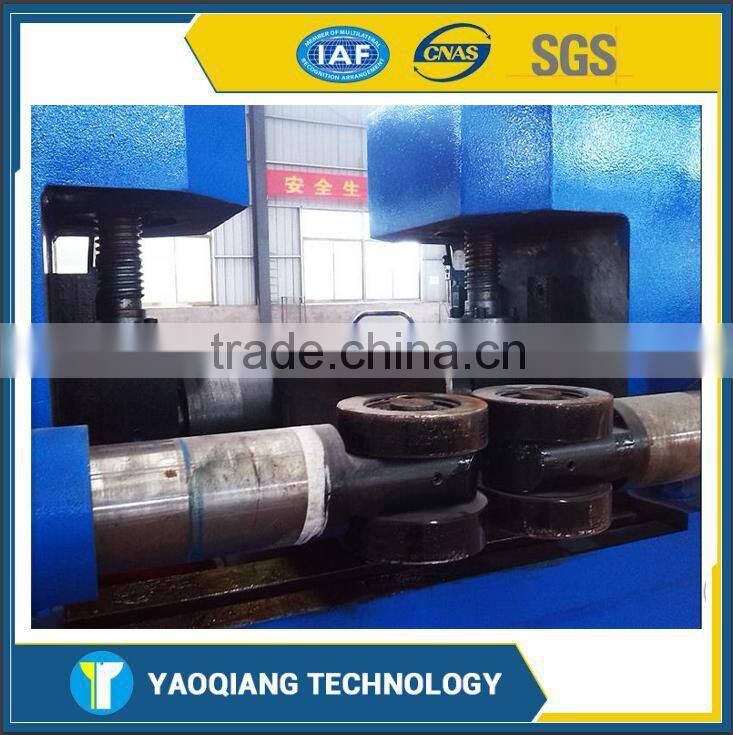

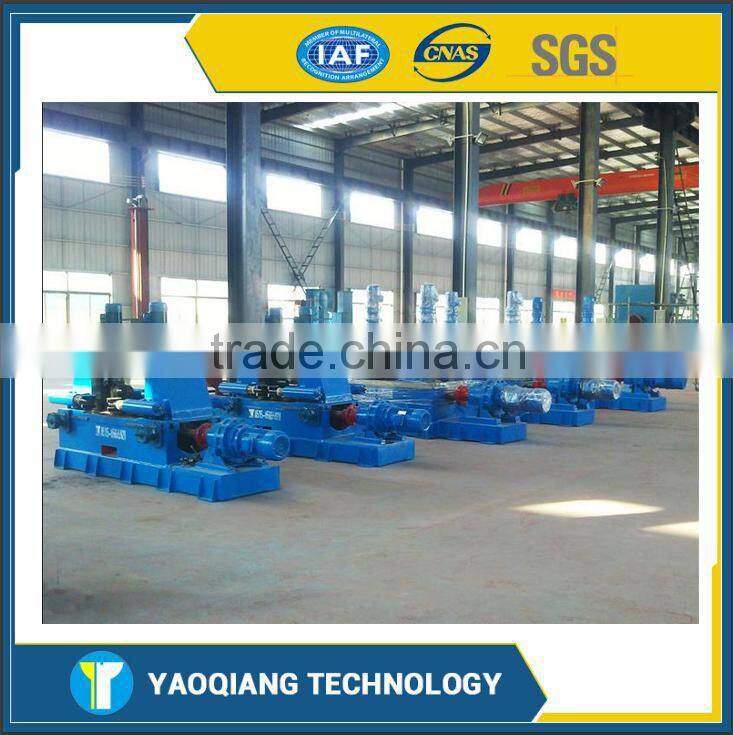

Chinese Hydraulic or Mechanical H Beam Straightening Machine

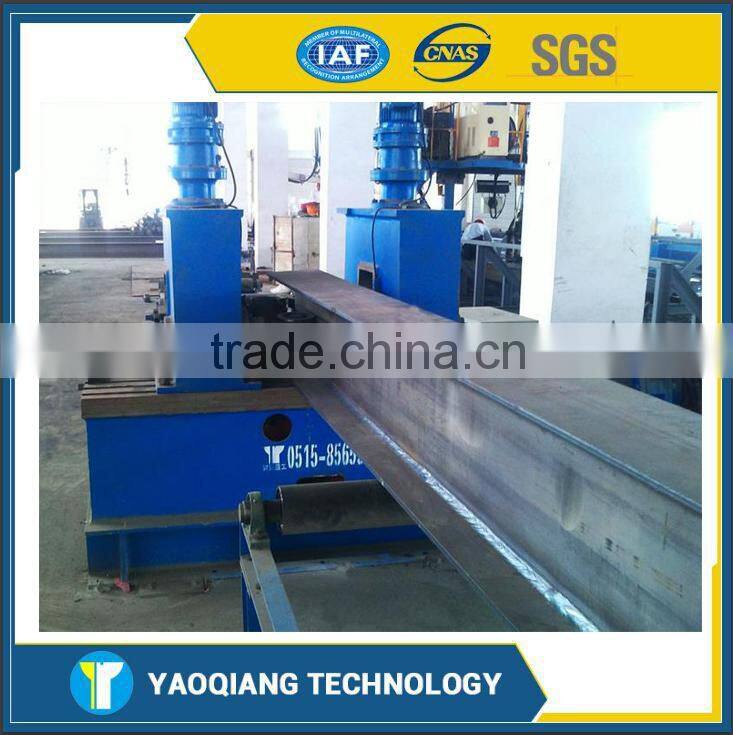

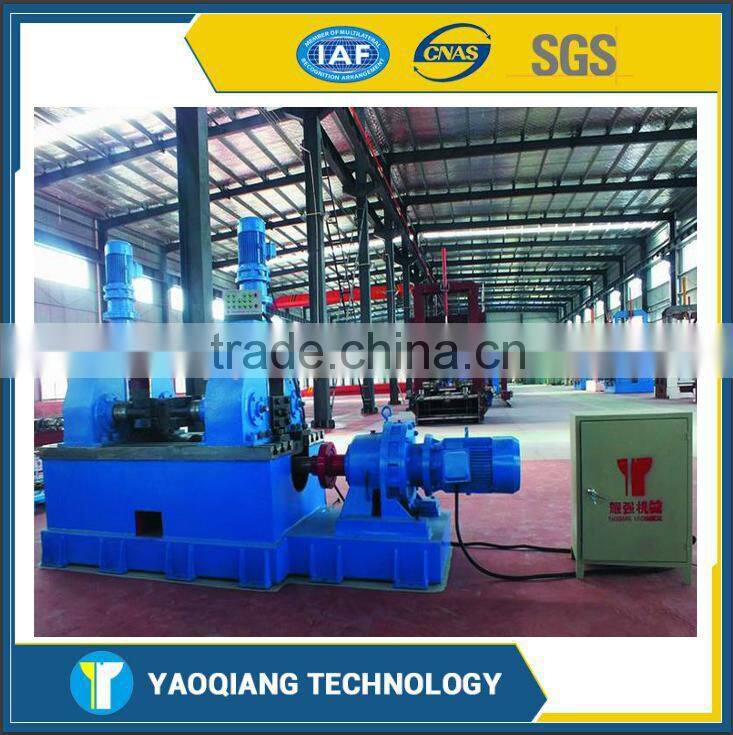

H-beam Flange Straightening machine is a kind of H-beam straightening equipment developed by
our company.Its main transmission system is adopted with 22KW motor and driven by cycloidal gear speed reducer,with high transmission efficiency and rapid straightening speed.All the straightening
rollers are all made of quality steel ,and have gone through advanced heat-treatment,insuring long-term stability and usage without defects as crack,etc.Besides,all the parts and components are

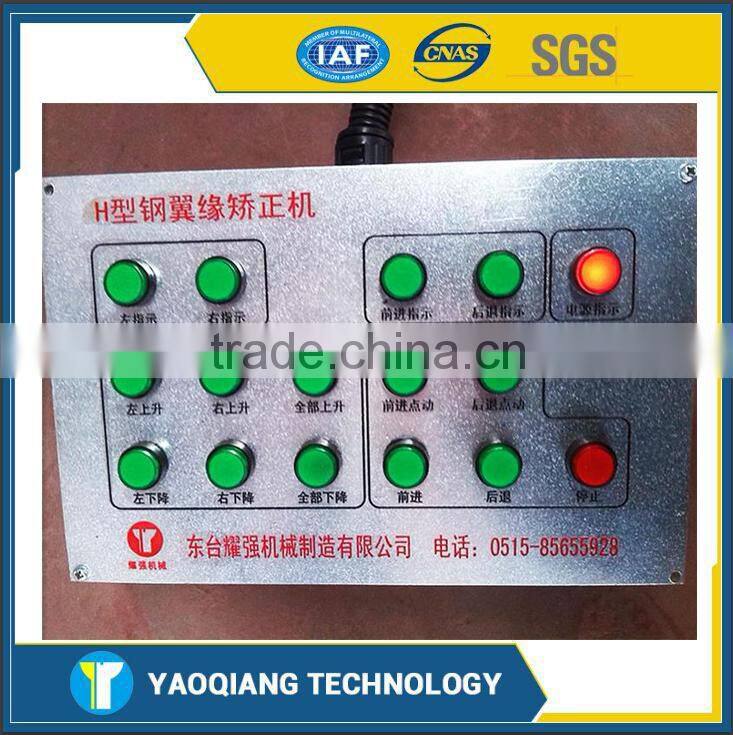

reinforced.The machine is equipped with operating box so as to ensure easy operation.
Main Features:
1.Equipment structure types:stationary;
2.The correct form:mechanical or hydraulic;
3.Equipment usage:simple structure,convenient operation,capacity,correct speed,high degree of automatic;
4.Correction:high quality alloy wheel material after heat treatment,surface hardness and endurable wear-resisting performance;
5.Electrical system:the cabinet control.
Model | Mechanical | Hydraulic | ||
HYJ-600 | HYJ-800 | YJ-60B | YJ-80B | |
flange thickness (mm) | ≤20 | ≤40 | ≤60 | ≤80 |
flange material tension | ≤420Mpa | ≤420Mpa | ≤600Mpa | ≤600mpa |
flange width (mm) | 150-600 | 200-800 | 200-800 | 200-1000 |
web height (mm) | ≥160 | ≥350 | ≥350 | ≥500 |
straightening speed m/min | 5.7 | 17 | 6.4 | 6 |
load power (kw) | 9 | 24.2 | 37 | 44 |
packing size(mm) | 3355×890×1573 | 3500×1500×1700 | 3120×4100×2100 | 4700×25001×2400 |
equipment weight (kg) | 7000 | 9000 | 25000 | 28000 |
Our Service---We Cherish Every Order From Every Customer
Punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
Pre-sales service:
•We value every inquiry sent to us, ensure quick competitive offer within 12 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
•We are a sales team, with all technical support from engineer team.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We lorge your complain within 48 hours.
Packaging & Delivery:
Packaging Details:Standard export package
Delivery Details:Within 15days after received your deposite
Company Show:
Company Honor:
Transaction Process:
Sales Network:
FAQ:
1. Are you factory or foreign trade company?
We have our own factory, We are industry and trade integration.
2. Where is your factory located? How can I visit there?
Our factory is located in Dongtai City, Jiangsu Province, one hour train from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us!
3. What's the quality of your products?
We are very focused on the quality of the products, good quality products can bring us more customers, so, All spare parts of this machine come with best brand and best quality, after completing the installation we will test the machine for 48 hours, also we can provide the machine's working video before shipping.
4. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.
5. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
6. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas. (2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
7. How can I know more about the machine?
We are honored to send you some pictures and vedio about our machine. And we welcome every customer visit our factory.
8. How does your factory do regarding quality control?
Quality is priority. Factory director always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ZDHY, ISO9001 authentication.
9. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement. Any other questions contact us directly!
