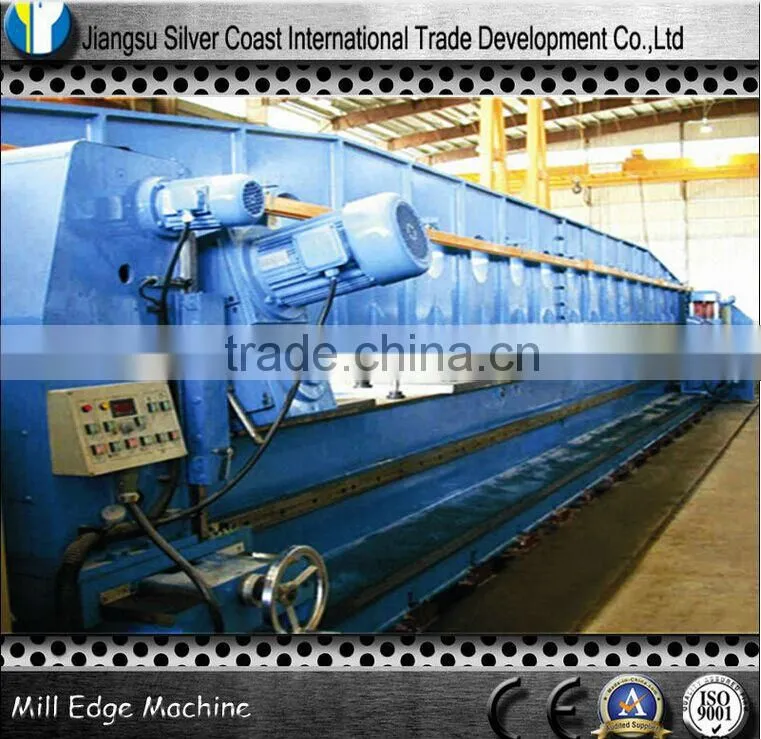

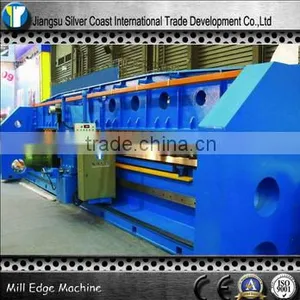

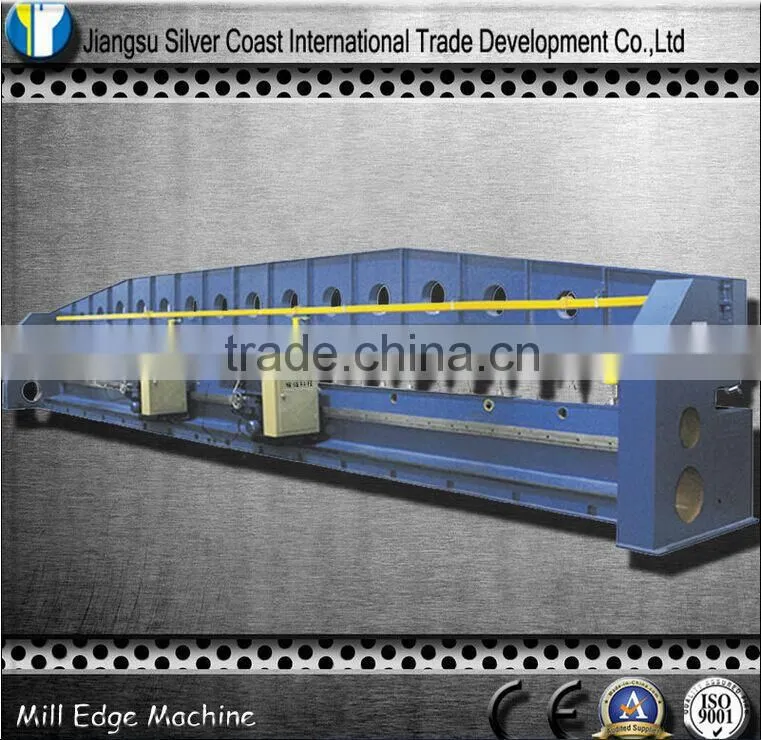

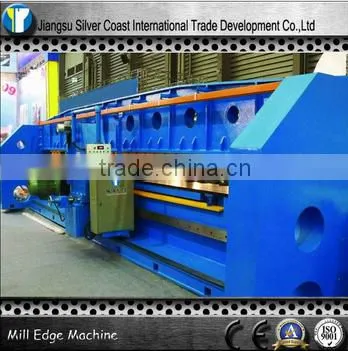

YQ XBJ Series Edge Milling Machine

US$ 1,000 - 1,000,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Jiangsu Silver Coast International Trade Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name YQ

Model Number XBJ

Type Horizontal

CNC or Not Normal

Voltage 220v 380v

Power(W) 5.5kw

Dimension(L*W*H) customized

Weight 5t

Certification ISO,SGS,CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

YQ Automatic Welding Positioner
1.Structure types:fixed
2.The reverse:self locking function

Product Description

Appilcation

1.Equipment structure types:fixed;

2.The function of equipment:straight edge,bevel edge≤ 75°,U-shaped

3.Way of working,milling cutter disk circle pins forming;

4.Adopt imported frequency technical realization of head and walk cabinet step;

5.AC motor driving type of case:+ gear reducer+super-modulus gear pair;

6.Hydraulic control system:the oil cylinder pressure and time delay function;

7.Milling pin straightness:≤1.5mm/m;

8.Electrical control system:the cabinet + operation control box.

XBJ edge milling machine
model	XBJ-3	XBJ-6	XBJ-9	XBJ-12
effective milling scope length m	3	6	9	12
milling edge adjustment range°	0-45	0-45	0-45	0-45
adaptable steel plate thickness mm	6-80	6-80	6-80	6-80
max. milling width mm	2--4	2--4	2--4	2--4
milling cutter forward speed mm/min	100-1000 AC frequency stepless speed adjustment AC frequency stepless speed adjustment
milling cutter backward speed mm/min	4	4	4	4
milling shaft speed rpm	100-1000
hydraulic pressure Mpa	≥3.5	≥3.5	≥3.5	≥3.5
hydraulic head qty. pc	5	8	11	15
supporting flat height mm	900	900	900	900
feeding motor power kw	1.5	1.5	1.5	1.5
oil pump motor power kw	4	4	5.5	5.5
