Main specifications:

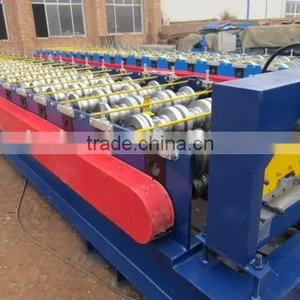

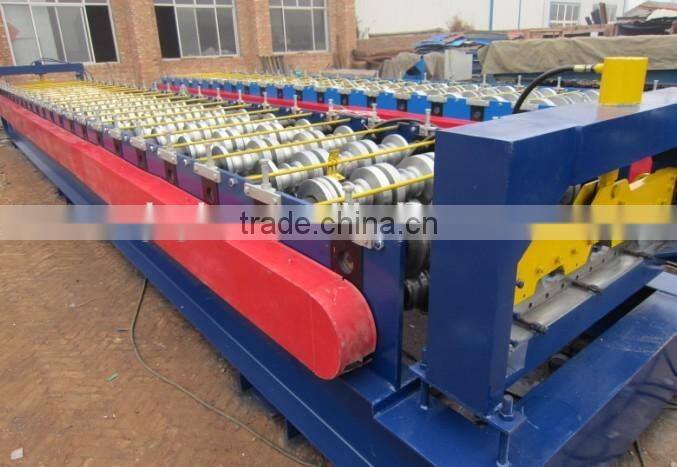

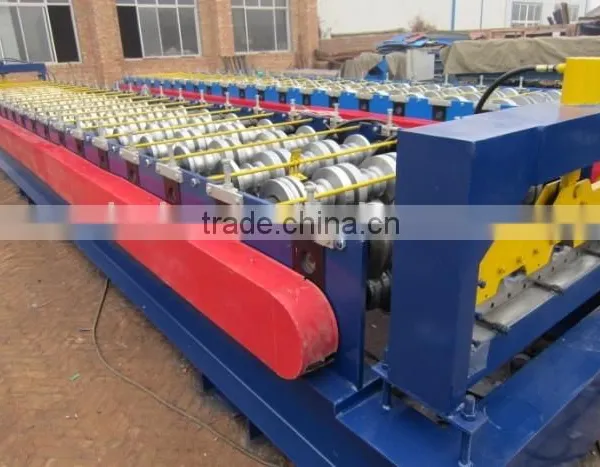

Color Steel glazed roof tile roll forming Machine
1. PLC programm control
2. Little noise and shake
3. Hydraulic system control, long life.
4. Easy operation
No. |
main parameter of roofing cold roll forming machine |
|
1 |
Suitable to process |
Color steel roof |
2 |
Width of the plate |
1000mm |
3 |
Roller |
up layer:12 rows down layer:18 rows |
4 |
Dimensions |
10.5*1.55*1.91m |
5 |
Power |
4+4kw |
6 |
Thickness of the plate |
0.3-0.6mm |
7 |
Productivity |
up layer:2m/min down layer:8-10m/min |
8 |
Material of the cutting blade |
Cr12 |
9 |
Diameter of the roller |
Φ70mm |
10 |
Weight |
About 6.5T |
11 |
Voltage |
380V 50Hz 3phases |
14 |
Control system |
PLC control |
15 |
Forming speed |
25-30m/min |
16 |
Panel output speed |
5m/min |
17 |
Processing precision |
within 1 mm |
18 |
Motor type |
hydraulic |
19 |
Voltage |
380V 50Hz 3phases |
20 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
Work flows:
Decoiler--front shear (optional)--feeding and guilding unit--roll forming unit--step plunching unit--rear shear--output
Advantage:
It is cheap, beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate. With its good quality,cheap price, fixed material, nice appearance and multi-function, it gains great popularity among people.
