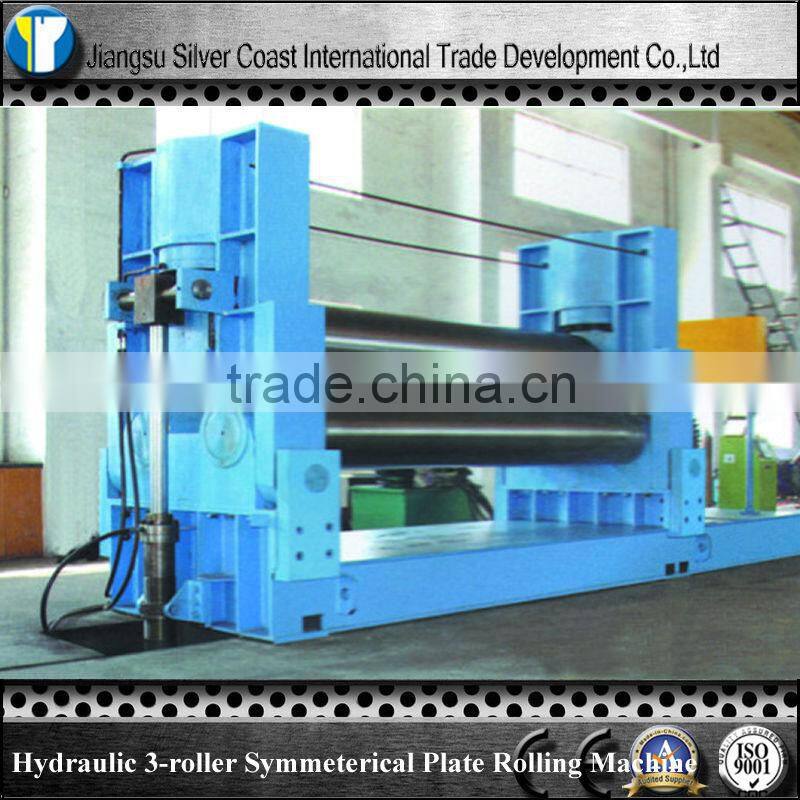

Cheap Hydraulic Three-roller Symmterical Plate Rolling Machine
Negotiable
/ Set
1 Set(Min. Order)
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
GD-20 Type Milling and Beveling Machine(Cheap and Efficient)
-
H-beam Shot Blasting Machine with Cheap Price
-
ISO and CE Certificated Hydraulic Plate CNC Bending Machine
-
2014 Newest Hydraulic Plate CNC Bending Machine
-
Professional and Multifuntional Hydraulic steel/Plate CNC Bending Machine
-
Chinese Most Popular and Widely Used Hydraulic steel/Plate CNC Bending Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | yaoqiang | |
| Model Number | W11Y | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
This metal plate rolling machine is three-roller type.
1, The upper one roller is placed in the up middle of the bottom two roller poles, and will carry out the up and down movement. Its movement is hydraulic driven. The hydraulic oil inside the hydraulic cylinder affects the piston and drives the upper roller.
2, The two lower roller poles carry out the rotary movement. The export cogwheels of speed reducer gear into lower rollers cogs, and provide torsion for rolling metal material plate.
Compact structure. Easy to operate and maintain.
| Model | max. plate thickness | max. plate width | rolling speed | full-loading min. rolling diameter | upper roller diameter | lower rollers diameter | main motor power | central distance of two lower rollers |
| mm | mm | m/mm | mm | mm | mm | kw | mm | |
| W11Y-16*2000 | 16 | 2000 | 4.5 | 550 | 260 | 220 | 7.5 | 320 |
| W11Y-16*2500 | 16 | 2500 | 4.5 | 600 | 280 | 240 | 11 | 360 |
| W11Y-20*2000 | 20 | 2000 | 4.5 | 600 | 280 | 240 | 11 | 360 |
| W11Y-20*2500 | 20 | 2500 | 4.5 | 700 | 340 | 260 | 15 | 430 |
| W11Y-25*2500 | 25 | 2500 | 4.5 | 750 | 360 | 270 | 18.5 | 480 |
| W11Y-30*2500 | 30 | 2500 | 4.5 | 900 | 400 | 320 | 22 | 550 |
| W11Y-30*3000 | 30 | 3000 | 4.5 | 900 | 430 | 350 | 30 | 600 |
| W11Y-40*2500 | 40 | 2500 | 4.5 | 1000 | 480 | 380 | 37 | 600 |
| W11Y-40*3200 | 40 | 3200 | 4.5 | 1100 | 540 | 440 | 45 | 700 |
| W11Y-50*2500 | 50 | 2500 | 4.5 | 1200 | 560 | 460 | 45 | 700 |
| W11Y-50*3000 | 50 | 3000 | 4.5 | 1200 | 580 | 480 | 55 | 750 |
| W11Y-60*2500 | 60 | 2500 | 4 | 1300 | 600 | 510 | 55 | 750 |
| W11Y-60*3000 | 60 | 3000 | 4 | 1300 | 620 | 530 | 55 | 800 |
| W11Y-70*3000 | 70 | 3000 | 4 | 1400 | 680 | 590 | 75 | 850 |
| W11Y-80*3000 | 80 | 3000 | 4 | 1500 | 750 | 660 | 75 | 900 |
| W11Y-90*3000 | 90 | 3000 | 4 | 1600 | 780 | 680 | 90 | 1000 |
| W11Y-100*3000 | 100 | 3000 | 3.5 | 1700 | 830 | 740 | 90 | 1000 |
| W11Y-110*3000 | 110 | 3000 | 3.5 | 1800 | 880 | 790 | 110 | 1080 |
| W11Y-120*3000 | 120 | 3000 | 3.5 | 2000 | 920 | 830 | 110 | 1160 |
| W11Y-120*4000 | 120 | 4000 | 3.5 | 2000 | 960 | 850 | 132 | 1160 |
| W11Y-150*3000 | 150 | 3000 | 3.5 | 2200 | 1000 | 900 | 150 | 1280 |
| W11Y-160*3000 | 160 | 3000 | 3.5 | 2500 | 1060 | 920 | 150 | 1280 |
| W11Y-180*3000 | 180 | 3000 | 3.5 | 2500 | 1080 | 950 | 180 | 1360 |
| W11Y-200*3000 | 200 | 3000 | 3.5 | 2500 | 1120 | 980 | 220 | 1420 |
