YQ Shot Blasting Machine
Specification:
1.Shot blast H-beam and other steel structure;
2.The layout of clean room and shot is reasonable,shot blast widely,comprehensive and thorough
cleaning;
3.It adopts speed-adjusted roller,cleaning process convenient and efficient;
4.Configurable pulse bag filter canister filter/pulse.

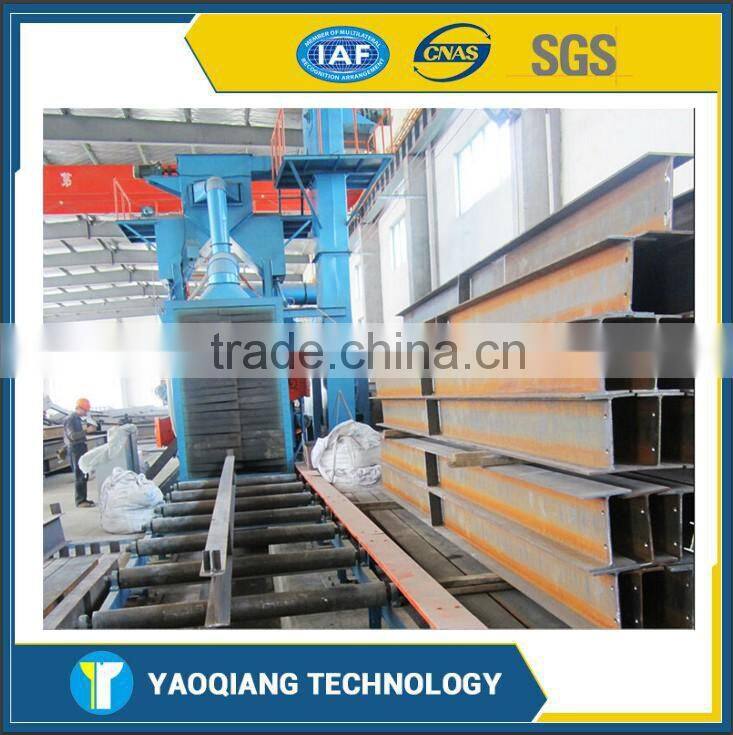

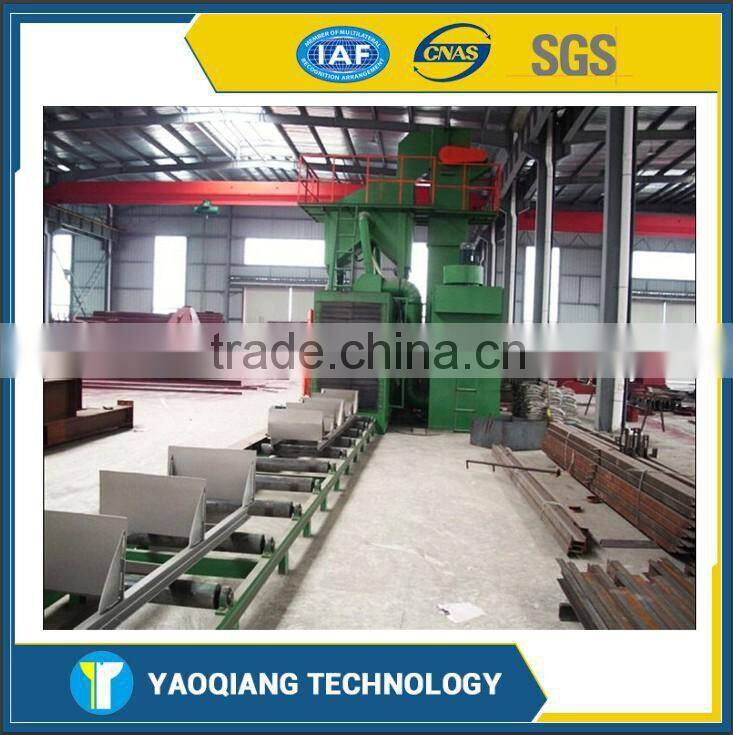

HGP0816 series steel H beam shot blasting cleaning machine is automatically table roller continually passing type.It is specially used for steel H beam surface cleaning,strengthening, to get certain
degree of surface roughness,to add paint coating adhesion force, to improve surface quality and
anti-corrosive effect.Two shot blaster are on the left and right side of shot blasting room.They are
assembled to the best position according to H beam condition.There are a layer of abrasion resistantprotecting plate on the inside room surface,and it is inserted type so it is easy to change.The anti-dust system adopts American DONALDSON company technology, the cartridge type dust cleaner,
with high efficient ability and low operation resistance,low size,small weight and easily to be changed.The dust release density is lower than the national environmental requirement.
Model |
HP1020 |
HP1240 |
HP1450 |
|
Workpiece dimention |
section length*width (mm) |
1000*2000 |
1200*1400 |
1400*52000 |
length (m) |
12 |
15 |
15 |
|
Quality standard |
surface cleaness |
A-BSa2-Sa2½ |
A-BSa2-Sa2½ |
A-BSa2-Sa2½ |
shot-blaster |
number (pc) |
8 |
8 |
8 |
power (KW) |
8*11 |
8*11 |
8*15 |
|
inlit and outlet conveyor |
loading capacity kg/m |
200 |
1000 |
1000 |
convey speed (m/min) |
0.5-5 |
0.5-5 |
0.5-5 |
|
circulation quantity (T/h) |
120 |
120 |
120 |
|
Overall power (kw) |
125 |
140 |
175 |
|
pit depth (m) |
1.9 |
1.9 |
1.9 |
|
main frame length*width*heigh (mm) |
6770*2900*3150 |
7895*2985*3460 |
7895*3200*3760 |
|
Packaging & Delivery:
Packaging Details:Standard export package
Delivery Details:Within 30days after received your deposit
