Help Center50/105 Conical Twin Counter Rotating Screw Barrel for Extruder
Related Products
-
Feed Twin Screw and Barrel From Zhoushan JinshengUS$ 1,000 - 3,000MOQ: 1 Set -
Nitrided Extrusion Plastic Pp-profile Screw BarrelUS$ 1,100 - 3,900MOQ: 1 Piece
-
Conical Twin Screw and Barrel for Krauss Maffei/for Extruder Machine/for PIPE/FOR SHEET/FOR PROFILE/FOR FOAMING/FOR PELLETIZINGUS$ 150 - 6,800MOQ: 1 Piece
-
Conical Twin Screw and Barrel for Pelletizer/for Color Master Batch Production LineUS$ 600 - 15,000MOQ: 1 Piece
-
Pelletizer /Granulator Parallel Twin Screw Barrel for Extruder MachineUS$ 1,000 - 3,000MOQ: 1 Set
Specifications
1)Name:50/105 Conical Twin Counter Rotating Screw Barrel2)Material:38CrMoAlA,SKD61,SKD11,42CRMO
3) High quality , Best price

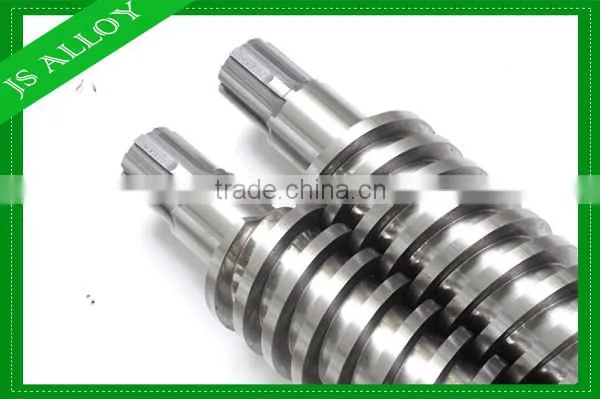

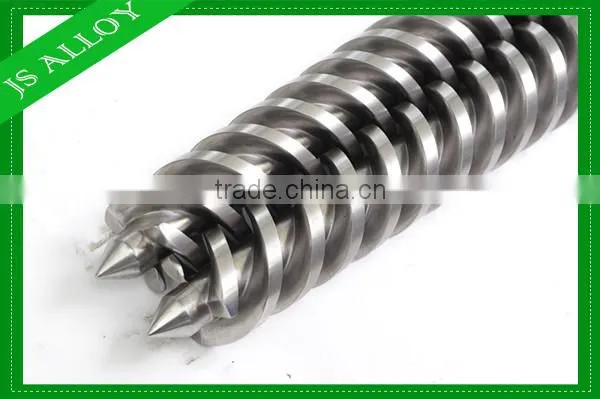

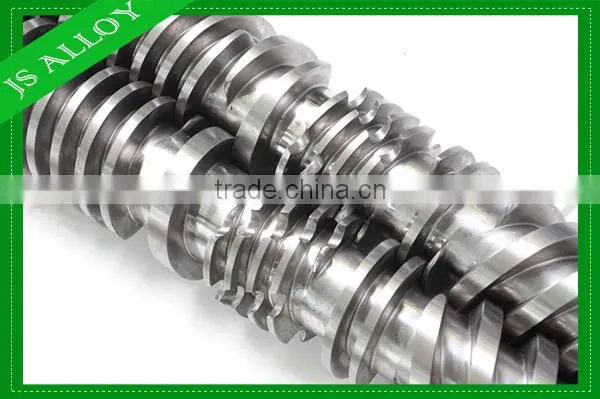

50/105 Conical Twin Counter Rotating Screw Barrel for extruder
| φ25/φ53 | φ35φ77 | φ45φ90 | φ50φ105 | φ51φ105 |
| φ55φ110 | φ60φ125 | φ65φ120 | φ65φ132 | φ70φ140 |
| φ75φ150 | φ80φ143 | φ80φ156 | φ90φ184 | ......... |
Other data
- Base Material
1)38CrMoAlA(JIS SACM645)
2)Cr12MOV(JIS SKD-11)
3)4Cr5MoSiV1(JIS SKD-61)
4)42CrMo(AISI 4140)
5)9Cr18MoV
- Bimetallic Alloy Materials
1)Fe-based alloy
2)Ni-based alloy/Deloro alloy
3)Co-based alloy
4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide
- Bimetallic Alloy level
Level A - containing Tungsten of 40%
Level B - containing tungsten of 25%
Level C - containing tungsten of 9.5%
- Technology Parameter
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1020Hv
Thickness of Hard Chrome Plating Layer: 0.03-0.08mm
Hardness of Hard Chrome Plating Layer: ≥950HV
Depth of Bimetallic Layer: 2-3mm
Hardness of Bimetallic Layer: HRC58°-62°
Nitrided Brittleness:Less Than Grade 1
Surface Roughness:Ra 0.4um
Screw Straightness:0.015mm
Jinsheng Factory Equipment
Product Application

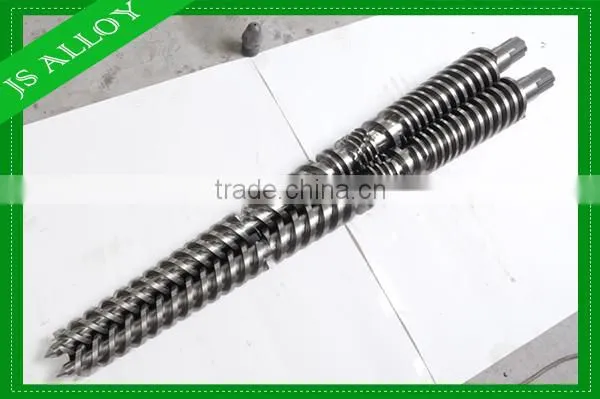

Rotating screw barrel Picture
Jinsheng Advantage
1) Jinsheng have more than 1 year quarantee
2) Jinsheng have over 10 years history
3) Jinsheng have a strong work-hard team
4) Jinsheng is the first factory to make the bimetallic screw and barrel in zhoushan
5) Jinsheng will handle all difficult for products
6) Jinsheng will meet customer request
7) Jinsheng will be keeping improving
Packing
1) Strong and solid export wooden case with foam inside
2) Plastic film case package
3) Suitable to transportation
4)As buyer request
Application material
1)General Plastics
2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc
3)PA + GF(Glass Fiber)
4)Flame-resistant Reinforced Plastics
5)Modified Engineering Plastics
6)All kinds of Mixed Recycled Material(in Scrap or Granule),etc
What about Jinsheng other products?
We can product all screw and barrel as buyer request
1) Bimetallic Screw and Barrel
2) Injection Screw and Barrel
3) Extruder Screw and Barrel
4) Conical Twin Screw and Barrel
5) Parallel Twin Screw and Barrel
6) Rubber Screw and Barrel
7) Planetary Screw and Barrel
8) Componetns
|
Services
Jinsheng have more than one year guarantee, if there is any problem,you can contact with us at any time, we will reply you as soon as possible!
Contact person: Happy
Tel: 86-580-8043200
Fax:86-580-8043198
Mobile:86-136-4680-7744
