High Productivity Twin Screw and Barrel /conical Twin Screw and Cylinder for Extrusion Line

Zhoushan Dinghai Jinsheng Bimetallic Plastic Machinery Factory (General Partners)
High Productivity Twin Screw and Barrel /conical Twin Screw and Cylinder for Extrusion Line thumbnail-1
High Productivity Twin Screw and Barrel /conical Twin Screw and Cylinder for Extrusion Line photo-1
US$ 600 - 8,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JS -ALLOY
Model Number:
JS-High productivity twin screw and barrel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JS -ALLOY
Model Number JS-High productivity twin screw and barrel

Specifications

1) MATERIAL: 38CRMOALA
2) Heat-treatment: Nitriding
3) GUARANTEE TIME: MORE THAN 1 YEAR
4) Best quality and price

 Topic:   High productivity twin screw and barrel /conical twin screw and cylinder for extrusion line

Product Description

 Conical twin screws and barrels

Specification:

1) OD35/75MM-OD92/188MM

2) Heat treatment: Nitration treatment

3) Depth of Nitration:0.5-0.8mm

4) Hardness of Nitration:950-1020Hv

5) Fragility of Nitration: less than grade 1

6) Roughness of surface: Ra 0.4um

7) Linearity of screw: 0.015mm



Item  Types of  Scres(d/D) Length of   Work(mm)   Quantity of  Extruder(Kg/h)   Speed of  Screw rotate(rpm)
JS1 φ35φ77 810 40-70 5-50
JS2 φ45φ90 99050-805-45
JS3 φ50φ105 1070 100-150 4-45
JS4 φ51φ105 1220100-150 4-45
JS5 φ55φ110 1220 120-180 4-40
JS6 φ60φ125 1320 150-200 4-40
JS7 φ65φ120 1440200-250 4-40
JS8 φ65φ132 1440200-250 4-40
JS9 φ70φ140 1460 220-300 4-40
JS10 φ75φ150 1480250-3204-35
JS11 φ80φ143 1660 300-3604-35
JS12 φ80φ156 1800300-3604-35
JS13 φ90φ184 2000 400-500 3-35



 Physical Characteristics of Bimetallic

Characteristics Alloy Hardening (HRC) Base material
Abrasion resistance Fe+Ni+Cr+B 58-64 45/40Cr
Anti-corrosion Ni+Cr+Co+B 50-58 45/40Cr
Abrasion resistance &Anti-corrosion Fe+Ni+Cr+Co+B 56-64 45/40Cr
High  Abrasion resistance &Anti-corrosion Ni+Cr+Wc+Co+B58-6745/40Cr





Company Information

 Jinsheng History

1) Jinsheng Bimetallic Plastic Machnery Factory was established in 2004.

2) It was developed as a large-scale and comprehensive company specializing in manufacturing the kinds of Screws and Barrels in Zhoushan.

3) Include bimetallic barrel & screw ,conical twin screws & barrels ,parallel twin screws & barrels,single screw &barrel , rubber screw & barrel ,planetary screw & barrel and  components

4) Apply for injection molding machine and extruder machine .

5) Sales to America, Germany, Brazil, Russia, Ukraine, India, Pakistan,Egpyt,Argentina and some other countries and regions

6) Based Material: #45 steel,40Cr,38CRMOALA, 42CrMo,SKD11,SKD61 and high temperture ALLOY etc.

High productivity twin screw and barrel /conical twin screw and cylinder for extrusion line

Packaging & Shipping



1) strong and solid export wooden case with foam inside
2) plastic film case package
3) suitable to transportation
4) as buyer request

 High productivity twin screw and barrel /conical twin screw and cylinder for extrusion line



Our Services

 Jinsheng with more than 1 year guarantee for screw and barrel!

 For each product will be inspected before shipment!

 Jinsheng can design the drawing according to cusotmer request!

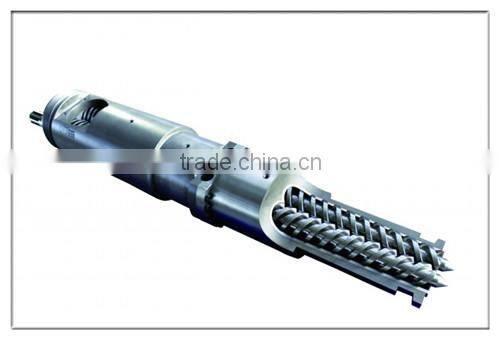

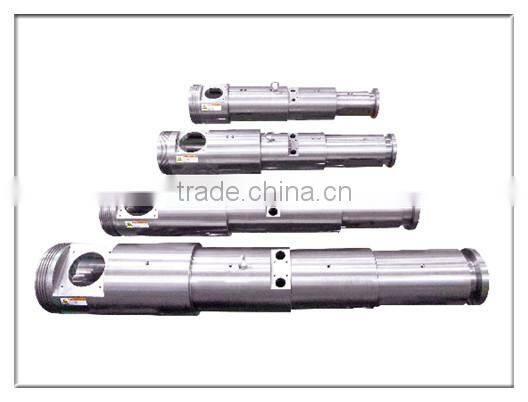

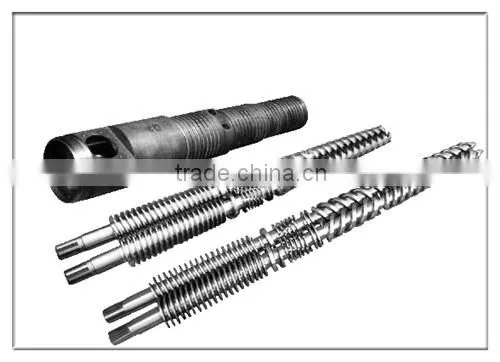

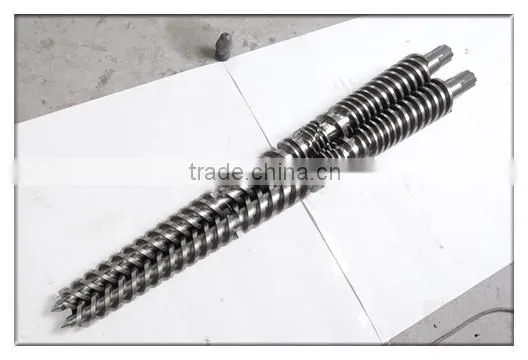

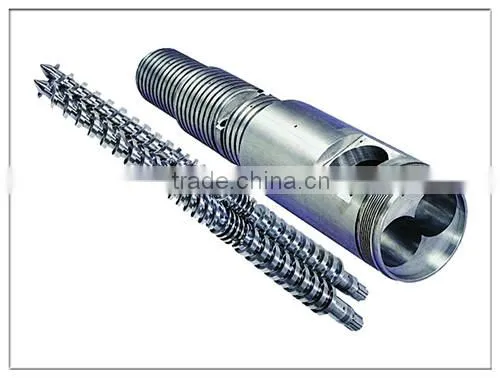

Picture for Conical Twin Screws and barrels

High productivity twin screw and barrel /conical twin screw and cylinder for extrusion lineHigh productivity twin screw and barrel /conical twin screw and cylinder for extrusion lineHigh productivity twin screw and barrel /conical twin screw and cylinder for extrusion lineHigh productivity twin screw and barrel /conical twin screw and cylinder for extrusion lineHigh productivity twin screw and barrel /conical twin screw and cylinder for extrusion line
