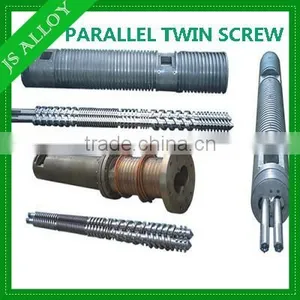

Help CenterTheysohn TTS 88 Type Parallel Twin Screw and Barrel
Related Products
-
Mikrosan MCV 135/33D Parallel Double Screws and BarrelsUS$ 600 - 15,000MOQ: 1 Piece -
Parallel Twin Screw and Barrel/ KraussMaffer KMD 114-26 Screw Barrel for PVC PipeUS$ 2,600 - 18,000MOQ: 1 Piece
-
Co-rotating Twin Screw and Cylinder /Conical Twin Screw and Barrel for Extruder LineUS$ 150 - 6,800MOQ: 1 Piece
-
Parallel Twin Screw Barrel for PVC/pipe Sheet / UPVC/ Granule Extruder MachineUS$ 900 - 2,700MOQ: 1 Piece
-
Plastic Screw and Barrel/double Screw and Barrel for Extruder MachineUS$ 1,100 - 4,100MOQ: 1 Piece
Specifications
1) screw design for extruder/ rubber machine2) Screw and barrel city:Jintang town,zhoushan city
3) Can be designed by buyer

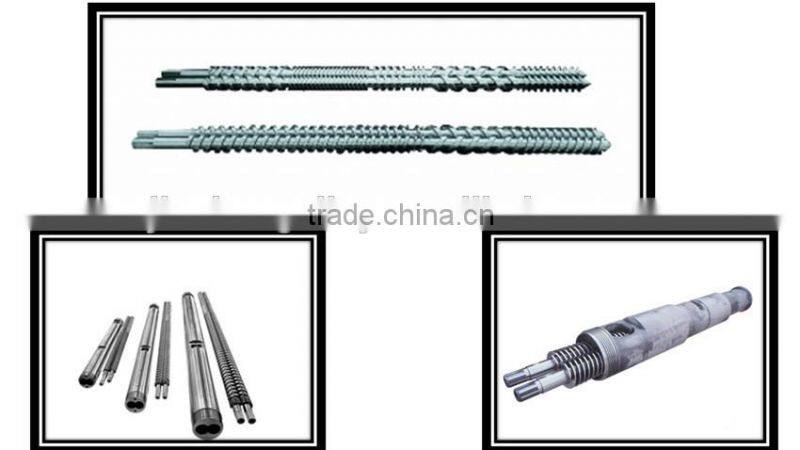

Theysohn TTS 88 type parallel twin screw and barrel
Specification for parallel twin screw
Φ35/2 | Φ45/2 | Φ50/2 |
Φ65/2 | Φ80/2 | Φ90/2 |
Φ105/2 | Φ125/2 | Φ130/2 |
Φ150/2 | Φ180/2 | Φ200/2 |
Base Material
1)38CrMoAlA 2)Cr12MOV 3)4Cr5MoSiV1 4)42CrMo |
Surface Treatment
1) Heat Treatment 2) High Frequency Treatment 3) Nitriding treatment(120 Hours) 4) Hard Chrome Plating treatment 5) Nickel alloy plating treatmen |
| Depth of nitration | 0.5-0.8mm |
| Hardness of nitration | 950-1020HV |
| Straight of screw | 0.015MM |
| Fragility of nitration | Less than grade 1 |
| Roughness of surface | Ra 0.4um |
| Depth of alloy layer | 2-3mm |
| Hardness of alloy | HRC58-62 |
| Hardness after hardening and tempering | HB260-290 |
| Hard chrome plating thickness | 0.03-0.08mm |
| Hardness of hard chrome plating | ≥950HV |
Material Application
1) General Plastics 2) ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc 3) PA + GF(Glass Fiber) 4) Flame-resistant Reinforced Plastics 5) Modified Engineering Plastics 6) All kinds of Mixed Recycled Material(in Scrap or Granule),etc |
Product Application Showing
|
|
|

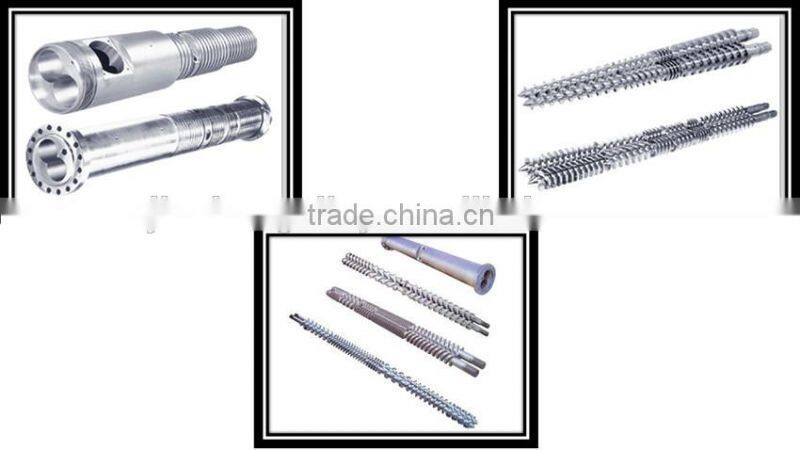

PARALLEL SCREW AND BARREL DESIGN SHOWING
|
|
|
|
|
Packing:
1.screw and barrel are coated with a layer of oil. 2.screw and barrel are wrapped in a layer of plastic film. 3.screw and barrel are fixed in strong wooden case. 4.Volume for one set of screw and barrel is about 0.5cubic meter -5 cubic meter |
Shipping:
1) By Sea: from Ningbo/Shanghai or other china port 2) By Air 3) As customer request |
|
Jinsheng Bimetallic Plastic Machinery Factory was established in 2004. It was developed as a large-scale and comprehensive company specializing in manufacturing the kinds of Screws and Barrels in Zhoushan.such as bimetallic barrel & screw ,conical twin screws & barrels ,parallel twin screws & barrels,single screw &barrel , rubber screw & barrel ,planetary screw & barrel and components apply for injection molding machine and extruder machine .
For the material of screw and barrel we usually used: #45 steel,40Cr,38CRMOALA, 42CrMo,SKD11,SKD61 and high temperture ALLOY etc.
Jinsheng team aim at providing the best services to customers which include providing short lead time, best price and best after sales services. These allow us to create good relationship with customer. Moreover, our engineering department can design special screw and barrel design for some special plastic material such as HDPE, LDPE. This special design can provide high output with low energy consumption. With our great effort on product quality and services, we win a lot of support from different customers which from machinery and plastics field. we will make improvement continuously so as to win customer support from different countries.
Due to our high quality products and outstanding customer service, we have gained a global sales network reaching America, Germany, Brazil, Russia, Ukraine, India, Pakistan,Egpyt,Argentina and some other countries and regions.
To our old customer’s help and continuous support,we thank you.
To our new customers,we give you our warmest welcome.
|
Working Shop
|
1) We could produce unconventional parallel twin screw barrel,and our engineer could design the screw according to your plastic material and products.
2) Our manufactory even have many parallel twin screw barrel designs of word-famous brand: such as CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO, WEBER, AMUT....
So dear customer,if you are need to change your parallel twin screw barrel recently,please contact us! we could satified with you.
What is Jinsheng Feature?
1) With high wear resistance and anti-corrosion
2) Through processing ,it can be prolong use life for screw and barrel
3) Cold and heat spraying for hard metal process
4) High-frequency quenching technology
5) Advanced nitriding technology
6) Processing and manufacturing process for Bimetallic
7) Lowest price, high quality, delivery on time
Now we export to South-east Asia, Europe, America, Middle east countries etc. At the same time, we provide the OE services for hundreds of customer for domestic market.
