Specifications
1)Name:65/132 Conical Twin Screw Barrel2)Material:38CrMoAlA,SKD61,SKD11,42CRMO
3) High quality and Best price

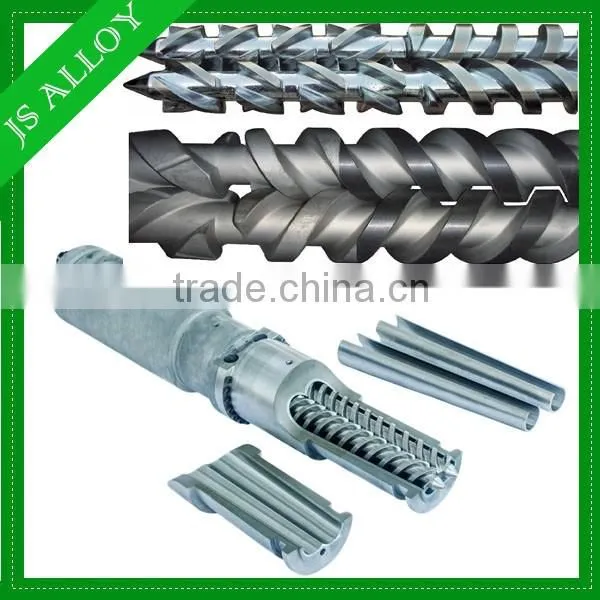

Plastic extruder machine screw and barrel / conical twin screw and barrel for pipe/profile extruder line
| ITEM # | Types of Scres(d/D) | Length of Work(mm) | Quantity of Extruder(Kg/h) | Speed of Screw rotate(rpm) |
| JS1 | φ35φ77 | 810 | 40-70 | 5-50 |
| JS2 | φ45φ90 | 990 | 50-80 | 5-45 |
| JS3 | φ50φ105 | 1070 | 100-150 | 4-45 |
| JS4 | φ51φ105 | 1220 | 100-150 | 4-45 |
| JS5 | φ55φ110 | 1220 | 120-180 | 4-40 |
| JS6 | φ60φ125 | 1320 | 150-200 | 4-40 |
| JS7 | φ65φ120 | 1440 | 200-250 | 4-40 |
| JS8 | φ65φ132 | 1440 | 200-250 | 4-40 |
| JS9 | φ70φ140 | 1460 | 220-300 | 4-40 |
| JS10 | φ75φ150 | 1480 | 250-320 | 4-35 |
| JS11 | φ80φ143 | 1660 | 300-360 | 4-35 |
| JS12 | φ80φ156 | 1800 | 300-360 | 4-35 |
| JS13 | φ90φ184 | 2000 | 400-500 | 3-35 |
Other data
- Base Material
1)38CrMoAlA(JIS SACM645)
2)Cr12MOV(JIS SKD-11)
3)4Cr5MoSiV1(JIS SKD-61)
4)42CrMo(AISI 4140)
5)9Cr18MoV
- Bimetallic Alloy Materials
1)Fe-based alloy
2)Ni-based alloy/Deloro alloy
3)Co-based alloy
4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide
- Bimetallic Alloy level
Level A - containing Tungsten of 40%
Level B - containing tungsten of 25%
Level C - containing tungsten of 9.5%
- Technology Parameter
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1020Hv
Thickness of Hard Chrome Plating Layer: 0.03-0.08mm
Hardness of Hard Chrome Plating Layer: ≥950HV
Depth of Bimetallic Layer: 2-3mm
Hardness of Bimetallic Layer: HRC58°-62°
Nitrided Brittleness:Less Than Grade 1
Surface Roughness:Ra 0.4um
Screw Straightness:0.015mm
Jinsheng Advantage
1) Jinsheng have more than 1 year quarantee
2) Jinsheng have over 10 years history
3) Jinsheng have a strong work-hard team
4) Jinsheng is the first factory to make the bimetallic screw and barrel in zhoushan
5) Jinsheng will handle all difficult for products
6) Jinsheng will meet customer request
7) Jinsheng will be keeping improving
Packing
1) Strong and solid export wooden case with foam inside
2) Plastic film case package
3) Suitable to transportation
4)As buyer request
Application material
1)General Plastics
2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc
3)PA + GF(Glass Fiber)
4)Flame-resistant Reinforced Plastics
5)Modified Engineering Plastics
6)All kinds of Mixed Recycled Material(in Scrap or Granule),etc
Services
Jinsheng have more than one year guarantee, if there is any problem,you can contact with us at any time, we will reply you as soon as possible!
Contact person: Happy
Tel: 86-580-8043200
Fax:86-580-8043198
Mobile:86-136-4680-7744
