Twin Conical Screw Barrel

Zhoushan Dinghai Jinsheng Bimetallic Plastic Machinery Factory (General Partners)
Twin Conical Screw Barrel thumbnail-1
Twin Conical Screw Barrel photo-1
US$ 880 - 880 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JS-ALLOY
Model Number:
JS-S
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JS-ALLOY
Model Number JS-S
Product Description

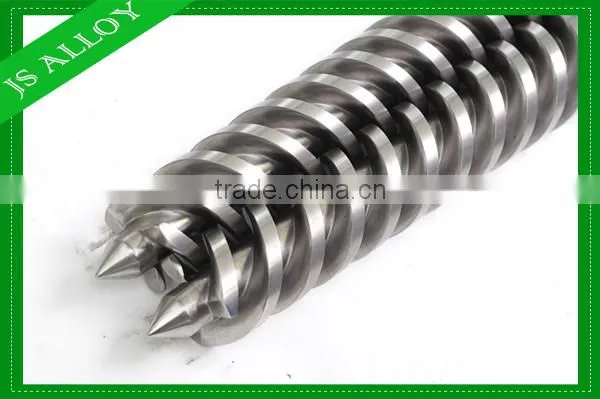

Product Name:  Twin screw barre for Extruder Machine



Type: OD18-250MM

Injection size:15-50000g

We can provide different size screw head and sprinkler headTwin Conical Screw BarrelTwin Conical Screw BarrelTwin Conical Screw BarrelTwin Conical Screw BarrelTwin Conical Screw BarrelTwin Conical Screw Barrel



Specification:



 Standard spcifications of conical twin screw barrel(d/D)

24/52

35/76

45/90

45/100

50/105

51/105

55/100

55/120

58/124

60/125

65/120

65/132

68/143

70/135

70/140

75/150

80/143

80/156

92/188

 105/213



The above are standard spcifications,we can customize according to customers' requirements.



The compression ratio of screw can be designed according to different products and ingredients





Technical parameter of conical twin screw and barrel

 Main base

 materials

1.38CrMoAlA  (Nitrided Steel)

2.SKD-61 (Special Tool Steel)

3.42CrMo (Ultrahigh Strength Steel)

4.DC53 (Cold Work Die Steel)

5.W6Mo5Cr4V2

6.HPT

Main alloy

materials

1.Ni-based alloy

2.Tungsten carbide

3.NiCo-based alloy

4.Fe-based alloy

5.Co-based alloy

Processing

technics

1.Heat treatment

2.Quenching

3.Nitriding treatment

4.Bimetallic alloy welding

5.Bimetallic alloy centrifugal casting

6.Hard-chrome electroplating

Technical

parameter

1.Nitrided layer depth: 0.5-0.8mm

2.Nitrided hardness: HRC56-58

3.Nitrided brittleness: ≤Grade 1

4.Surface roughness: Ra0.4

5.Linearity of screw:0.015mm

6.Hard-chrome plating hardness:≥HRC57

7.Chrome-plating layer depth: 0.03-0.09mm

8.Bimetallic layer depth: 3mm

9.Bimetallic layer hardness: HRC58-62

Above are main technical information,a suitable screw and barrel will be made according to your requirement







 Material Application

1)General Plastics

2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc

3)PA + GF(Glass Fiber)

4)Flame-resistant Reinforced Plastics

5)Modified Engineering Plastics

6)All kinds of Mixed Recycled Material(in Scrap or Granule),etcTwin Conical Screw Barrel



Working Shop:

Jinsheng with strong working hard team,with advanced production facilities and qualified technicians and senior managers.



Twin Conical Screw Barrel

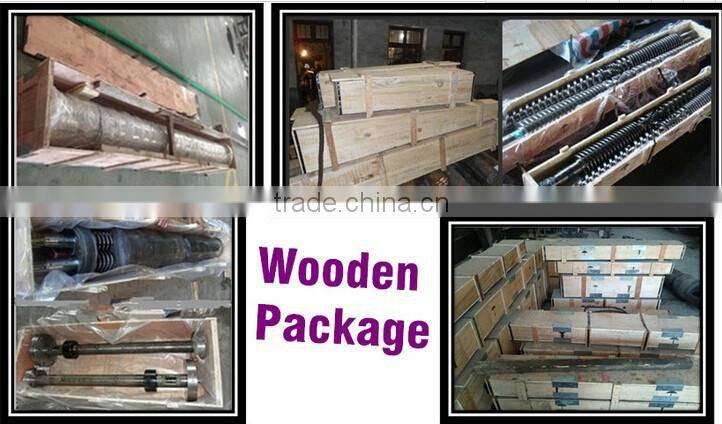

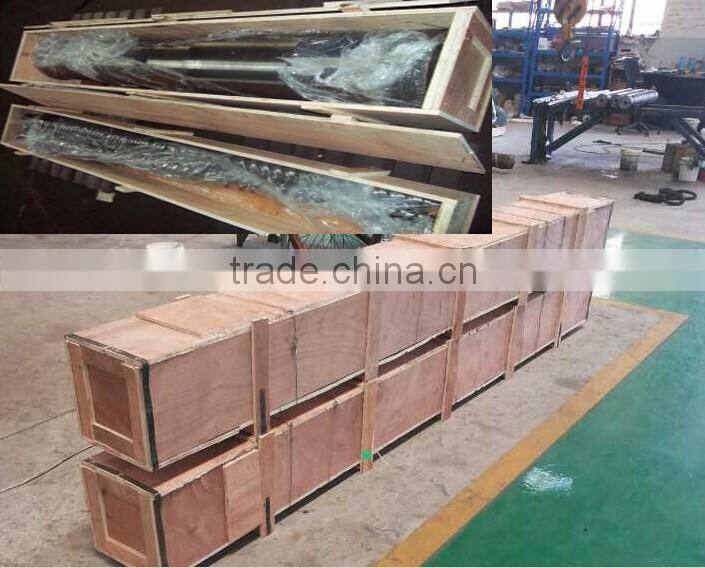

Packing show:



1) Wooden case package



2) Plastic film package



3) As buyer request

 Twin Conical Screw BarrelTwin Conical Screw BarrelTwin Conical Screw Barrel
