Help CenterSingle Screw and Barrel for Single Extruder
Related Products
-
Zhoushan Jinsheng Screw Barrel Type for Extruder MachineUS$ 50 - 10,000MOQ: 1 Set -
Extruder Screw Barrel/Single Screw Barrel for Extruder MachineUS$ 500 - 16,000MOQ: 1 Piece
-
38CrMoAlA Extruder Single Screw and BarrelUS$ 1,000 - 10,000MOQ: 1 Piece
-
Extruder Screw and Barrel for PE Processing ExtruderUS$ 500 - 5,800MOQ: 1 Piece
-
Mixed & Separate Type Bimetallic Screw Barrel for Extruder 2016US$ 500 - 500MOQ: 1 Piece
Specifications
MATERIAL: 38CRMOALA,#45 steel,40Cr, high temperture ALLOY ,SKD61,SKD11Application:ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc

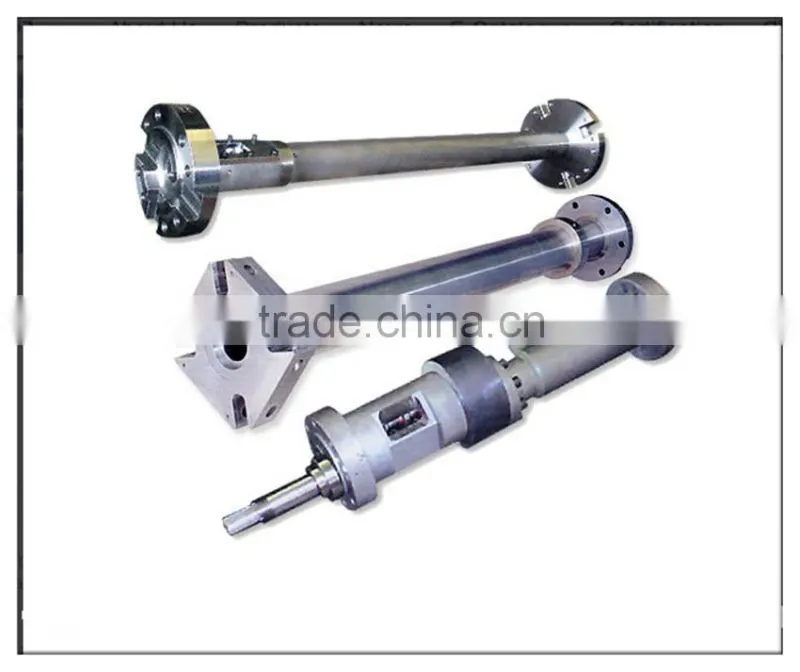

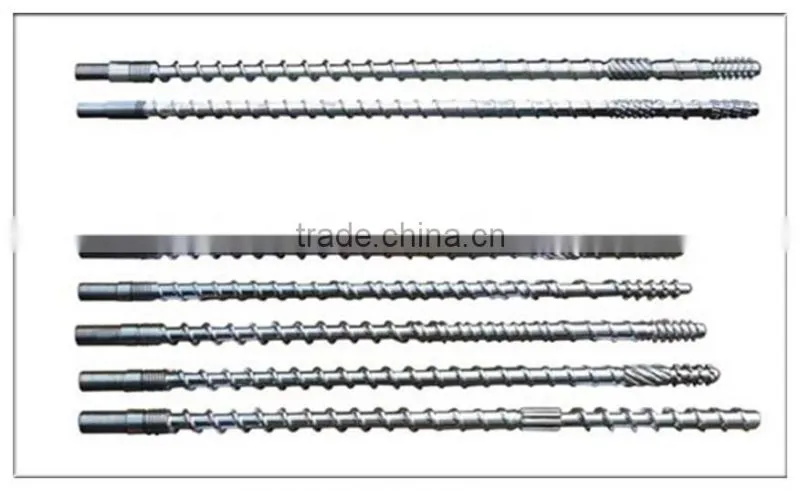

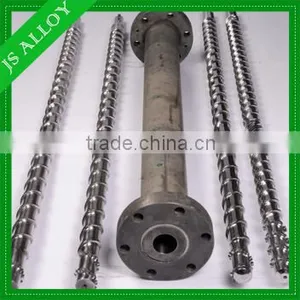

Single screw and barrel for single extruder
Based Material
1, 38CrMoALA, SACM645, 42CrMo
2,GHI3 steel
3,Quality powder metallurgy raw materials
4,Cold/Thermal spray hard metal process
5,Advanced nitriding process
6,Corrosion & Abrasion Resistance Bimetal Spraying Process
7,Horniness screw (abrasion and corrosion resistance)
Specifications
1,Hardness after hardending & tempering: HB260~290
2,Nitrided Hardness : HV950~1020
3,Nitrided thickness : 0.5~0.8mm
4,Nitrided brittleness : Less Than Grade 1
5,Surface roughness : Ra 0.4um
6,Screw Straightness :0.015mm
7,Surface hardness after Chrome coating: ≥950HV
8,Chrome coating layer thickness: 0.03~0.08mm
9,Bi-metallic layer hardness: HRC58~62
10,Bi-metallic layer thickness: 2-3mm
Application:
PP,PE,PVC,ABS,WPC PVC, WPC PE, high molecular sheet etc.
Products Application:

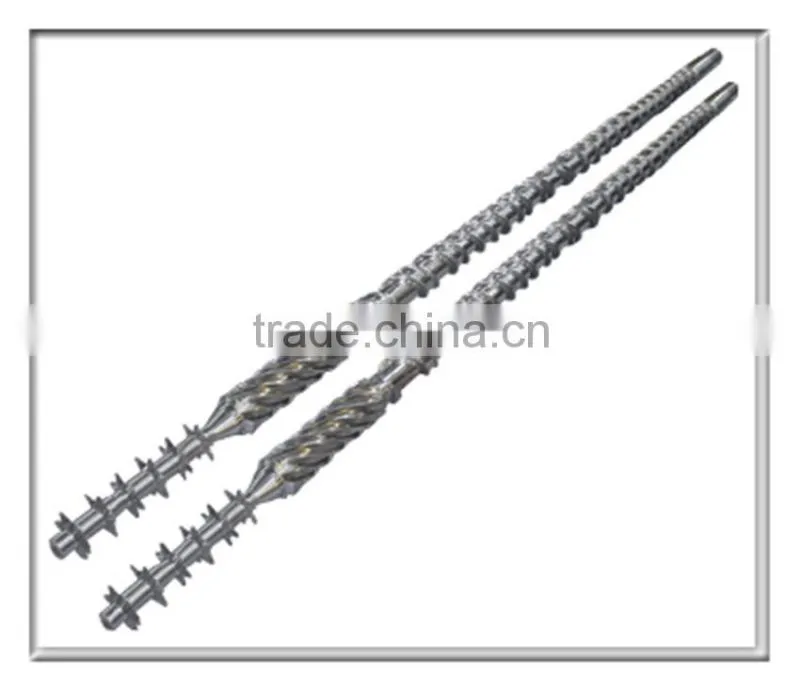

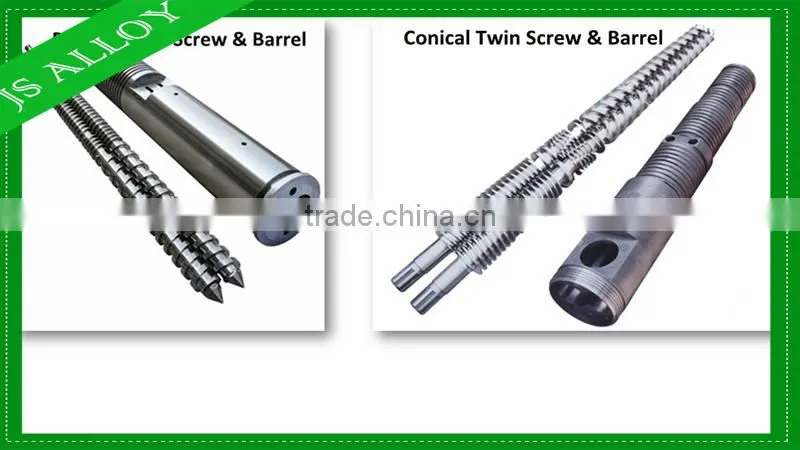

Technical parameter for Conical twin screw and barrel
| Model | JS-51 | JS-55 | JS-65 | JS-80 | JS-92 |
| Screw dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Max speed(rmp) | 40 | 38 | 38 | 37 | 36 |
| Main motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
| Output(kg/h) | 80~100 | 100~150 | 150-250 | 250-380 | 380-700 |
| Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H(m) | 3.6x1.1x2.1 | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 |

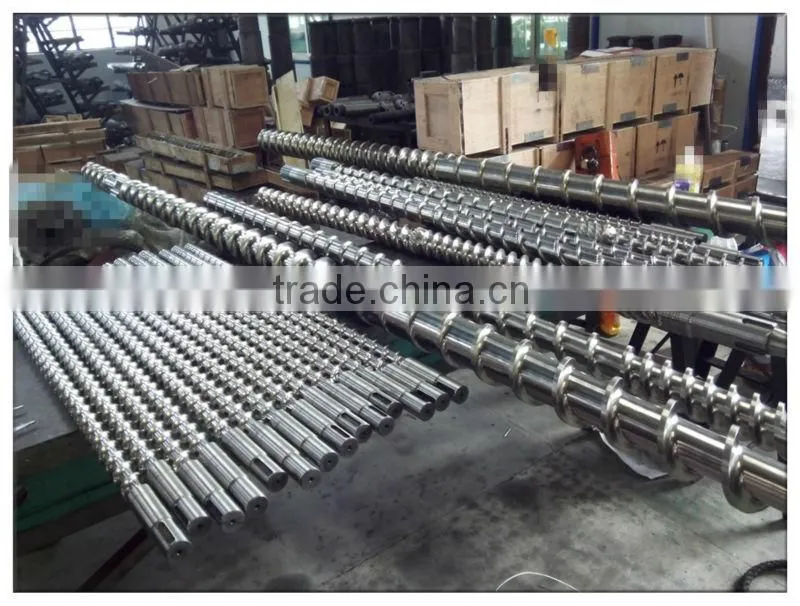

Product Showing
Packing for Stainless steel screw and barrel
1) Wooden case package
2) Plastic film package
3) Suitable to transportation
4) As buyer request
5) One piece into one package
6) Products weight and valume according to screw size
Shippment: We can send the goods to Ningbo or Shanghai Port, it is very near from our factory, also we can ship as buyer transportation method.

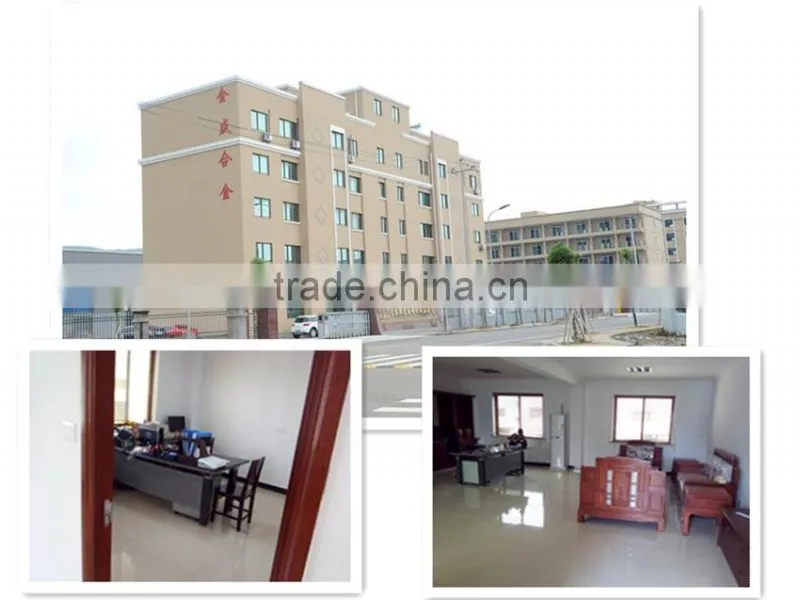

Jinsheng Bimetallic Plastic Machinery Factory was established in 2004. It was developed as a large-scale and comprehensive company specializing in manufacturing the kinds of Screws and Barrels in Zhoushan.
Such as bimetallic barrel & screw ,conical twin screws & barrels ,parallel twin screws & barrels,single screw &barrel , rubber screw & barrel ,planetary screw & barrel and components apply for injection molding machine and extruder machine .
For the material of screw and barrel we usually used: #45 steel,40Cr,38CRMOALA, 42CrMo,SKD11,SKD61 and high temperture ALLOY etc.
Jinsheng team aim at providing the best services to customers which include providing short lead time, best price and best after sales services.
Due to our high quality products and outstanding customer service, we have gained a global sales network reaching America, Germany, Brazil, Russia, Ukraine, India, Pakistan,Egpyt,Argentina and some other countries and regions.
To our old customer’s help and continuous support,we thank you.
To our new customers,we give you our warmest welcome.
Jinsheng Services and Advantage:
1) Jinsheng have more than 1 year quarantee
2) Jinsheng have over 10 years history
3) Jinsheng have a strong work-hard team
4) Jinsheng is the first factory to make the bimetallic screw and barrel
5) Jinsheng will handle all difficult for products
6) Jinsheng will meet customer request
7) Jinsheng will be keeping improving
What is Jinsheng company CULTURE?
|
Management idea: confidence determination Working Spirit : Responsibility improvement Positioning : stability development international Culture feature: Working-Hard Responsibility Co-operation Competitiveness: Quality Technology Cost |
What is Jinsheng other products ?
|

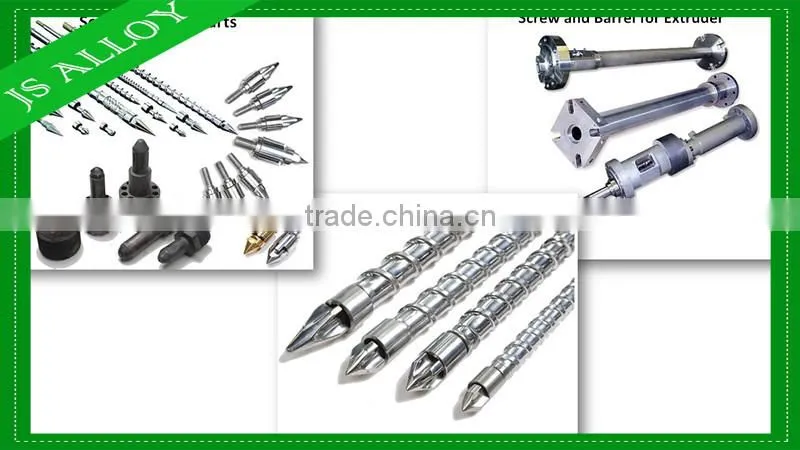

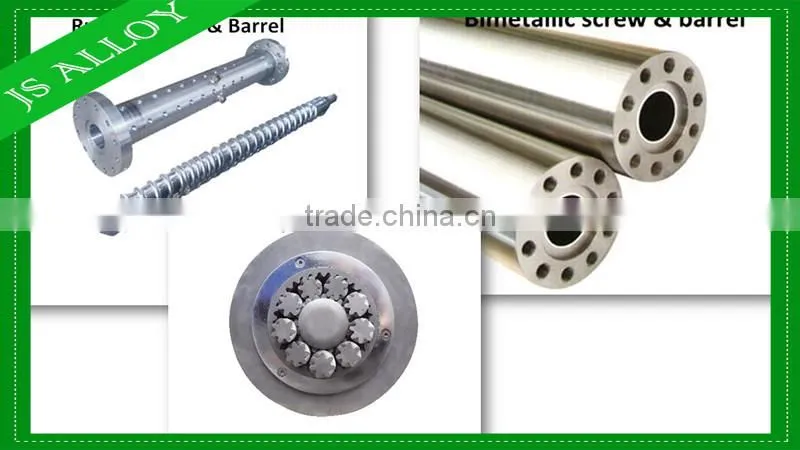

1) Bimetallic Screw and Barrel 2) Injection Screw and Barrel 3) Extruder Screw and Barrel 4) Conical Twin Screw and Barrel 5) Parallel Twin Screw and Barrel 6) Rubber Screw and Barrel 7) Planetary Screw and Barrel 8) Componetns
|
