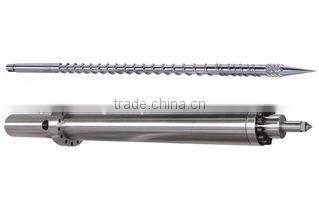

Single Injection Screw Barrel Manufacture

Zhoushan Dinghai Jinsheng Bimetallic Plastic Machinery Factory (General Partners)
Single Injection Screw Barrel Manufacture thumbnail-1
Single Injection Screw Barrel Manufacture photo-1
US$ 500 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JS-ALLOY
Model Number:
JSSingle Injection Screw Barrel Manufacture
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai or other China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JS-ALLOY
Model Number JSSingle Injection Screw Barrel Manufacture

Specifications

Injection screw barrel for blowing machine
1.screw barrel has long use life
2.screw and barrel has good plasticizing effect



Product Description



Specification



Mould clamping force: 250-32000KN

Diameter:15-360mm

Amount of injecton: 15-50000g

Applied range: ABS, PP, PE, PA66, LCP, PC, EVA, PS, U-PVC, PVC, PU, etc.

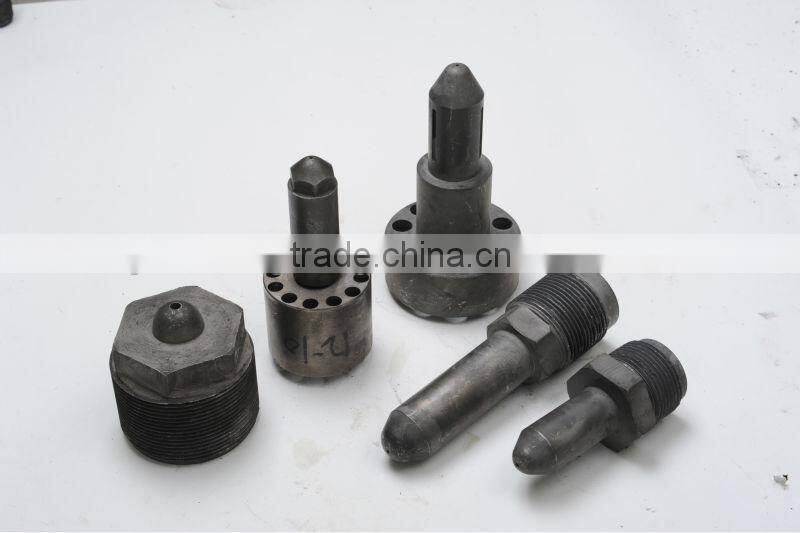

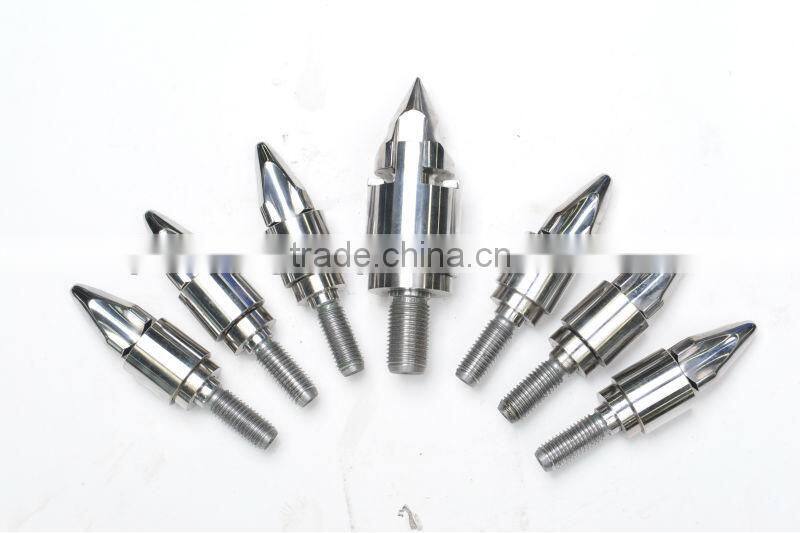

Choose a different screw screw head, barrel can choose the appropriate nozzle.









 Technical Parameters:



Single Injection Screw Barrel Manufacture

Single Injection Screw Barrel ManufactureSingle Injection Screw Barrel Manufacture

Steel material 38GrMoAlA(screw) 42GrMo(barrel)
Hardness after hardening &temperingHB:260-290
Hardness &Tempering time 72 hours
Nitrided hardness HV:950-1020
Nitrided time 120hours
Depth of nitriding case 0.50-0.80mm
Nitrided Brittleness less than grade 1
Surface RoughnessRa:0.4um
surface hardness of chromium-  plating after Nitriding >HV900
Depth of chromium -plating 0.03-0.08mm
screw straightness0.015mm

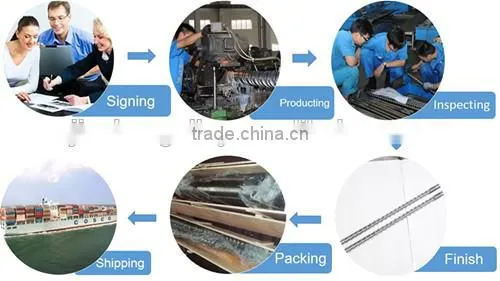

Prosessing program for single screw and barrel



Custome Order--Product Design(Customer Drawing)—Production

Flow Arrangement—Material Procurement—Hardening&Tempering

—Drilling—RoughTurning—RoughThread Rolling (AlloySprayWelding)—Alignment—FineThread Rolling—Mixing—Alignment—HighFrequency

Treatment—Alignment—Polishing—Grinding—120 Hours NitridingTreatment

—Acid Piclking—Polishing—Chrome Plating—O.D.Grinding—Packaging&Shipping





Single Injection Screw Barrel Manufacture

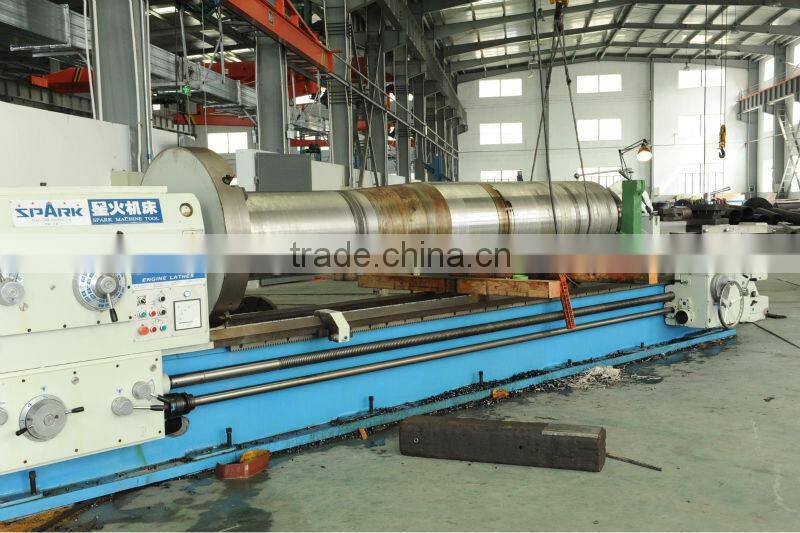

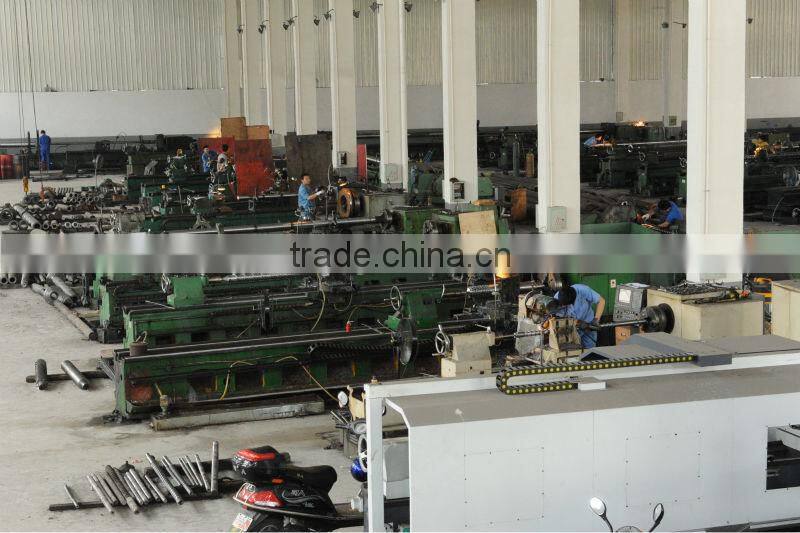

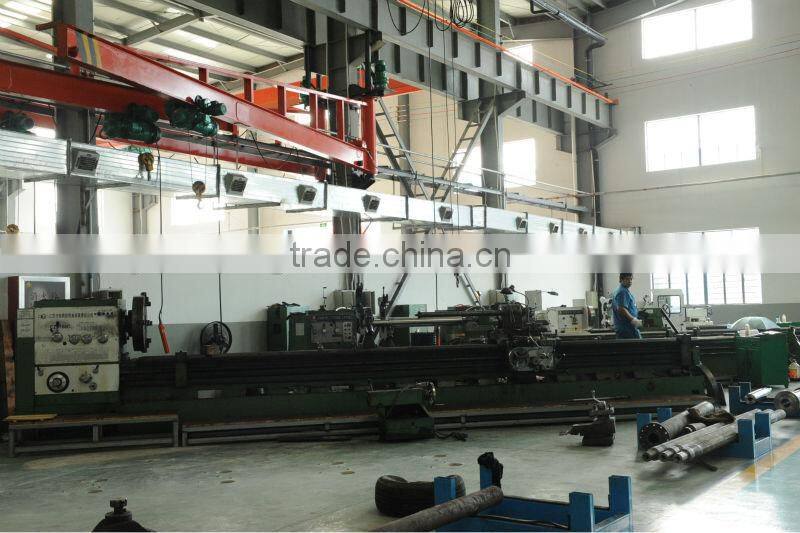

workshop and equipments



Single Injection Screw Barrel ManufactureSingle Injection Screw Barrel ManufactureSingle Injection Screw Barrel Manufacture



Screw application for plastic



Acrylonitrile Butadiene StyreneABS
Polymethyl Methacrylate-StyreneMMS
Methyl Methacrylate-ButadieneMMB
PolycarbonatePC
Polyoxymethylene(Polyformaldehyde)POM
Cellulose NitrateCN
Cellulose AcetateCA
Ethyl CelluloseEC
Poly(Ethylene Terephthalare)PET
Poly(Butylene Terephthalare)PBT
Poly(Vinyl Chloride)PVC
PolytetrafluoroethylenePTFE
Perfluorinated Ethylene-Propylene CopolymerFFP
PolychlorctrifluoreethylenePCTFE



Butadiene StyreneBS(BDS)
PolypropylenePP
Chlorinated PolypropylenePPC
Low Density PolyethyleneLDPE
High Density PolyethyleneHDPE
Ethylene-Vinyl AcetateEVA
Polyamide-6PA6
Polyamide-66PA66

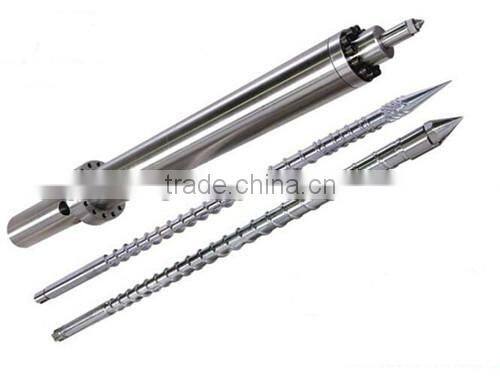

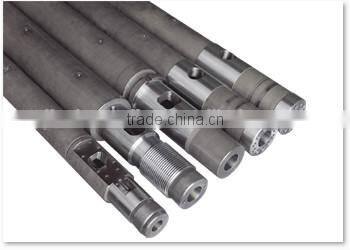

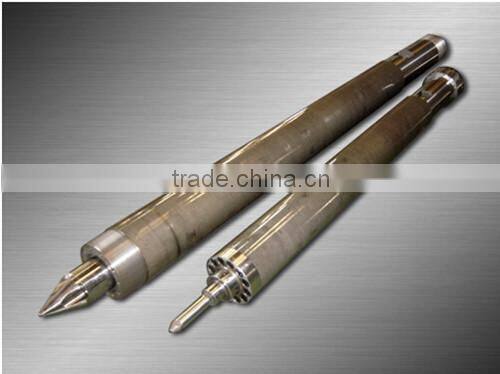

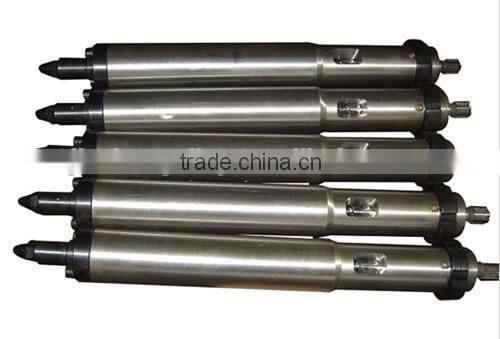

Picture for Injection screw barrel for blowing machine



Single Injection Screw Barrel Manufacture
Single Injection Screw Barrel Manufacture
Single Injection Screw Barrel Manufacture
Single Injection Screw Barrel Manufacture
Single Injection Screw Barrel Manufacture





Packaging & Shipping



PortNingBo/Shanghai/Other China PortSingle Injection Screw Barrel Manufacture

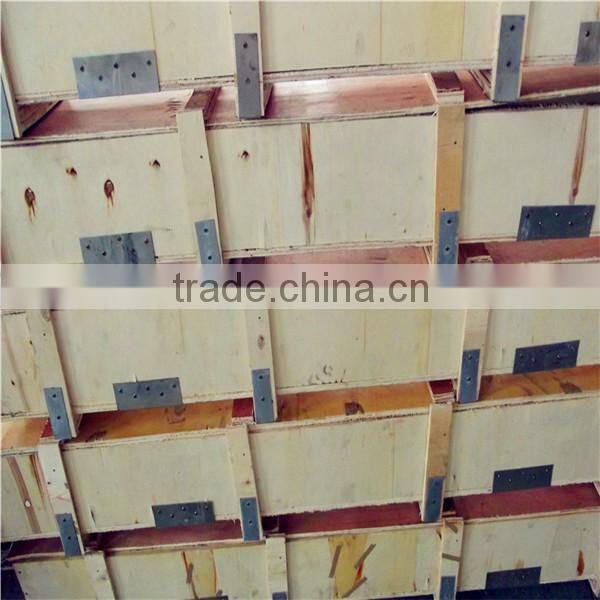

Packingscrew barrel are wrapped in a layer of plasticfilm

then will be fixed in a strong wooden case

Volume0.5m3-5m3 one set
Delivery30 working days after the deposit







Company Information



Jinsheng Bimetallic Plastic Machinery Factory was established in 2004. It was developed as a large-scale and comprehensive company specializing in manufacturing the kinds of Screws and Barrels in Zhoushan.



Such as bimetallic barrel & screw ,conical twin screws & barrels ,parallel twin screws & barrels,single screw &barrel , rubber screw & barrel ,planetary screw & barrel and  components apply for injection molding machine and extruder machine .



Single Injection Screw Barrel Manufacture









FAQ



1. Q: Where is your company ?
A: We are in Jintang Town,Zhoushan City,Zhejiang Province.

2. Q: Are you factory or trading company ?
A: We are factory have over 10 year history.

3. Q: Can I get some samples?
A: We are honored to offer you samples for quality check after comfirmed the big quantity.

4. Q: Do you have the products in stock?
A : We have stock for some general size products .

5. Q: What’s the delivery time?
A: It usually takes about 20 working days to produce an order . But the exact delivery time might be different for different orders.

6. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully carefully examined before it's packed for shipment.





Our Services

 Jinsheng also can supply other type screw and barrel as buyer request:



1) Bimetallic Screw and Barrel
2) Injection Screw and Barrel
3) Extruder Screw and Barrel
4) Conical Twin Screw and Barrel
5) Parallel Twin Screw and Barrel
6) Rubber Screw and Barrel
7) Planetary Screw and Barrel
8) Components
