Specifications
1) Material: 38Crmoala2) High quality with 1 year guarantee
3) With competitive price
4) element for twin screw extruder
Product Name: Parallel twin screw element/segment for extruder
1) Description:
1.Screw element is the main wearing parts and accessories of parallel twin screw extruder. The extrusion material quality stability depends entirely on the threaded element is good or not.With the help of computer,our professional designers has designed accurate scientific and rational screw components which are highly self-cleaning properties.It convenient to the users to clean screw better.The mating block has excellent meshing, mixing and glass fiber shear effect.
2.High speed tool steel W6Mo5Cr4V2 and Nitrided steel 38CrMoAlA were used in the Durable threadedsleeve and the kneading block as their raw materials.It can make sure that customers of the extrusion machine downtime to a minimum.
3.Inner hole shape: involute , six spline , single spline, inner hexagon, cruciate spline .We also can supply Products of special specifications according to the special requirements of customers.
2) Technical Parameter
| Depth of nitration | 0.5-0.8mm |
| Hardness of nitration | 950-1020HV |
| Straight of screw | 0.015MM |
| Fragility of nitration | Less than grade 1 |
| Roughness of surface | Ra 0.4um |
| Depth of alloy layer | 2-3mm |
| Hardness of alloy | HRC58-62 |
| Hardness after hardening and tempering | HB260-290 |
| Hard chrome plating thickness | 0.03-0.08mm |
| Hardness of hard chrome plating | ≥950HV |
3) Application material
*General Plastics
*ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc
*PA + GF(Glass Fiber)
*Flame-resistant Reinforced Plastics
*Modified Engineering Plastics
*All kinds of Mixed Recycled Material(in Scrap or Granule),etc

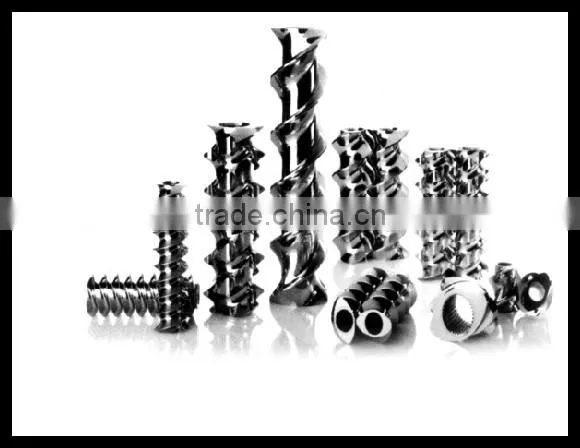

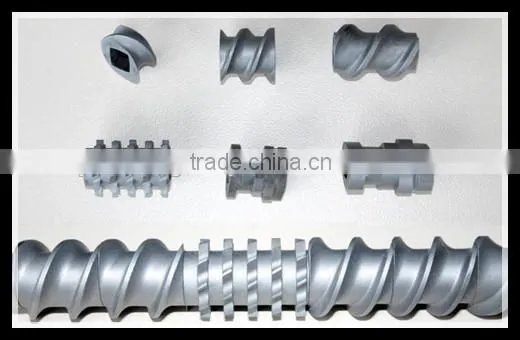

4) Twin screw element picture
5) Product Flow
Jinsheng Bimetallic is over 10 years to make the screw and barrel,our main product is Bimetallic screw and barrel,it is first company have this equipment to handle bimetallic in zhoushan.
also with conical twin screw and barrel ,parallel twin screw and barrel,single screw and barrel apply for injection molding machine and extrusion machine.
Working Shop
Jinsheng have strict system to manage the product,each one will be inspected by related inspector,all qualified can be shipment.
Packing for injection machine screw parts
1) Wooden case package
2) Plastic film package
3) Suitable to transportation
4) As buyer request
5) One piece into one package
6) Products weight and valume according to screw size
Services
1) Jinsheng can mapping the drawing to customer request
2) Screw structure and compression ratio can be designed according to different products & different clamping force requirement.
3) Jinsheng have more than 1 year guarantee
What is Jinsheng feature?
1) With high wear resistance and anti-corrosion
2) Through processing ,it can be prolong use life for screw and barrel
3) Cold and heat spraying for hard metal process
4) High-frequency quenching technology
5) Advanced nitriding technology
6) Processing and manufacturing process for Bimetallic
7) Lowest price, high quality, delivery on time
Now we export to South-east Asia, Europe, America, Middle east countries etc. At the same time, we provide the OE services for hundreds of customer for domestic market.
